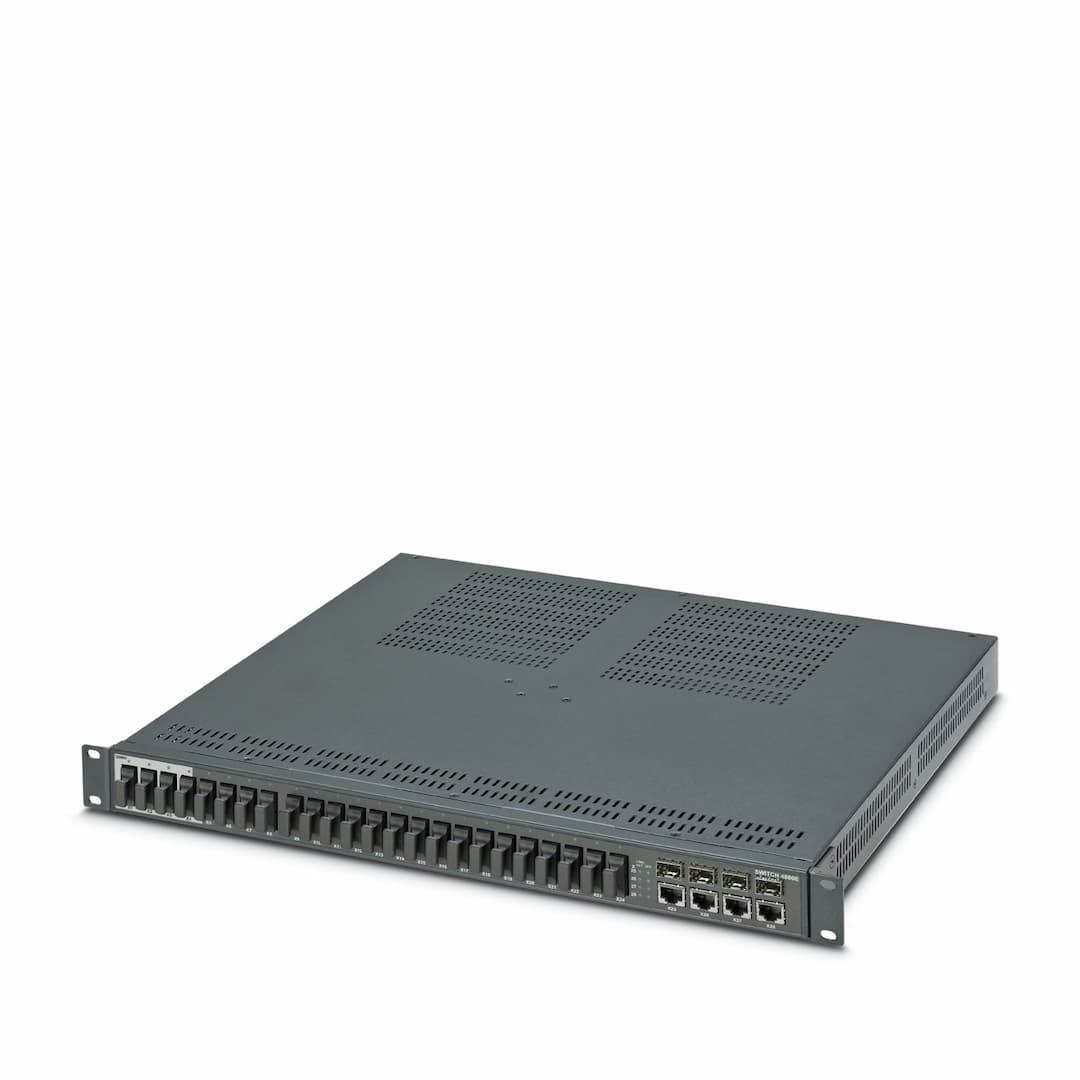

FL SWITCH 4800E-24SFX-4GC
Product ID:21950
Updated: 2026/7/29
Key Features
- 124 SFP Ports for Versatile Connectivity: Supports 24 SFP ports for flexible and reliable network connections.
- 2100 Mbps Full Duplex Transmission: Ensures fast and efficient data communication across networks.
- 3Up to 40 km Transmission Length: Compatible with SFP modules for transmission lengths up to 40 km.
- 4IEC 61850-3 and IEEE 1613 Compliance: Meets stringent industrial standards for reliability and performance.
- 5Redundant Voltage Supply LEDs: Features LEDs for redundant voltage supply, link, and activity status per port.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 442 mm | Height | 44 mm |
| Depth | 375 mm | Note on application | Only for industrial use |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Mounting type | Rack mount, includes brackets |
| Number of interfaces | 24 | Connection method | SFP |
| Transmission speed | 100 Mbps (full duplex) | Transmission physics | Depending on the SFP module |
| Transmission length | up to 40 km (Depending on the SFP module used) | Signal LEDs | Data receive, link status |
| No. of channels | 24 (SFP ports) | Product type | Switch |
| Product family | Managed Switch 4000 | Type | Block design |
| MTTF | 8.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
202.2 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
244.9 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
| Redundancy | ERR (Extended ring redundancy) | Status and diagnostic indicators | LEDs: U |
| Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Transmission medium | Copper
depending on the SFP module used |
| Power supply connection | From FL SWITCH 4800E-P... | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
| Standards/specifications | IEC 61850 | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
| Noise emission | EN 61000-6-4 | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
| Status display | LEDs: U |
Specifications may be subject to change without notice
