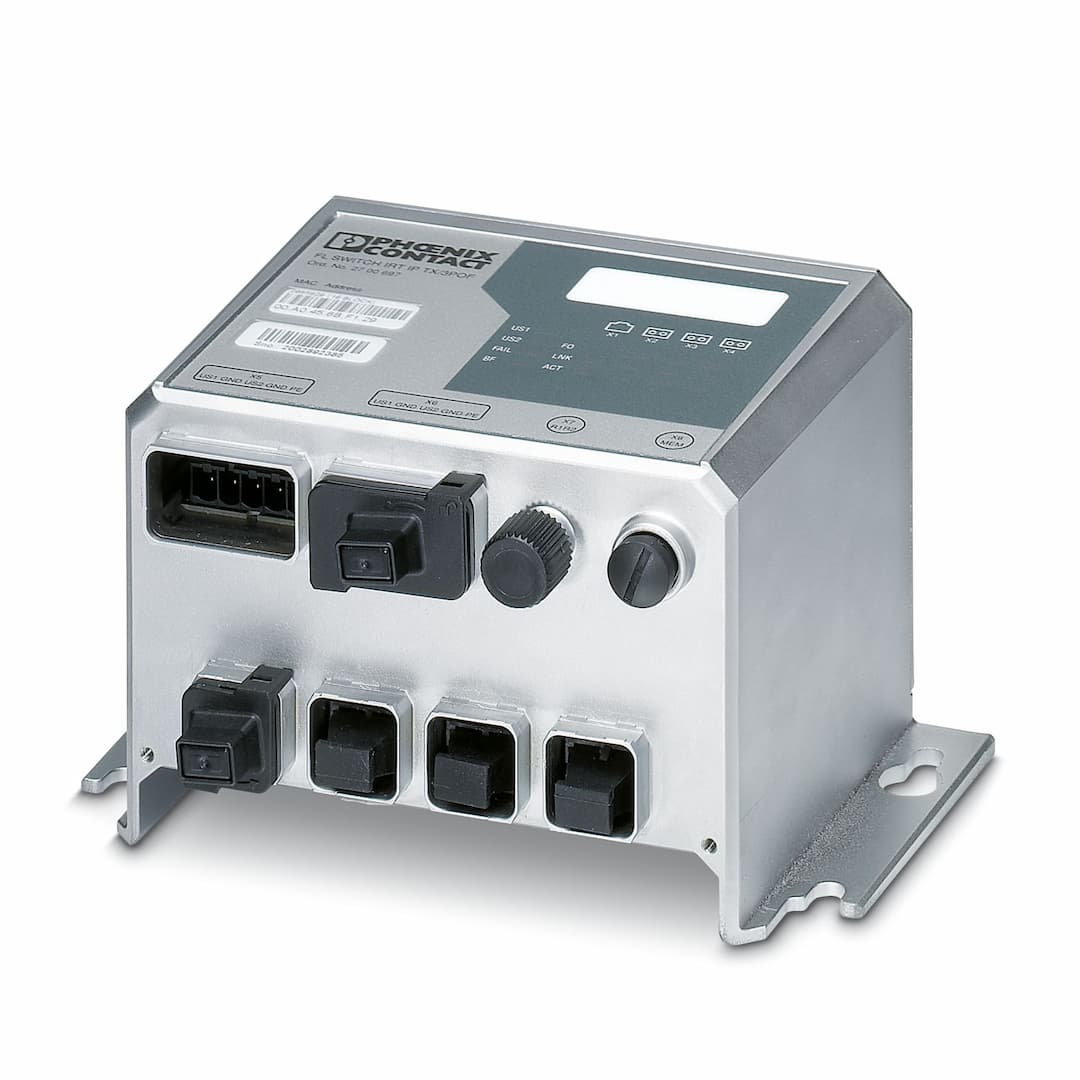

FL SWITCH IRT IP TX/3POF
Product ID:19005
Updated: 2026/4/6
Key Features
- 1Industrial-grade reliability: Built with ERTEC 400 architecture for optimal integration and diagnostics.
- 2Versatile connectivity: Features one 10/100 Mbps RJ45 port and three 100 Mbps POF SC-RJ ports.
- 3Durable design: Offers IP67 protection for harsh environments.
- 4Configurable via PROFINET: Parameterization and diagnostics can be performed via the PROFINET protocol from any controller.
- 5Advanced management options: Supports LLDP for topology detection, DCP for IP address assignment, and SNMP for monitoring with standard IT tools.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 176 mm | Height | 112 mm |
| Depth | 99 mm | Drill hole spacing | 155 mm |
| Housing material | Zinc die-cast, surface bronzed and nickel-plated | Mounting type | Wall mounting |
| Connection method | RJ45 | Transmission speed | 10/100 Mbps |
| Transmission physics | Copper | Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 1 (RJ45 port) |
| Connection method | POF SC-RJ | Transmission speed | 100 Mbps (full duplex) |
| Transmission physics | POF-SCRJ | Transmission length | up to 100 m (depending on the fiber used) |
| Wavelength | 650 nm | No. of channels | 3 (SC-RJ) |
| Product type | Switch | Product family | Managed Switch IRT |
| Type | Stand-Alone | MTTF | 254.18 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
110.85 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
23.82 Years (SN 29500 standard, temperature 55°C, operating cycle 100%) |
| Article revision | 03 | Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
| Signal contact control voltage | 24 V (typical) | Signal contact control current | typical |
| PROFINET conformance class | Conformance-Class C | PROFINET device function | PROFINET device |
| PROFINET specification | PROFINET-IO RT/IRT, Spec. 2.x | Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) | Supported browsers | Internet Explorer 5.5 or higher |
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. | Current consumption | 270 mA (at 24 V DC) |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED
ACT Receiving/sending telegrams Green LED
BF Bus errors LED red
FO Orange LED | Maximum power dissipation for nominal condition | 6.24 W |
| Test section | Between the Ethernet ports 1500 V AC 1 min
24 V supply (US) / FE 500 V DC 1 min | Transmission medium | Copper |
| Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
| Max. current consumption | 260 mA | Typical current consumption | 260 mA (at U |
| Current consumption | 270 mA (at 24 V DC) | Signal contact control voltage | 24 V (typical) |
| Signal contact control current | typical | Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 32 V DC (including ripple) | Connection method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
| Degree of protection | IP67 | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 55022 (emitted interference) Class A
EN 61000-4-2 (ESD) Criterion A
EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m
EN 61000-4-5 (surge) Criterion B
EN 61000-4-4 (EFT burst) Criterion A, 2.2 kV
EN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A, Field intensity: 10 V/m
EN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m
60950-1 |
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. | Supported browsers | Internet Explorer 5.5 or higher |
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
Specifications may be subject to change without notice
