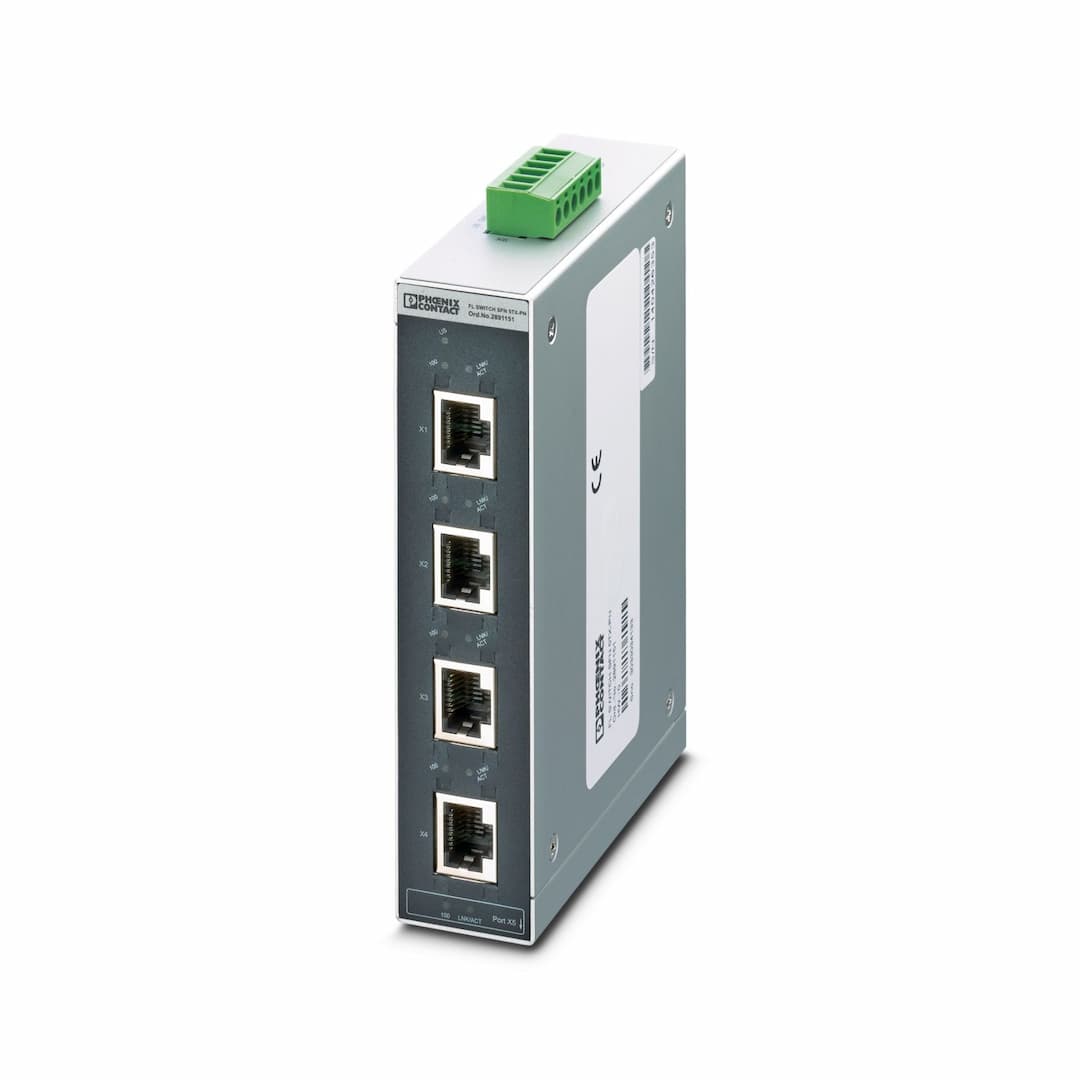

FL SWITCH SFN 5TX-PN
Product ID:19486
Updated: 2026/8/1
Key Features
- 1Industrial-grade reliability: Built for harsh environments with a robust design.
- 2Easy installation: Auto negotiation and autocrossing detection simplify setup.
- 3Advanced diagnostics: Local diagnostic indicators with LEDs for quick troubleshooting.
- 4Network security: Multicast filter blocks PROFINET PTCP-Delay traffic for secure operations.
- 5Versatile connectivity: Supports 10/100 Mbps on all RJ45 ports with cable locking and port blocking features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 30 mm | Height | 130 mm |
| Depth | 100 mm | Housing material | Aluminum |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair | No. of channels | 5 (RJ45 ports) |
| Product type | Switch | Product family | Unmanaged Switch SFN |
| Type | Block design | MTTF | 192.9 Years |
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | PROFINET conformance class | Conformance-Class A |
| Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Maximum power dissipation for nominal condition | 2.16 W |
| Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
| Supply voltage range | 9 V DC ... 32 V DC | Residual ripple | 3.6 V |
| Typical current consumption | 90 mA (at U | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Status display | LEDs: U |
Specifications may be subject to change without notice
