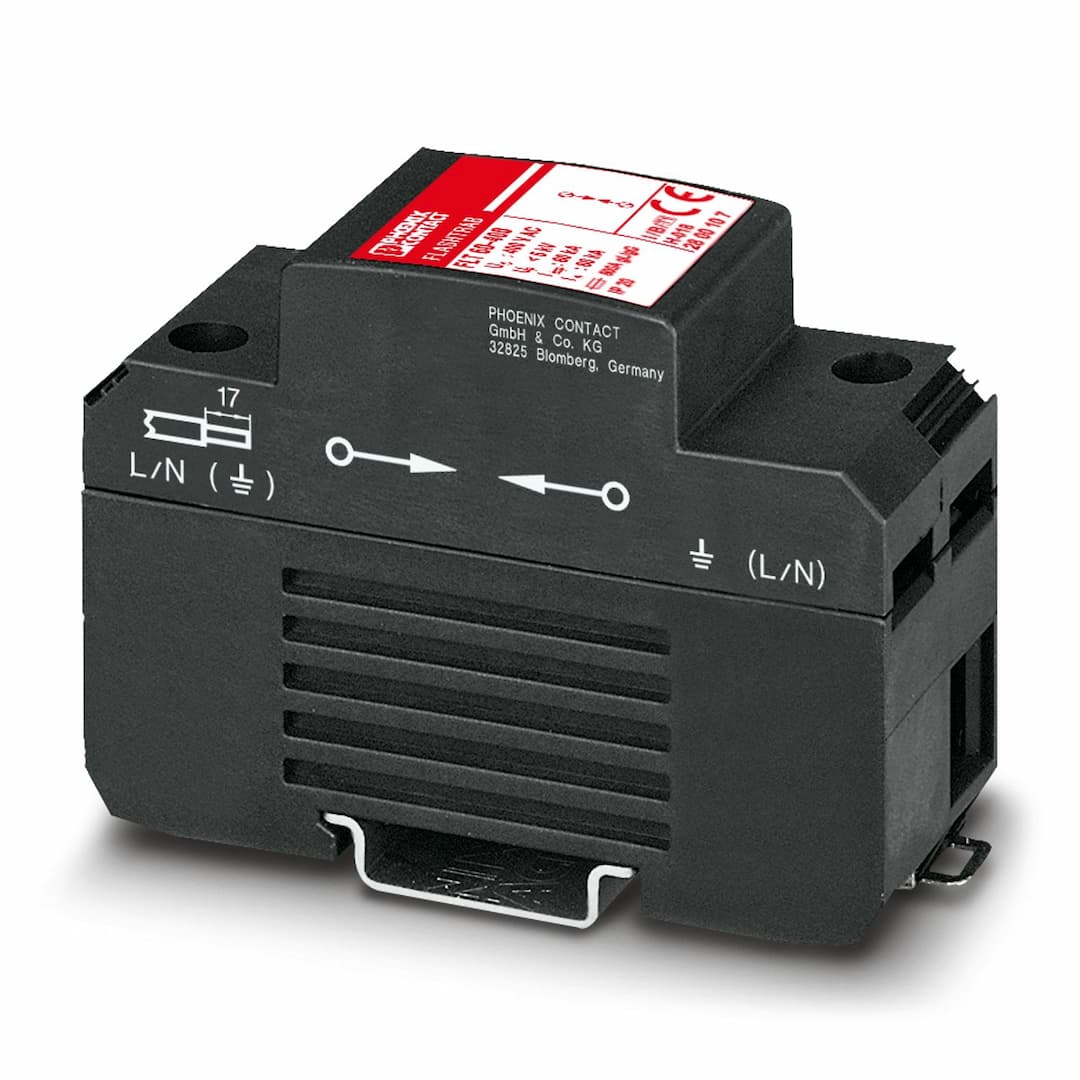

FLT 60-400/25
Product ID:17360
Updated: 2026/8/4
Key Features
- 1Handles surge currents up to 60 kA with impulse form 10/350 µs.
- 2Provides a practically static ignition characteristic for ignitions caused by surge voltages.
- 3Only 35.5 mm wide, making it ideal for space-constrained applications.
- 4Protects against both remote strikes and direct lightning strikes, ensuring comprehensive protection.
- 5Quenches short circuit currents effectively, reducing the load on equipment fuses connected in the circuit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Combination type | IEC test classification | I
T1 |
| EN type | T1 | IEC power supply system | TN-S
TN-C
TT |
| Type | DIN rail module, one-piece | Surge protection fault message | none |
| Nominal voltage U | 230 V AC (400 V AC) | Width | 35.5 mm |
| Height | 90 mm | Depth | 65.5 mm |
| Horizontal pitch | 2 Div. | Housing material | PA-GF |
| Open side panel | No | Direction of action | 1L-N/PE |
| Ambient temperature (operation) | -40 °C ... 85 °C | Permissible humidity (operation) | ≤ 95 % |
| Mounting type | DIN rail: 35 mm |
Specifications may be subject to change without notice
