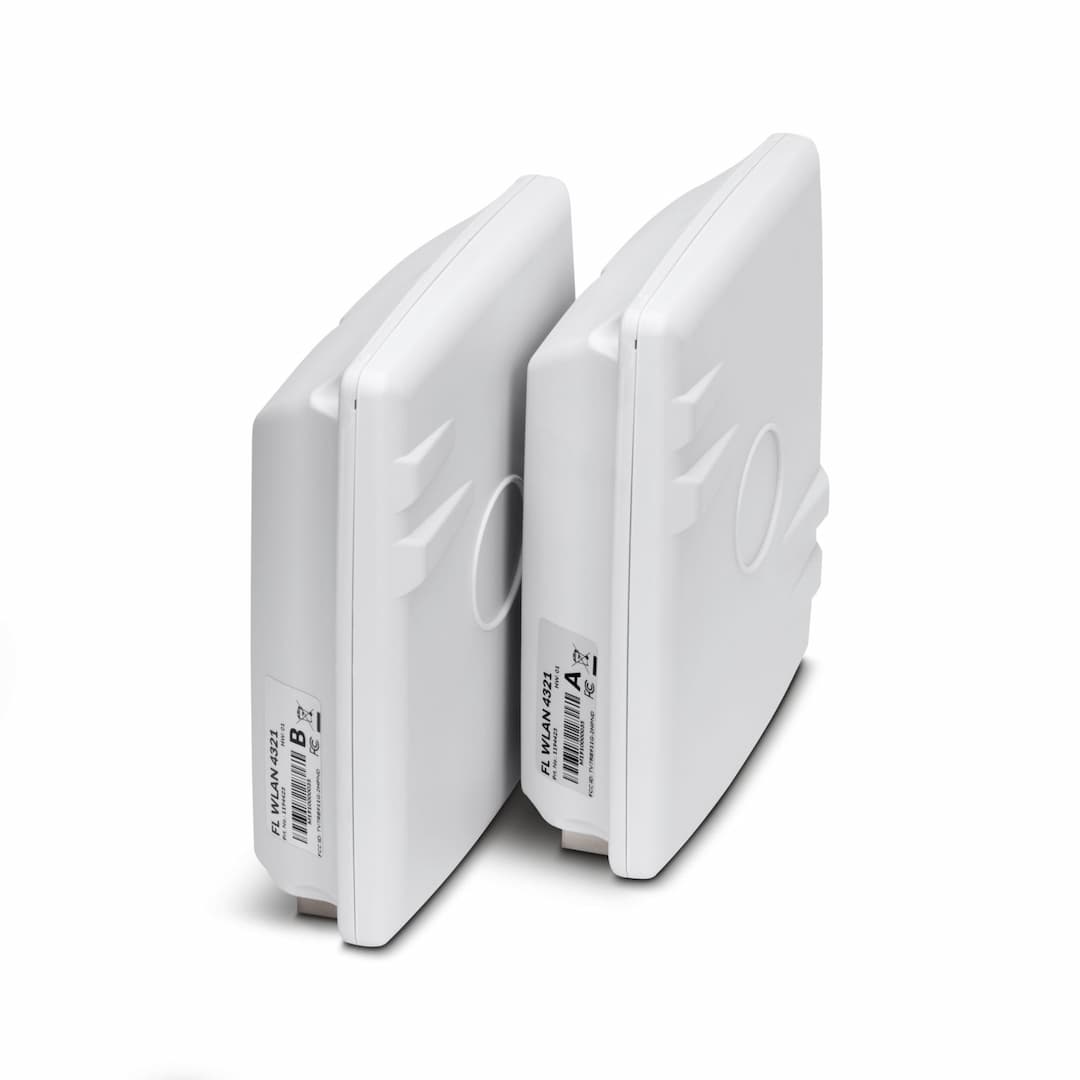

FL WLAN 4321
Product ID:21860
Updated: 2026/4/3
Key Features
- 1High-Speed Communication: Wireless Ethernet communication up to 300 Mbps.
- 2IP67 Protection: Rugged design with IP67 protection for harsh environments.
- 3Easy Deployment: Simple setup with built-in alignment LEDs.
- 4Point-to-Point Connectivity: Pre-configured for point-to-point connections up to two miles.
- 5Powerful Power Supply: Powered by passive PoE (8-30VDC) for reliable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Wireless module |
| Type | Stand-Alone | Number | 1 |
| Type | IEEE 802.11 b/g/n 5 GHz to 300 Mbps | Assembly note | Permanently installed |
| Supply voltage | 120 V AC (converted to 24 V DC via passive POE adapter (included)) | Current consumption | 417 mA (maximum (at 24 V)) |
| Power consumption | 11 W (maximum (at 24 V)) | Number | 1 |
| Connection method | permanently installed | Note on the connection method | Dual polarized: Horizontal and vertical |
| Gain | 11 dBi | Security | 256-bit AES-CCM Encryption
WPA2 |
| Wireless licenses | USA, Canada | Country support | USA
Canada |
| Number of interfaces | 1 () | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Copper | Number of interfaces | 1 () |
| Designation | Wireless LAN | Antenna connection method | (Internal) |
| Frequency band | 5 GHz | Wireless standard | IEEE 802.11 (Wi-Fi Alliance)
b (Wi-Fi 1)
g (Wi-Fi 3)
n (Wi-Fi 4) |
| Number of wireless interfaces | 1 IEEE 802.11 b/g/n | Wireless modules that can be connected | 1 () |
| Width | 185 mm | Height | 63.5 mm |
| Depth | 185 mm | Note on dimensions | Outside dimensions |
| Color | white | Housing material | Polystyrene |
| Degree of protection | IP67 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -45 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Standards/regulations | FCC Part 15B |
| Test result | Class A | Standards/regulations | FCC Part 15C |
| Mounting type | Mast mounting | Assembly note | Internal antenna |
Specifications may be subject to change without notice
