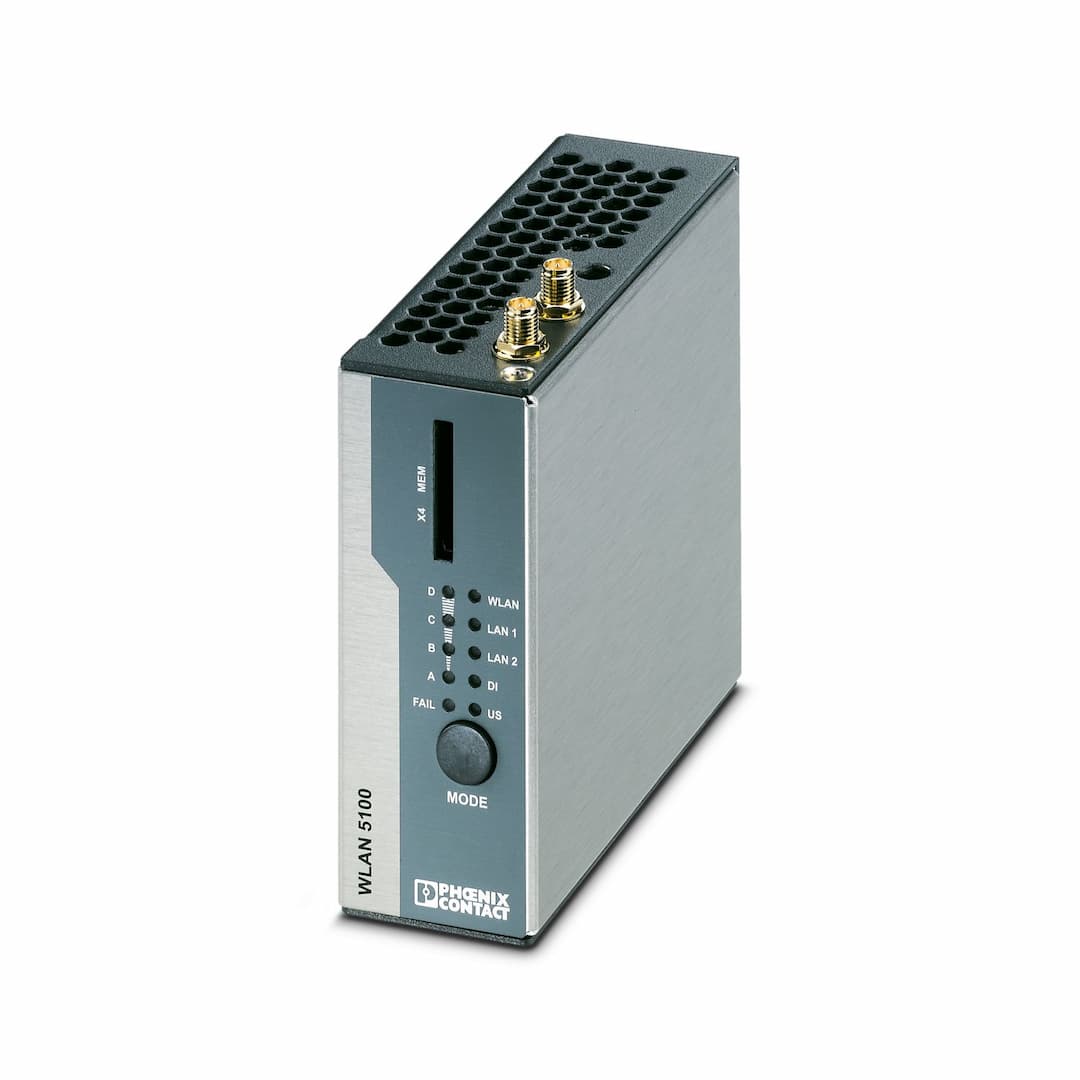

FL WLAN 5111
Product ID:21828
Updated: 2026/4/7
Key Features
- 1High-Speed Connectivity: Achieve 300 Mbps data rate for efficient network operations.
- 2Compact Design: Ideal for DIN rail mounting, perfect for industrial settings.
- 3Dual Frequency Support: Operate on both 2.4GHz and 5GHz frequencies for flexibility.
- 4Easy Installation: Requires only two antenna connections (2x2 MIMO) for simplified setup.
- 5Reliable Performance: Suitable for access point or client mode, ensuring robust network connectivity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Type | Stand-Alone |
| Article revision | 05 | Pollution degree | 2 |
| Number | 1 | Type | IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz to 300 Mbps |
| Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 4.8 W |
| Connection method | Via COMBICON | Supply voltage | 24 V DC |
| Supply voltage range | 10 V DC ... 36 V DC | Supply current | 200 mA (at 24 V DC) |
| Number | 2 | Operating modes | Access Point / Client Adapter / Repeater |
| Basic functions | SNMP (V2/V3), CLI, WPS, DHCP, DCP, BootP, HTTP, HTTPS, Syslog, SD card, dual FW image, 1 x DI, 1 x DO, 2 x Ethernet 10/100 Mbit, auto crossover, auto negotiation, MODE button | Configuration | Cluster management, web-based management, WPS |
| Security | 802.11i
WPA PSK (preshared key)
WPA2
AES
TKIP
Supports 802.1X/RADIUS
MAC filter | Wireless licenses | USA, Canada |
| Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps | Transmission physics | Copper |
| Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
| No. of channels | 2 (RJ45 ports) | Designation | Wireless LAN |
| Antenna connection method | RSMA (female) | Number | 2 |
| Frequency band | 2.4 GHz
5 GHz | Wireless standard | WLAN
IEEE 802.11
a
b
g
n |
| Transmission power | max. 20 dBm (with two antennas) | Number of wireless interfaces | 1 IEEE 802. 11 a/b/g/n |
| Width | 40 mm | Height | 109 mm |
| Depth | 109 mm | Note on dimensions | Height with antenna socket, without antenna cable |
| Color | silver grey | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C (extended temperature range on request) | Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
| Discharge in air | ± 8 kV | Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 | Comments | 10 V/m |
| Standards/regulations | EN 61000-4-4 | Comments | ±2.2 kV |
| Standards/regulations | EN 55022 | Test result | Class B |
| Mounting type | DIN rail mounting | Assembly note | Antennas not included in scope of supply |
Specifications may be subject to change without notice
