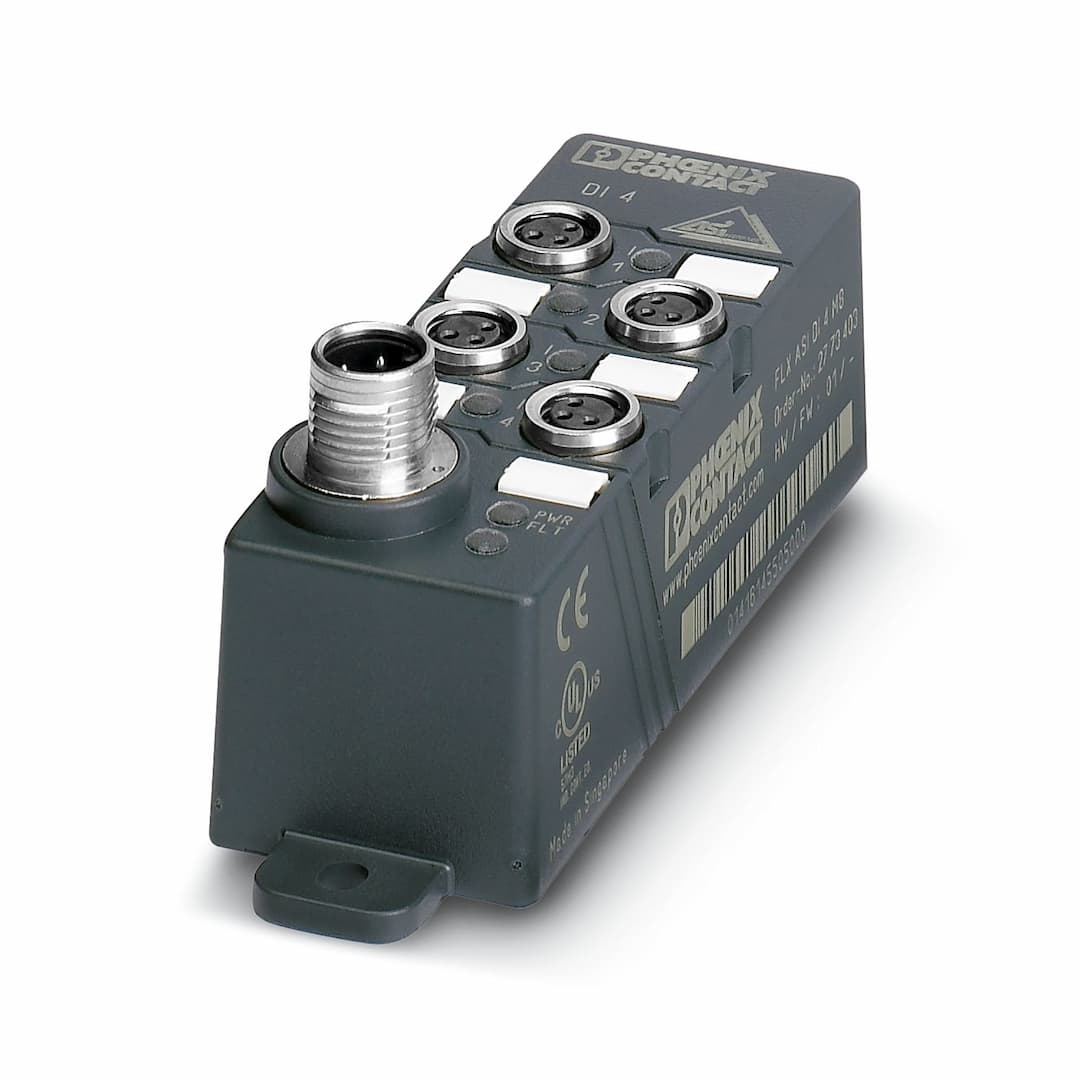

FLX ASI DI 4 M8
Product ID:17393
Updated: 2026/8/4
Key Features
- 1IP67 Protection: Withstands harsh industrial environments, ensuring reliable operation.
- 2M8 and M12 Connectors: Flexible connection options for easy integration with digital sensors.
- 3Optimized Mounting Profile: Designed for 30 mm mounting profiles, enhancing installation efficiency.
- 4High-Speed Data Transmission: Supports transmission speeds of up to 167 kbps for efficient data transfer.
- 5Compliance with Industrial Standards: Meets EMC Class A standards and is UL Listed for safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 30 mm | Height | 26 mm |
| Depth | 103 mm | Drill hole spacing | 93 mm |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | black |
| Connection method | M12 connector (A-coded) | Designation connection point | AS-i |
| Number of positions | 2 | Transmission speed | 167 kbps |
| ID code (dec.) | 0 | ID code (hex) | 0 |
| Input name | Digital inputs | Description of the input | IEC 61131-2 Type 2 |
| Number of inputs | 4 | Connection method | M8 connector |
| Connection technology | 2-, 3-conductor | Product type | I/O component |
| Product family | Fieldline | Type | Block design |
| Mounting position | any | No. of channels | 4 |
| Article revision | 02 | Connection method | M8 connector |
| Ambient temperature (operation) | -25 °C ... 70 °C | Degree of protection | IP65/IP67 |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | direct screw connection
Wall mounting | Mounting position | any |
Specifications may be subject to change without notice
