In Stock

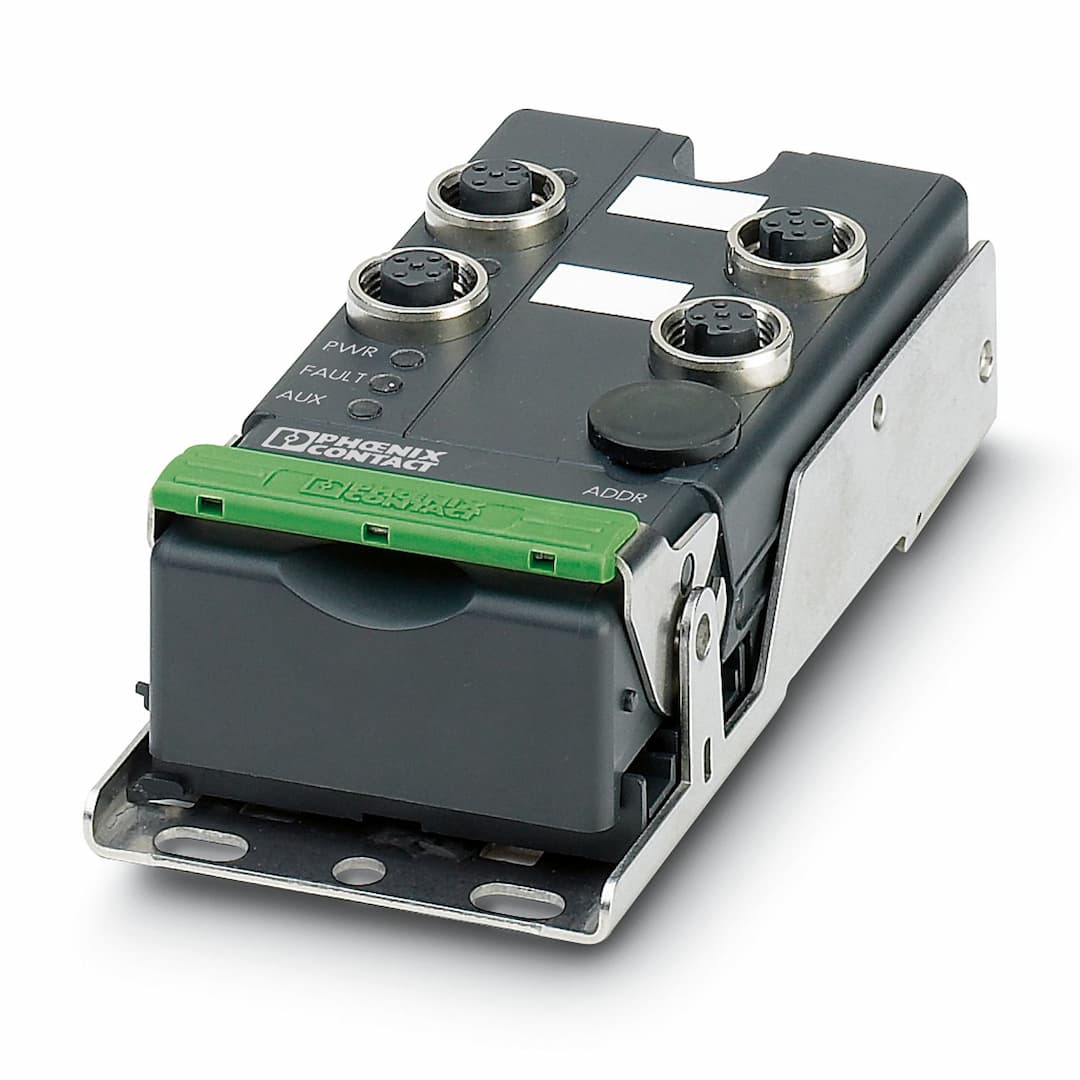

FLX ASI DIO 2/2 M12-2A

Product ID:18713

Updated: 2026/8/2

Key Features

1Utilizes SPEEDCON fast locking system for secure and efficient connections.
2Ensures reliable operation in harsh environments with robust protection against dust and water.
3Designed for direct connections, enhancing overall system efficiency and speed.
4Compatible with 24 V DC power supply, suitable for various industrial automation applications.
5Supports AB slave configuration for seamless integration into AS-i networks.

Need a quote? Enter your quantity and get pricing fast.

Qty

Detailed engineering parameters

Parameter	Value	Parameter	Value
Width	58 mm	Height	118 mm
Depth	35 mm	Drill hole spacing	108 mm
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Color	black
Connection method	Flat-ribbon cable penetration technique	Designation connection point	AS-i
Number of positions	4	Transmission speed	167 kbps
ID code (dec.)	10	ID code (hex)	A
Input name	Digital inputs	Description of the input	IEC 61131-2 Type 2
Number of inputs	2	Connection method	M12 connector
Connection technology	2-, 3-conductor	Output name	Digital outputs
Connection method	M12 connector	Connection technology	2-conductor
Number of outputs	2	Maximum output current per channel	2 A
Maximum output current per module / terminal block	4 A	Product type	I/O component
Product family	Fieldline	Type	Block design
Mounting position	any	No. of channels	4
Connection method	M12 connector	Ambient temperature (operation)	-25 °C ... 70 °C
Degree of protection	IP65/IP67	Ambient temperature (storage/transport)	-25 °C ... 85 °C
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)	Mounting type	Screw on directly or on DIN rail Wall mounting
Mounting position	any

Specifications may be subject to change without notice
