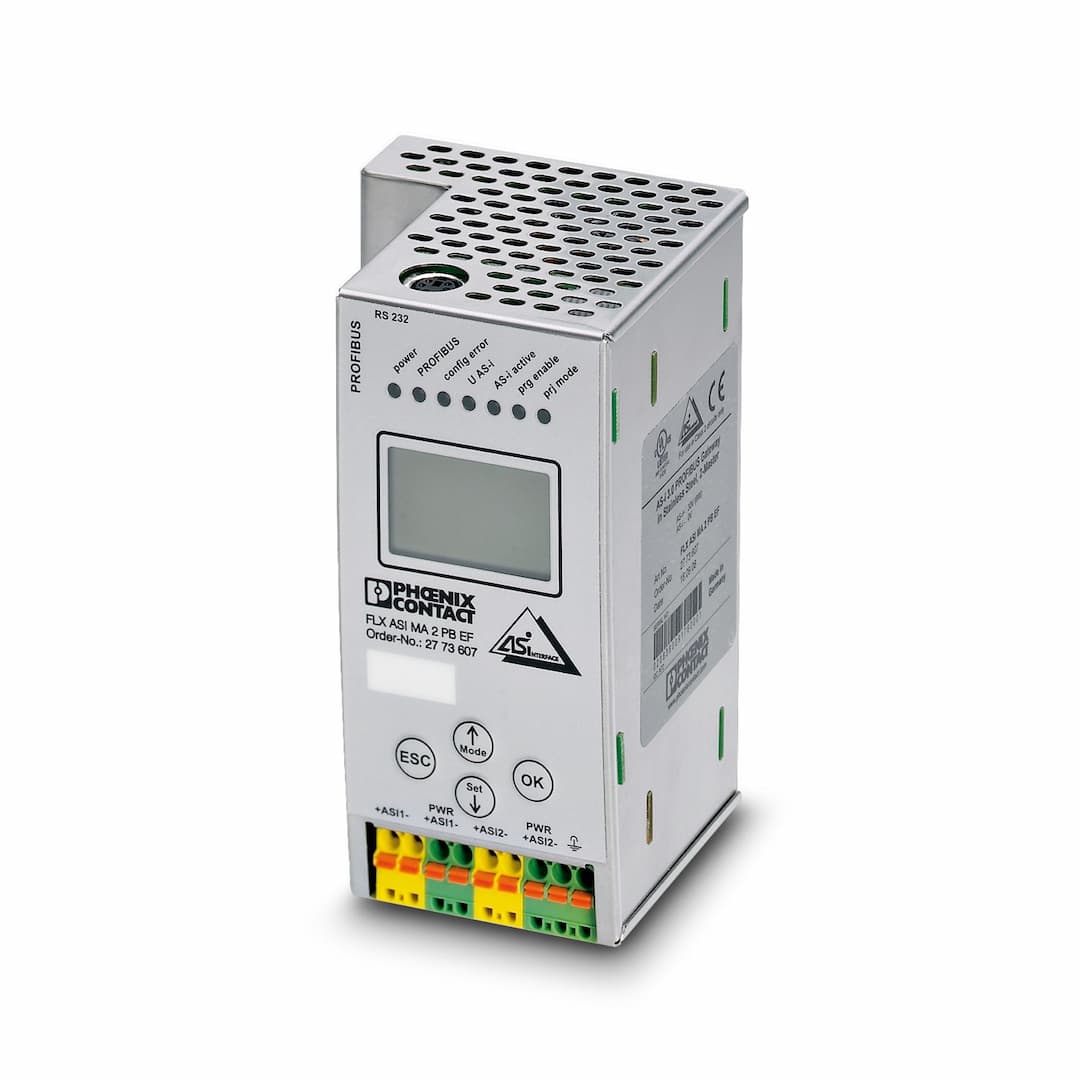

FLX ASI MA 2 PB EF
Product ID:19988
Updated: 2026/7/31
Key Features
- 1Easy Integration: Seamlessly connects two AS-Interface networks into a PROFIBUS DP system.
- 2Robust Design: Rugged, high-grade steel housing with IP20 degree of protection.
- 3Advanced Diagnostics: Extensive parameterization and diagnosis through a multi-line LCD display.
- 4Versatile Configuration: Operates AS-Interface slaves with expanded addressing, compatible with older specifications.
- 5User-Friendly Interface: Configured using "Mode" and "Set" keys with a 7-segment display for easy addressing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Gateways/Proxies |
| Product family | Fieldline | Type | Block design |
| Monitored function | Addresses, error messages | Optical representation | Via four-line LCD |
| Local diagnostics | Addresses, error messages Via four-line LCD
power Operating voltage, electronics module (UL) Green LED
U AS-i Operating voltage AS-i (U ASI) Green LED
AS-i active AS-i transmission (ASI ACTIVE) Green LED
prg enable Programming mode active, automatic slave programming possible Green LED
prj mode Configuration mode active (PRJ Enable) Yellow LED
fault AS-i configure error (CONFIG ERR) LED red
PROFIBUS Device/network status Green LED | Max. current consumption | 200 mA |
| Typical current consumption | approx. 200 mA (from AS-i circuit 1)
approx. 70 mA (from AS-i circuit 2) | Connection method | Spring-cage connection with direct connector-in method |
| Bus system | PROFIBUS DP | Connection method | D-SUB 9 plug |
| Transmission speed | 9.6 kbps ... 12 Mbps | Transmission physics | PROFIBUS-DP-compliant copper cable |
| Bus system | AS-Interface | Connection method | 2-pos. COMBICON connector |
| Transmission physics | Copper | Bus system | RS-232 |
| Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) | Width | 75 mm |
| Height | 120 mm | Depth | 83 mm |
| Color | white aluminum | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
