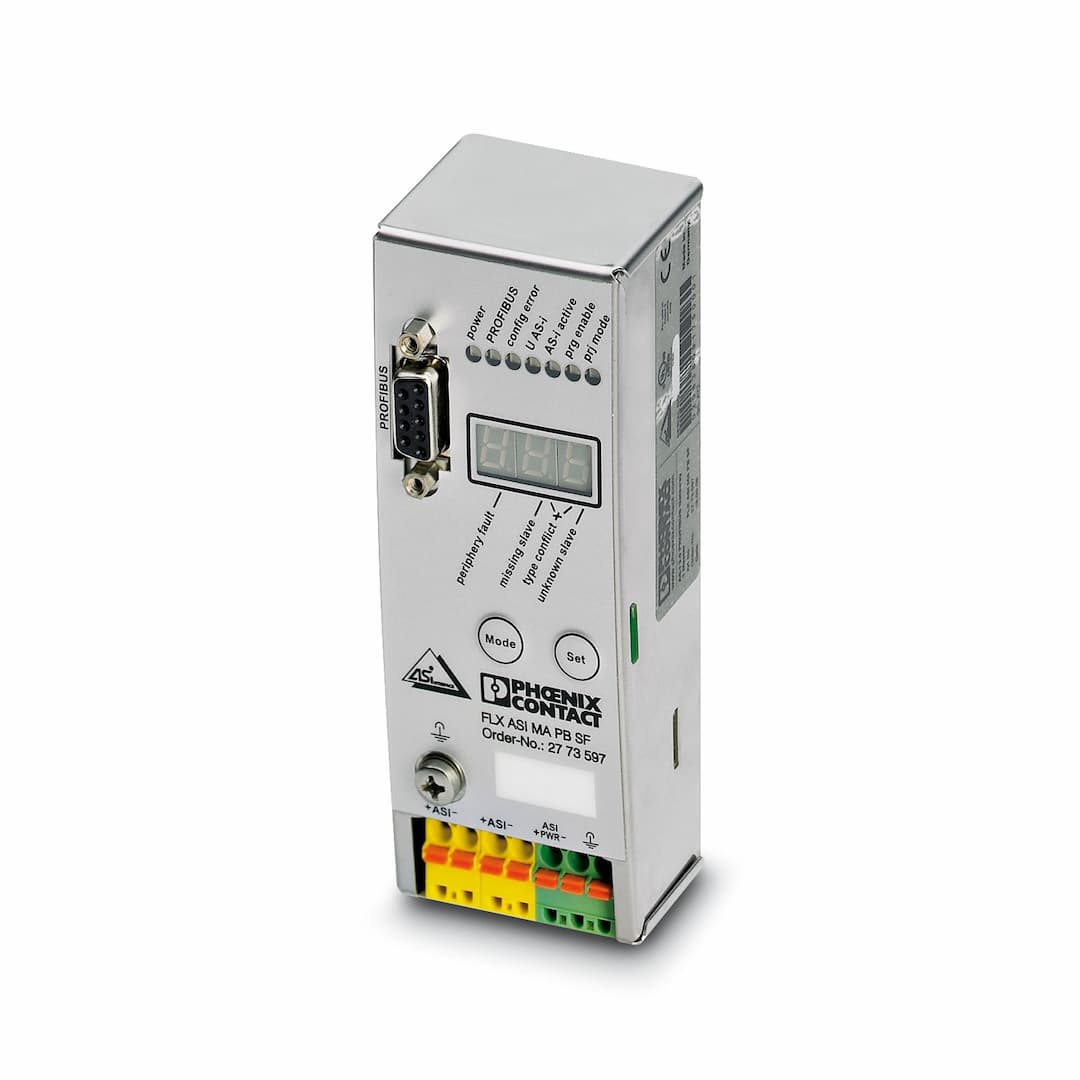

FLX ASI MA PB SF
Product ID:21611
Updated: 2026/7/29
Key Features
- 1Easily integrates AS-Interface networks into PROFIBUS DP systems.
- 2Features a rugged, high-grade steel housing with IP20 degree of protection.
- 3Supports expanded addressing for AS-Interface slaves.
- 4Equipped with "Mode" and "Set" keys and a 7-segment display for easy configuration.
- 5Meets AS-Interface specification 3.0 and ensures long-term reliability with unlimited environmentally friendly use period.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Gateways/Proxies | Product family | Fieldline |
| Type | Block design | Monitored function | Addresses, error messages |
| Optical representation | 7-segment display | Local diagnostics | Addresses, error messages 7-segment display
power Operating voltage, electronics module (UL) Green LED
U AS-i Operating voltage AS-i (U ASI) Green LED
AS-i active AS-i transmission (ASI ACTIVE) Green LED
prg enable Programming mode active, automatic slave programming possible Green LED
prj mode Configuration mode active (PRJ Enable) Yellow LED
fault AS-i configure error (CONFIG ERR) LED red
PROFIBUS Device/network status Green LED |
| Max. current consumption | 300 mA | Typical current consumption | approx. 200 mA (from the AS-i network) |
| Connection method | Spring-cage connection with direct connector-in method | Bus system | PROFIBUS DP |
| Connection method | D-SUB 9 plug | Transmission speed | 9.6 kbps ... 12 Mbps |
| Transmission physics | PROFIBUS-DP-compliant copper cable | Bus system | AS-Interface |
| Connection method | 2-pos. COMBICON connector | Transmission physics | Copper |
| Width | 45 mm | Height | 120 mm |
| Depth | 44 mm | Color | white aluminum |
| Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Shock | in accordance with EN 61131-2 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
