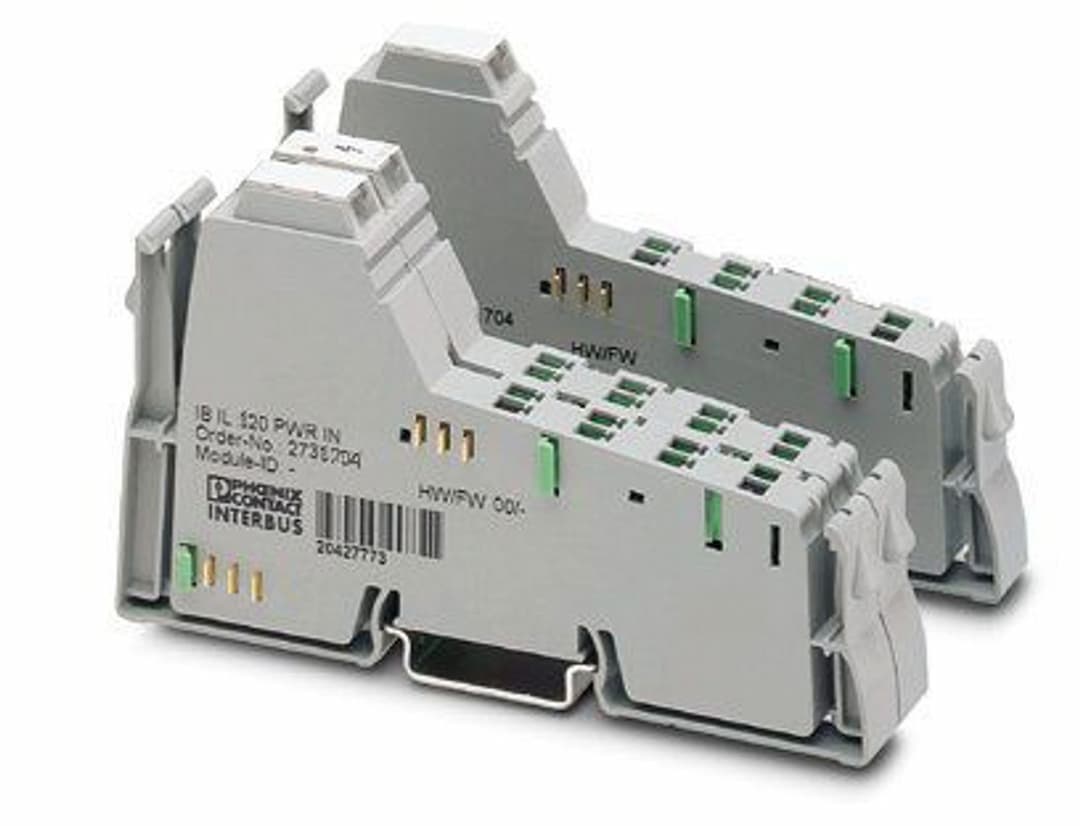

IB IL 120 PWR IN
Product ID:23529
Updated: 2026/7/26
Key Features
- 1Supplying 120 V AC: Designed to feed 120 V AC supply voltage into an Inline station.
- 2Surge Protection: Equipped with surge protection for reliable operation.
- 3Comprehensive Accessories: Includes connector set, labeling field, and insert strip for easy installation.
- 4Technical Specifications: Supports up to 8 A current consumption and operates within 108 V AC to 135 V AC range.
- 5UL Recognized & EAC Approved: Meets international standards with UL recognized and EAC approved certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular
Inline | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| ID code (dec.) | none | ID code (hex) | none |
| Register length | 0 bit | Test section | Output / Phase 500 V AC 50 Hz 1 min
5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min
Routine test 1200 V AC 50 Hz 1 min
I/O area 120 V AC/PE 500 V AC 50 Hz 1 min |
| I/O voltage | 120 V AC | I/O voltage range | 108 V AC ... 135 V AC (including all tolerances, including ripple) |
| Residual ripple | ± 12 V | Max. current consumption | 8 A |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | 8-pos. Inline power connector | Connection method | Inline data jumper |
| Width | 36.6 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Color | gray |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
