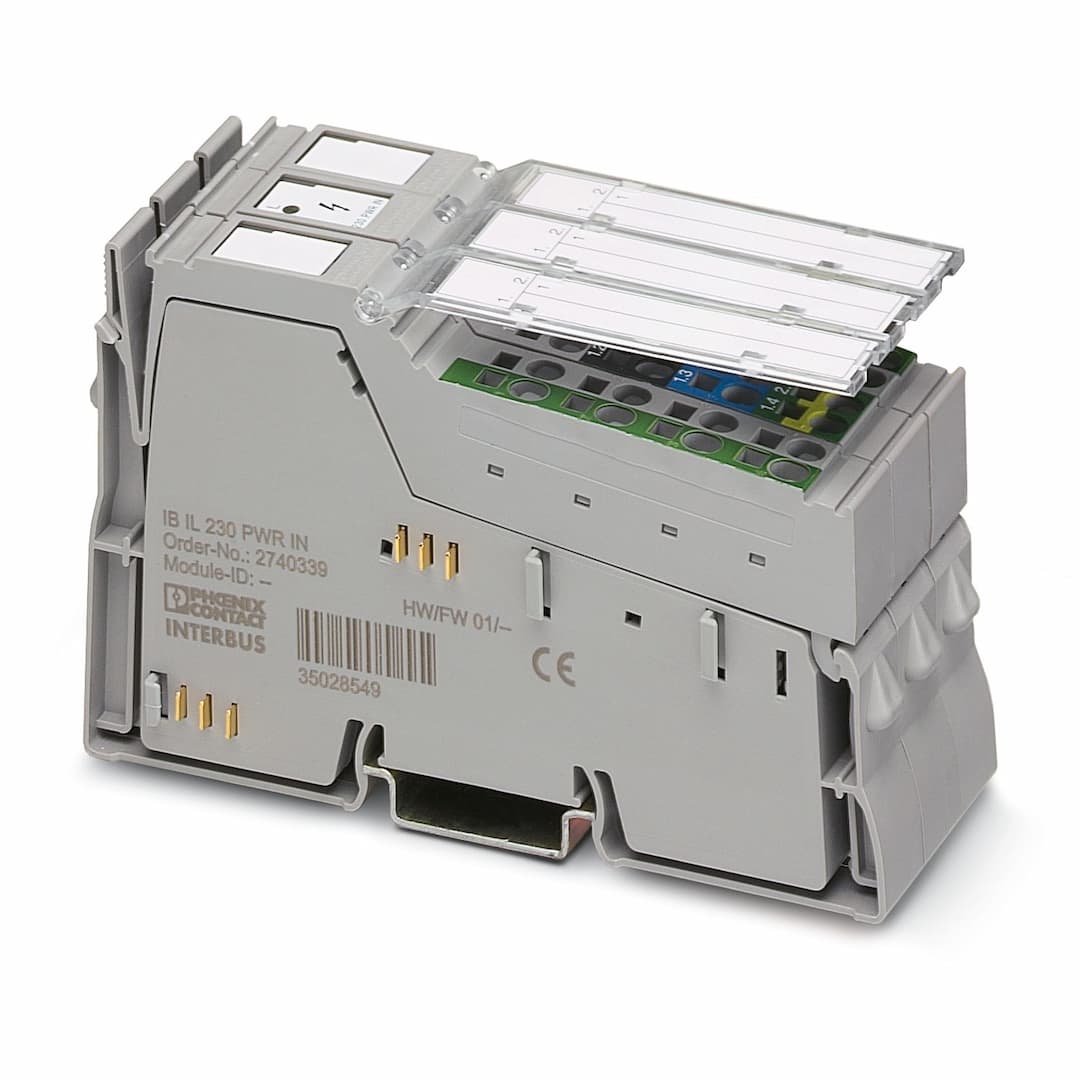

IB IL 230 PWR IN-PAC
Product ID:17465
Updated: 2026/7/12
Key Features
- 1Ideal for feeding 230 V AC supply voltage into an Inline station.
- 2Ensures reliable operation with built-in surge protection.
- 3Includes a labeling field for clear identification within complex systems.
- 4Comes with a connector set for easy installation and connection.
- 5Meets REACh SVHC and China RoHS standards for environmental compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 36.6 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps | ID code (dec.) | none |
| ID code (hex) | none | Register length | 0 Byte |
| Required parameter data | 0 Byte | Required configuration data | 0 Byte |
| Product type | I/O component | Product family | Inline |
| Type | modular | Special properties | 230 V AC |
| Article revision | 05 | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Maximum power dissipation for nominal condition | 0 W | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min
Routine test 1200 V AC 50 Hz 1 min
I/O area 120 V AC/PE 500 V AC 50 Hz 1 min
Output / Phase 500 V AC 50 Hz 1 min |
| Protective circuit | Surge protection | I/O voltage | 230 V AC |
| I/O voltage range | 207 V AC ... 253 V AC (including all tolerances, including ripple) | Residual ripple | ± 23 V |
| Max. current consumption | 8 A | Supply voltage | 230 V AC (via Inline connector) |
| Supply voltage range | 207 V AC ... 253 V AC | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
