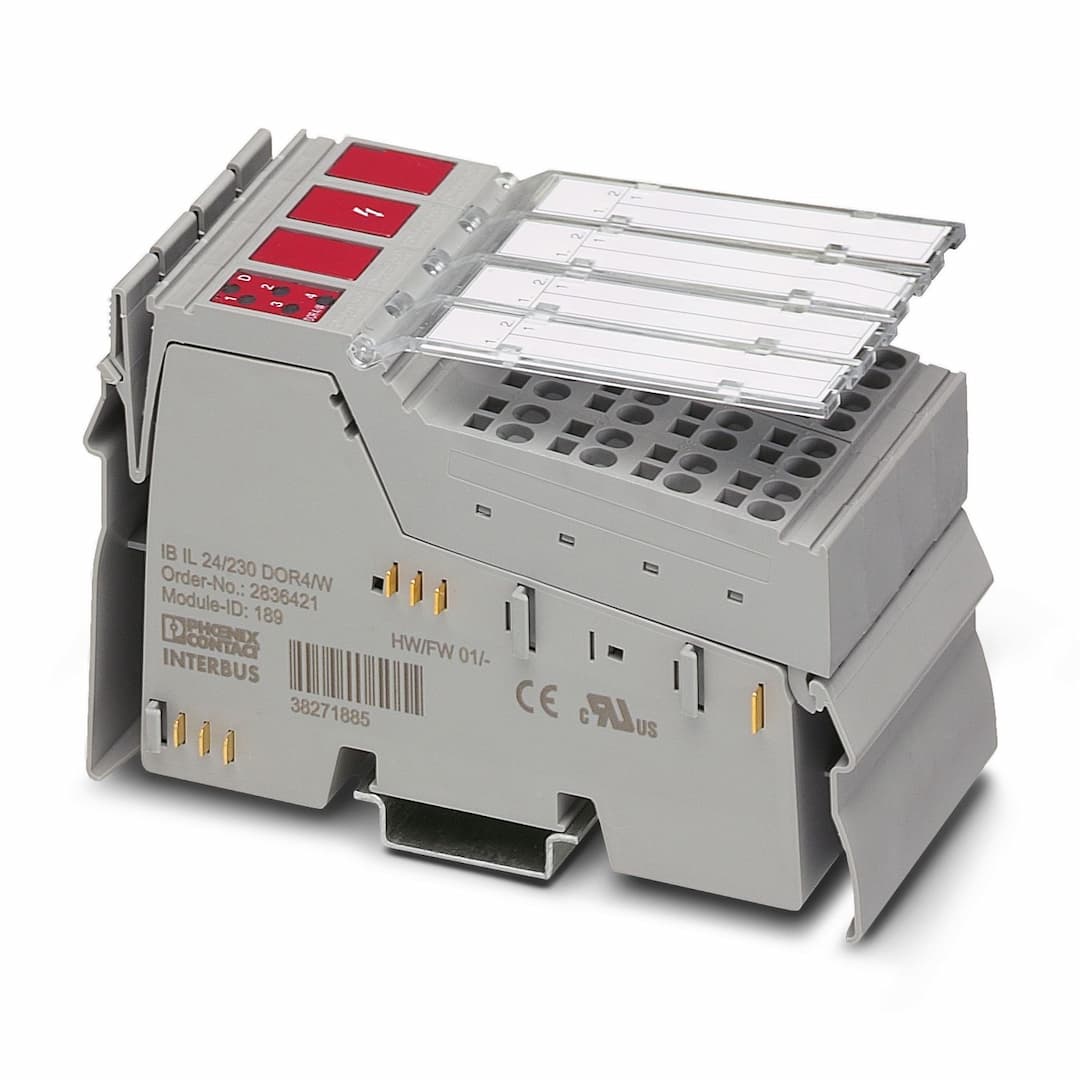

IB IL 24/230 DOR4/W-PAC
Product ID:17352
Updated: 2026/7/12
Key Features
- 1Meets EN 50178 standards for safe isolation.
- 2Supports four actuators with floating connections.
- 3Nominal current at output: 3 A, total current: 12 A.
- 4Includes diagnostic and status indicators for easy monitoring.
- 5Dimensions: 48.8 mm x 119.8 mm x 71.5 mm, IP20 protection class.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | 41 | Length code (dec) | 65 |
| Process data channel | 4 bit | Input address area | 0 Byte |
| Output address area | 4 bit | Register length | 4 bit |
| Required parameter data | 3 Byte | Required configuration data | 4 Byte |
| Number of outputs | 4 (floating) | Connection method | Spring-cage connection |
| Contact switching type | Changeover contact | Switching voltage | min. 5 V DC
max. 250 V DC |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connectors and marking fields |
| No. of channels | 4 | Special properties | for switching ohmic loads |
| Article revision | 06 | Maximum power dissipation for nominal condition | 2.85 W |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 187 mA |
| Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min | Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min |
| Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 0 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 0 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
