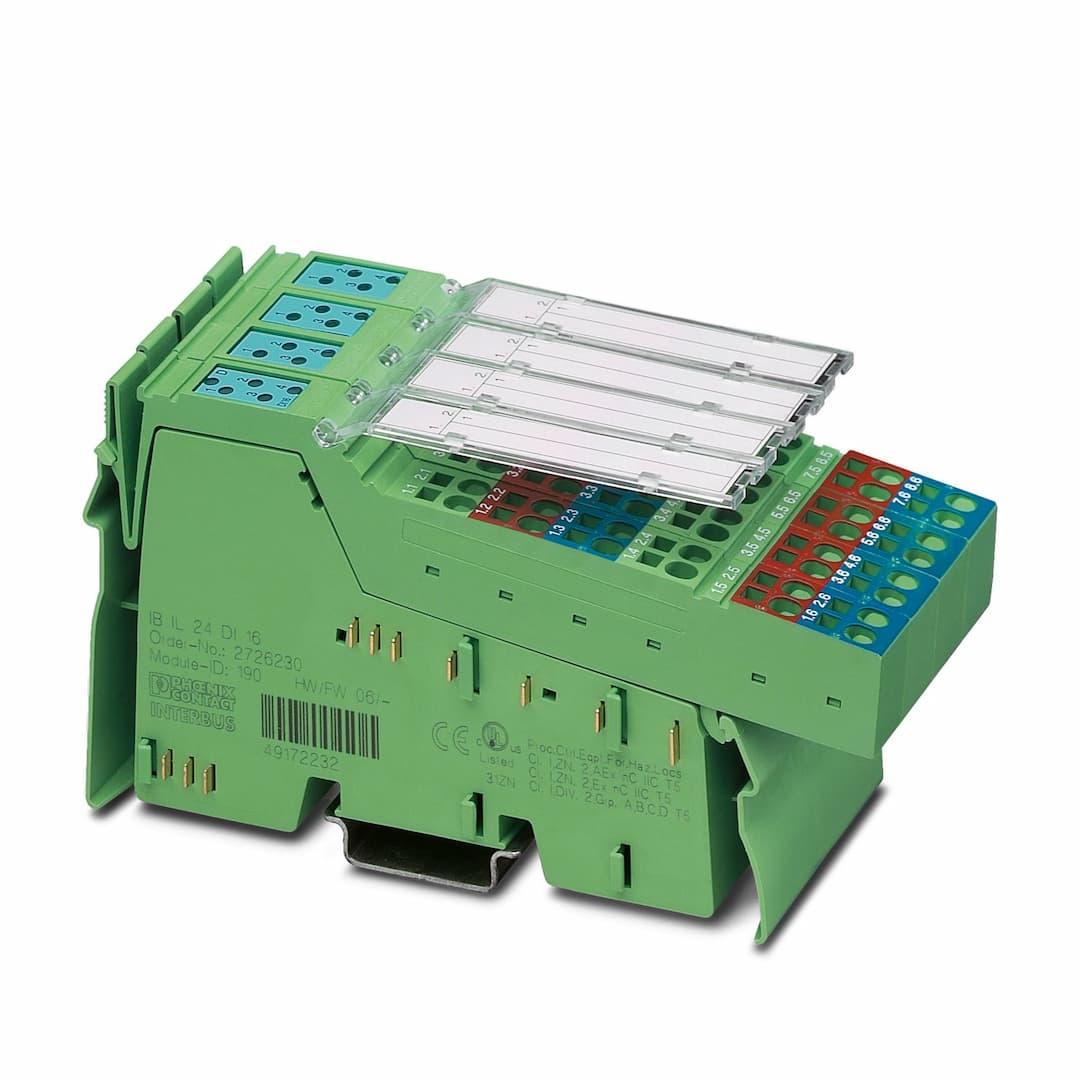

IB IL 24 DI 16-XC-PAC
Product ID:23570
Updated: 2026/7/12
Key Features
- 116 Digital Inputs: Connects up to 16 digital sensors for comprehensive data acquisition.
- 22 and 3-Wire Technology: Supports various sensor connection methods for flexibility.
- 3Diagnostic Indicators: Provides real-time status and diagnostic information for easy monitoring.
- 4High Reliability: Designed for use in potentially explosive areas with short-circuit and overload protection.
- 5Easy Integration: Compatible with Phoenix Contact's Inline system, ensuring seamless integration into your automation setup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 140.5 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 190 |
| ID code (hex) | BE | Length code (hex) | 01 |
| Length code (dec) | 01 | Process data channel | 16 bit |
| Input address area | 2 Byte | Output address area | 0 Byte |
| Register length | 16 bit | Required parameter data | 1 Byte |
| Required configuration data | 4 Byte | Input name | Digital inputs |
| Description of the input | EN 61131-2 type 1 | Number of inputs | 16 |
| Connection method | Spring-cage connection | Connection technology | 3-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Nominal input current at U | min. 3 mA (at nominal voltage) | Sensor current per channel | max. 250 mA |
| Typical response time | < 1 ms | Delay at signal change from 0 to 1 | 1 ms |
| Delay at signal change from 1 to 0 | 1 ms | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | No. of channels | 16 |
| Operating mode | Process data mode with one word | Special properties | Extreme conditions version |
| Article revision | 02 | Maximum power dissipation for nominal condition | 14.5 W |
| Protective circuit | Surge protection; Protective elements in the power terminal or the bus coupler
Reverse polarity protection; Protective elements in the power terminal or the bus coupler | Supply voltage | 7.5 V DC |
| Current draw | max. 60 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 4 A
0 A |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
