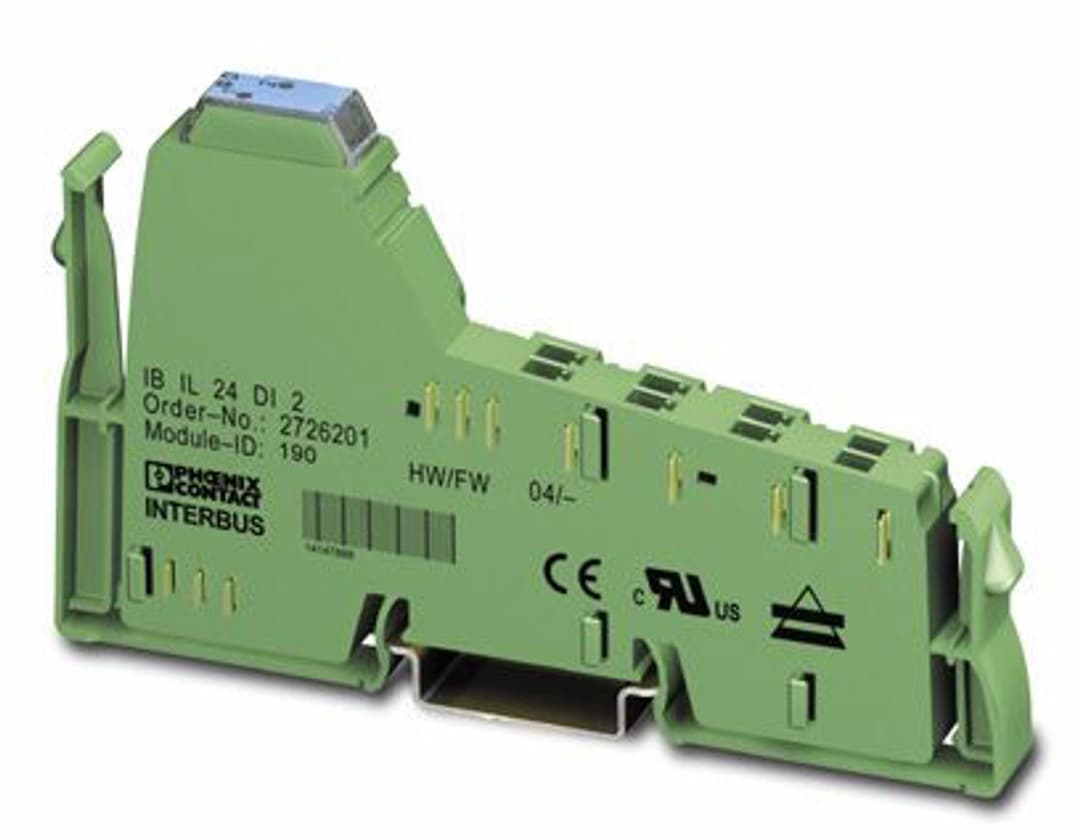

IB IL 24 DI 2
Product ID:20106
Updated: 2026/7/31
Key Features
- 1Highly Reliable: Designed for robust automation and control applications.
- 2Easy Installation: Simple 4-wire connection system for quick setup.
- 3Compact Design: Dimensions: 12.2 mm x 120 mm x 71.5 mm, weight: 38 g.
- 4Versatile Connectivity: Supports 2-, 3-, and 4-wire technology for various sensor connections.
- 5Diagnostic Indicators: Includes diagnostic and status indicators for easy monitoring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | No. of channels | 2 |
| ID code (dec.) | 190 | ID code (hex) | BE |
| Length code (hex) | C2 | Length code (dec) | 194 |
| Process data channel | 2 bit | Input address area | 2 bit |
| Output address area | 0 Byte | Register length | 2 bit |
| Required parameter data | 1 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 35 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 0.5 A |
| Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Input name | Digital inputs | Number of inputs | 2 (EN 61131-2 type 1) |
| Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC (via voltage jumper) | Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Typical response time | < 1 ms |
| Protective circuit | Short-circuit and overload protection | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Width | 12.2 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Note on dimensions | Housing dimensions | Ambient temperature (operation) | -25 °C ... 55 °C |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
