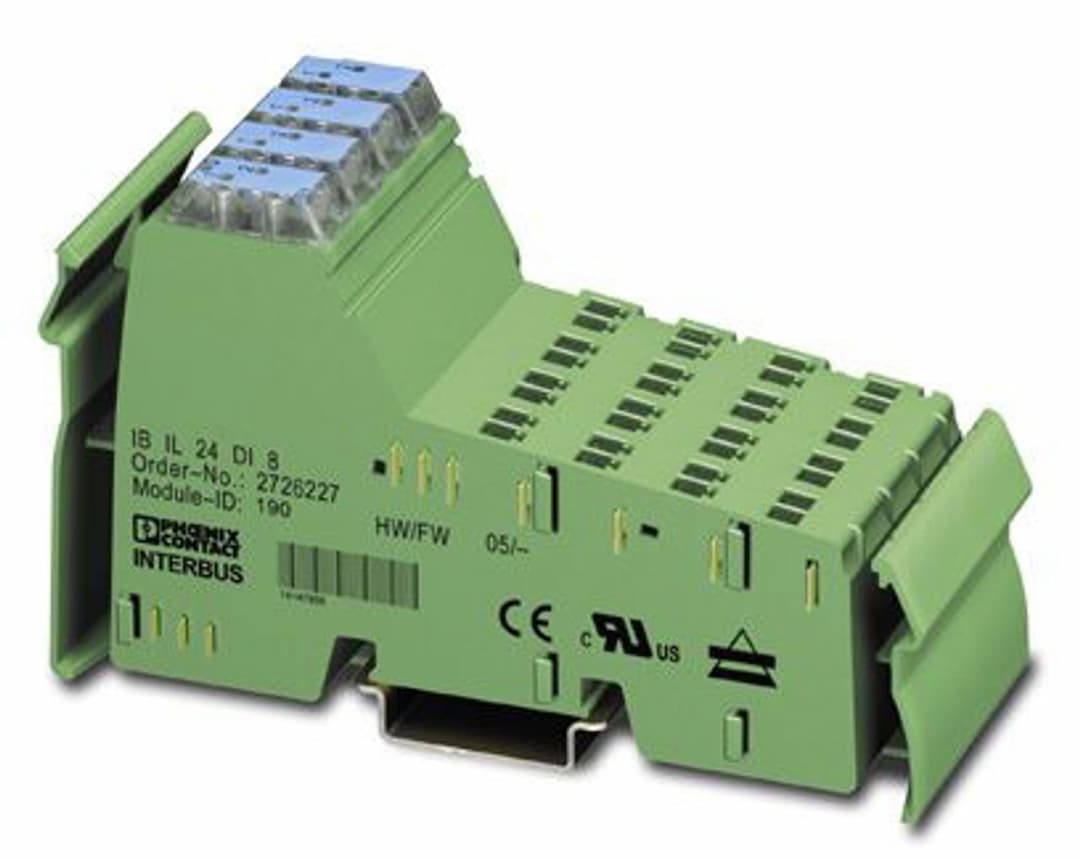

IB IL 24 DI8-2MBD
Product ID:18052
Updated: 2026/8/4
Key Features
- 18 Digital Inputs: Connect up to 8 digital signals for various sensor inputs.
- 24-Wire Connection: Supports 2, 3, and 4-wire connection technologies for flexibility.
- 3High Operating Temperature: Operates in temperatures up to +55°C, ensuring reliability in harsh environments.
- 4Compact Design: Measures 119.8 x 12.2 x 71.5 mm, making it easy to integrate into DIN rail systems.
- 5Diagnostic Indicators: Includes diagnostic and status indicators for easy monitoring and troubleshooting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | Inline data jumper |
| Transmission speed | 2 Mbps | ID code (dec.) | 190 |
| ID code (hex) | BE | Length code (hex) | 81 |
| Length code (dec) | 129 | Process data channel | 8 bit |
| Input address area | 1 Byte | Output address area | 0 Byte |
| Register length | 8 bit | Required parameter data | 1 Byte |
| Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
| Number of inputs | 8 | Connection method | Spring-cage connection |
| Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC (via voltage jumper) |
| Input voltage range "0" signal | -3 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input current at U | 5 mA | Typical response time | < 1 ms |
| Protective circuit | Short-circuit and overload protection | Product type | I/O component |
| Product family | Inline | Type | modular
Inline |
| No. of channels | 8 | Maximum power dissipation for nominal condition | 24.12 W |
| Supply voltage | 7.5 V DC | Current draw | max. 85 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 2 A | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
