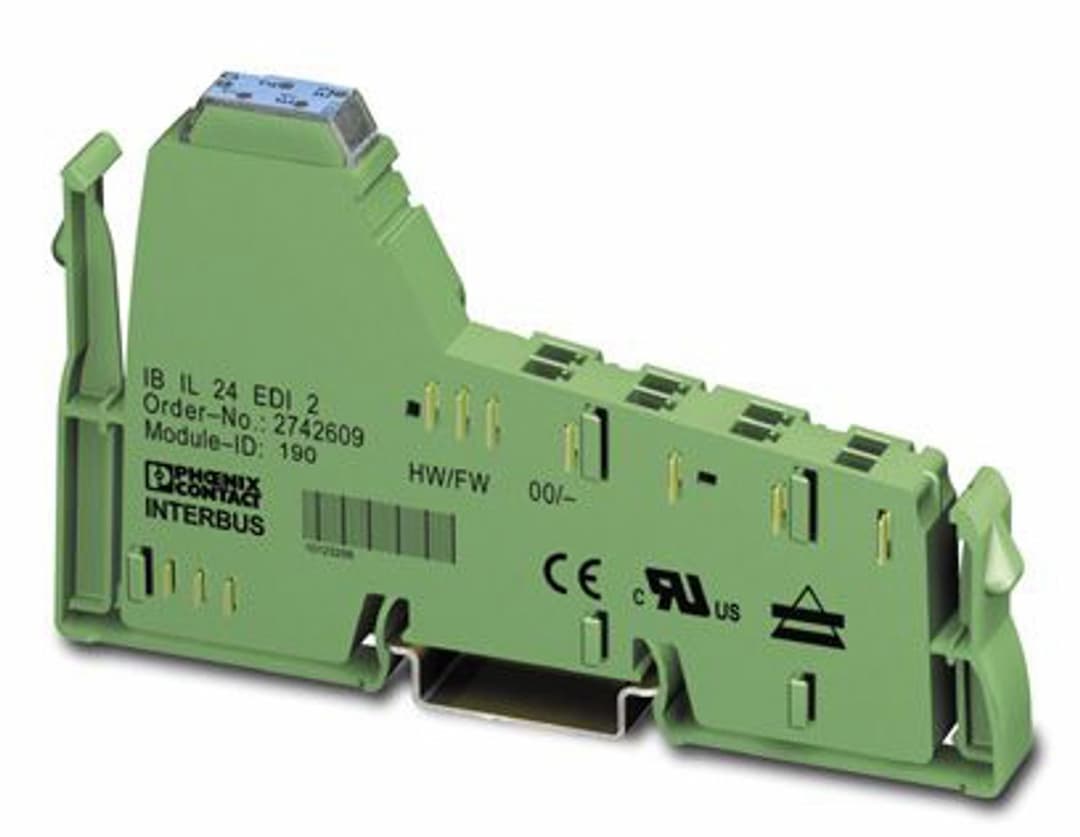

IB IL 24 EDI 2
Product ID:17814
Updated: 2026/8/4
Key Features
- 1Designed for use within an INTERBUS Inline station.
- 2Detects digital input signals with two initiator supplies.
- 3Protected against overload and short-circuit with error message generation.
- 4Includes local diagnostic and status indicators for easy monitoring.
- 5Supports 2-, 3-, and 4-wire technology for versatile sensor connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 190 | ID code (hex) | BE |
| Length code (hex) | C2 | Length code (dec) | 194 |
| Process data channel | 2 bit | Input address area | 2 bit |
| Output address area | 0 Byte | Register length | 2 bit |
| Required parameter data | 1 Byte | Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 | Number of inputs | 2 |
| Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC (via voltage jumper) | Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Product type | I/O component |
| Product family | Inline | Type | modular |
| No. of channels | 2 | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 31 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 0.25 A |
| Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
