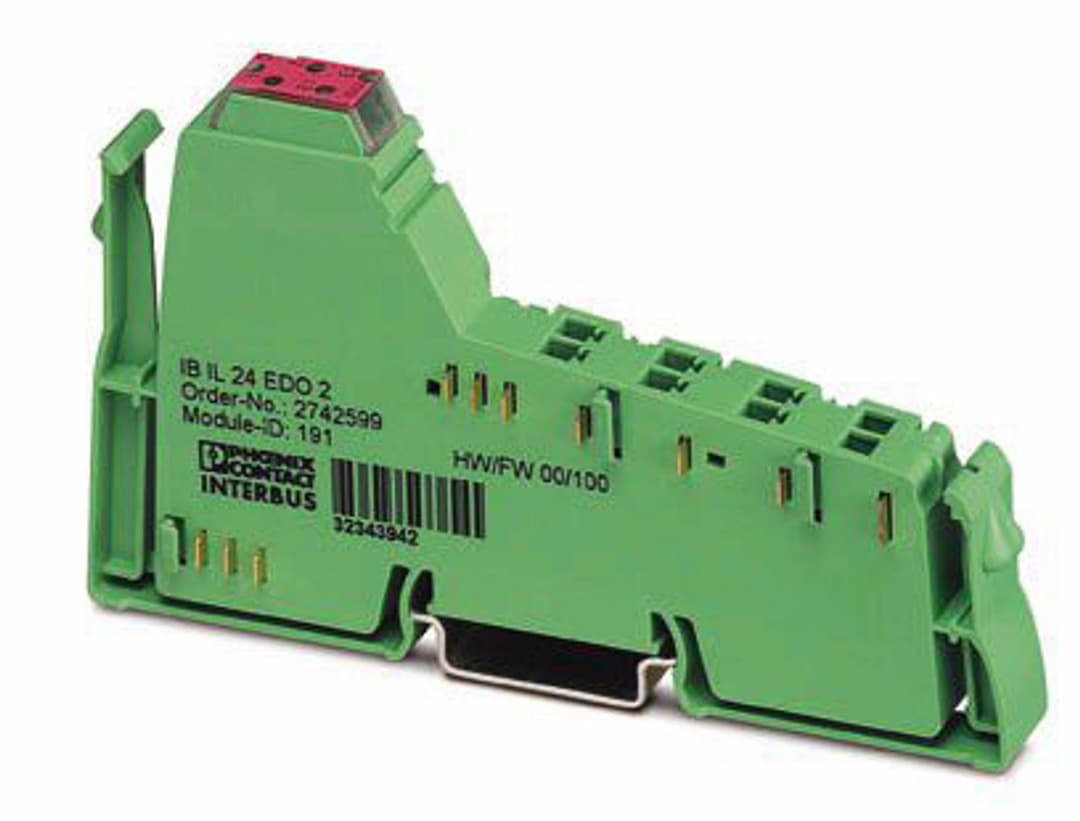

IB IL 24 EDO 2
Product ID:19903
Updated: 2026/7/31
Key Features
- 1The IB IL 24 EDO 2 offers two digital outputs for efficient signal transmission.
- 2Equipped with short circuit and overload protection to ensure safe operation.
- 3Includes local diagnostic and status indicators for easy monitoring.
- 4Measuring 12.2 mm x 120 mm x 71.5 mm, it fits seamlessly into any INTERBUS Inline station.
- 5Designed for use within INTERBUS Inline stations, ensuring high reliability in industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | No. of channels | 2 |
| Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module | ID code (dec.) | 191 |
| ID code (hex) | BF | Length code (hex) | 41 |
| Length code (dec) | 65 | Process data channel | 4 bit |
| Input address area | 4 bit | Output address area | 4 bit |
| Register length | 4 bit | Required parameter data | 3 Byte |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 40 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1 A | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Output name | Digital outputs |
| Output description | Extended diagnostics, parameterizable outputs | Connection method | Spring-cage connection |
| Connection technology | 2-, 3-, 4-conductor | Number of outputs | 2 |
| Protective circuit | Short-circuit and overload protection | Output voltage | 24 V DC (U |
| Maximum output current per channel | 500 mA | Maximum output current per module | 1 A |
| Nominal output voltage | 24 V DC (voltage difference at I | Nominal load, inductive | 12 W |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 VA |
| Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
| Behavior at voltage switch-off | The output follows the power supply without delay | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
| Diagnostics | Short-circuit or overload of the digital outputs | Message | Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
