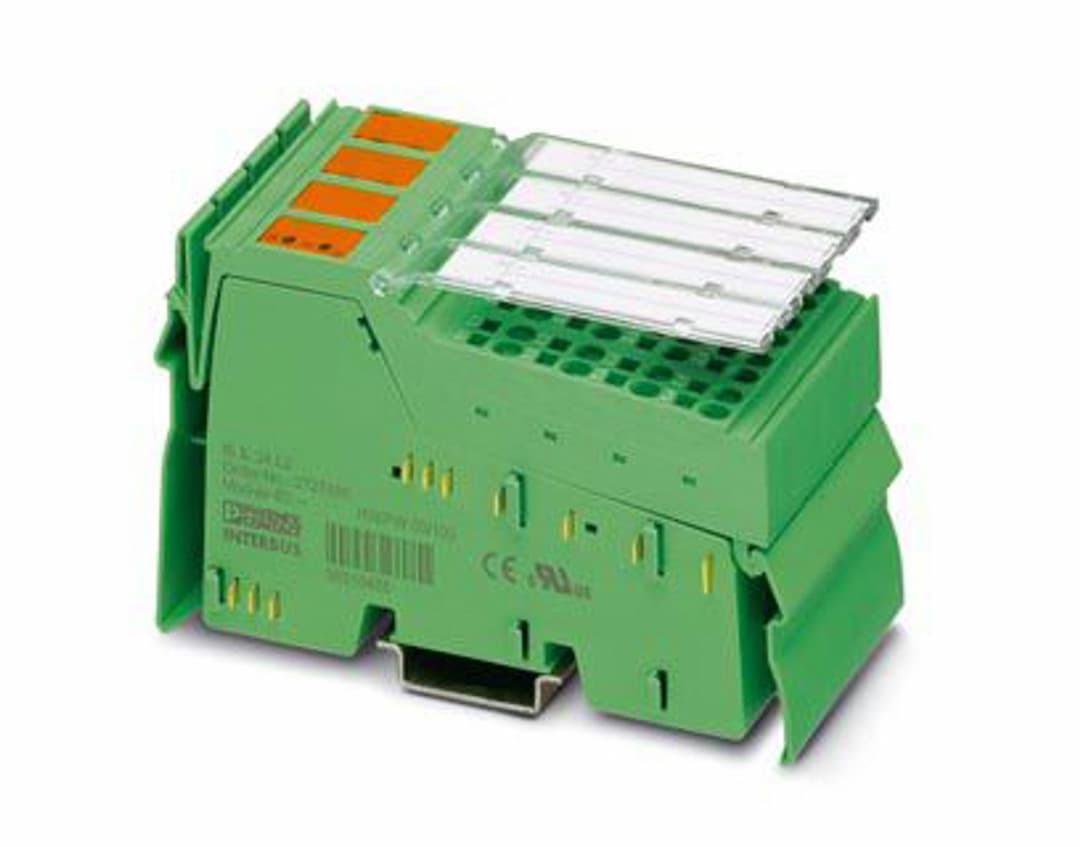

IB IL 24 L2-PAC
Product ID:21606
Updated: 2026/7/29
Key Features
- 1High-Reliability Connections: Designed for 16 digital actuators with 2 and 3-wire technology.
- 2Efficient Power Handling: Nominal current per output: 0.5 A, total current: 8 A.
- 3Advanced Diagnostic Capabilities: Includes diagnostic and status indicators for easy monitoring.
- 4Explosion-Proof Certification: Approved for use in potentially explosive areas (observe notes on page 8).
- 5Versatile Connectivity Options: Compatible with various connectors, including spring-cage terminals and color-printed connectors.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | ID code (hex) | none |
| Register length | 0 bit | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 85 mA | Current draw | max. 1.855 A |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
