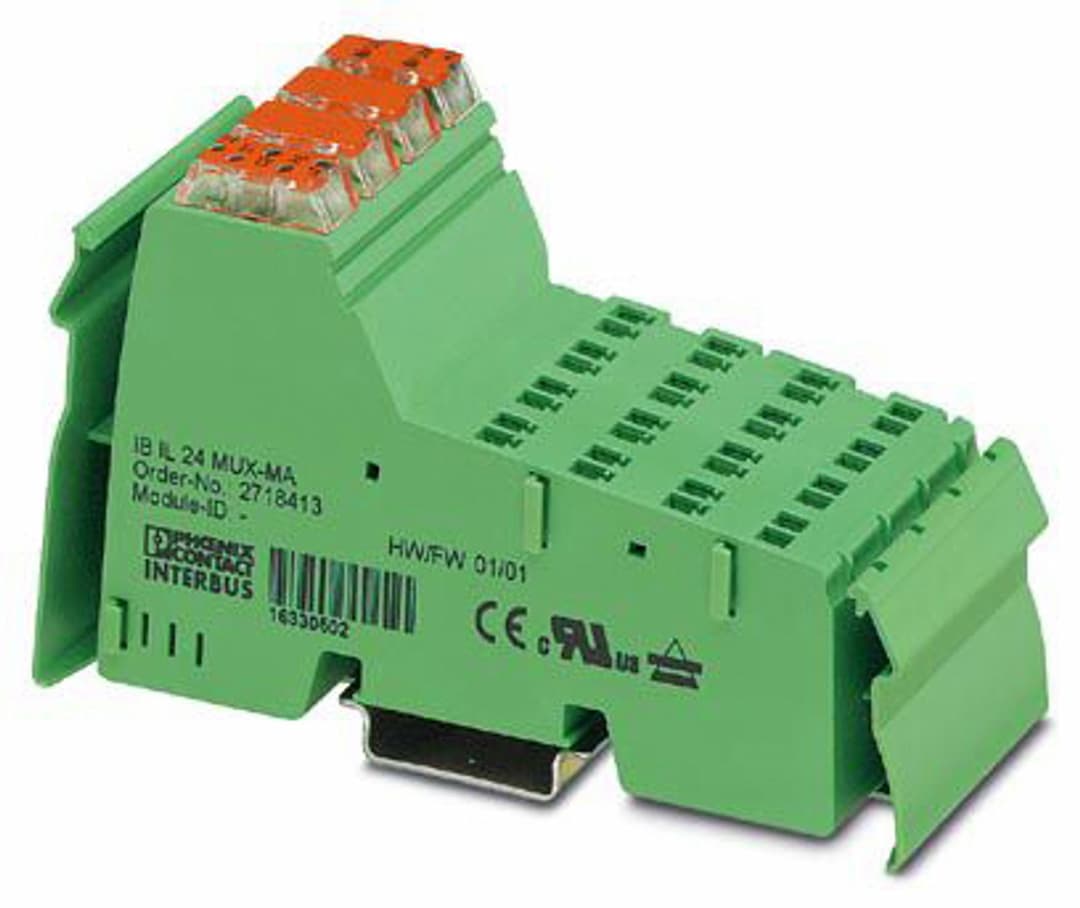

IB IL 24 MUX MA
Product ID:19883
Updated: 2026/7/31
Key Features
- 1Approved for use in potentially explosive areas of zone 2.
- 2Diagnostic and status indicators for real-time monitoring.
- 3Remote bus connections using copper technology for reliable signal transmission.
- 4Transmission speed of 500 kbps for efficient data transfer.
- 5Compact dimensions: 48.8 mm width, 119.8 mm height, and 71.5 mm depth.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Color | green |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Connection method | Inline shield connector | Connection method | 8-pos. Inline power connector |
| ID code (hex) | none | Product type | I/O component |
| Product family | Inline | Type | modular |
| Test section | RS-485 interface / supply voltage 500 V AC
RS-485 interface / local bus 500 V AC | Protective circuit | Reverse polarity protection |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) |
| Max. total permissible current consumption of all I/O terminal blocks | Communications power (7,5 V DC) ≤ 2 A
Analog supply (24 V DC) ≤ 0.5 A | Residual ripple | ± 1.2 V |
| Typical current consumption | < 60 mA (without connected I/O terminal blocks (24 V DC supply))
1.25 A (with max. number of connected I/O terminal blocks (24 V DC supply))
8 A (If this value is exceeded, further power or segment terminals must be used!) | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Permissible humidity (operation) | 75 % ... 85 % | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
