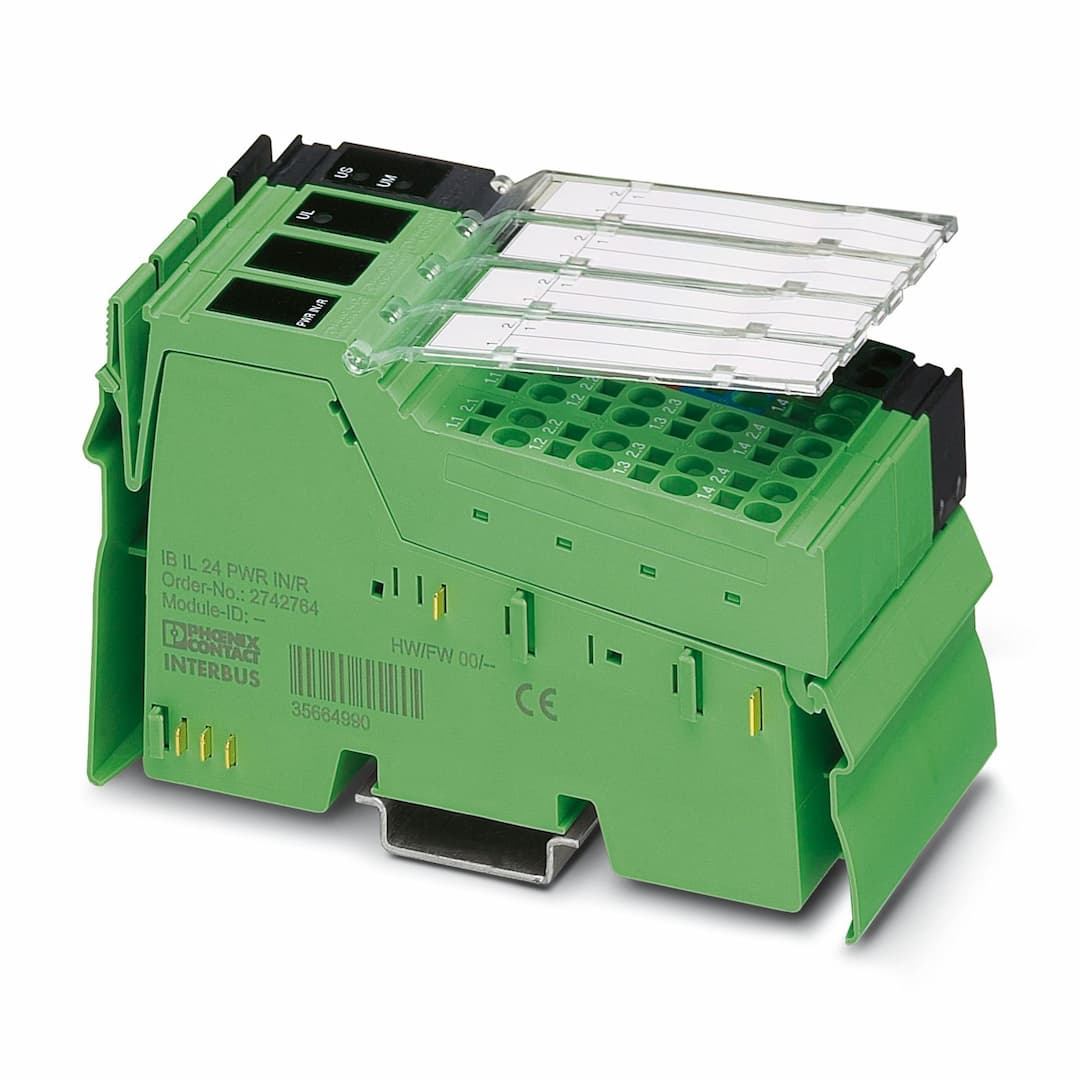

IB IL 24 PWR IN/PS-PAC
Product ID:17642
Updated: 2026/7/12
Key Features
- 1Provides 24V DC power supply for both main and segment circuits.
- 2Main and segment circuits are protected by external fuses for enhanced safety.
- 3Designed for easy mounting on DIN rail, ideal for industrial applications.
- 4Operates within a wide ambient temperature range (-25°C to 55°C) and humidity levels (10% to 95% non-condensing).
- 5Meets safety standards for use in safety-related segment circuits and potentially explosive areas (ATEX compliant).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps | ID code (dec.) | none |
| ID code (hex) | none | Register length | 0 bit |
| Product type | I/O component | Product family | Inline |
| Type | modular | Special properties | 24 V DC
Supply/boost U |
| Article revision | 05 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Maximum power dissipation for nominal condition | 3 W | Test section | 7.5 V communications power, 24 V analog supply, 24 V bus terminal module supply/functional ground 500 V AC 50 Hz 1 min
Communications power (U
24 V main supply, 24 V segment supply/functional ground 500 V AC 50 Hz 1 min |
| I/O voltage range | 19.2 V ... 30 V | Residual ripple | ±5 % |
| Max. current consumption | 1.25 A DC | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A DC (at nominal voltage; consisting of: 0.75 A DC for the communications power and 0.5 A DC for the analog voltage supply)
min. 12 mA DC (at nominal voltage) |
| Supply voltage | 7.5 V DC (via voltage jumper) | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) | Mounting type | DIN rail mounting |
