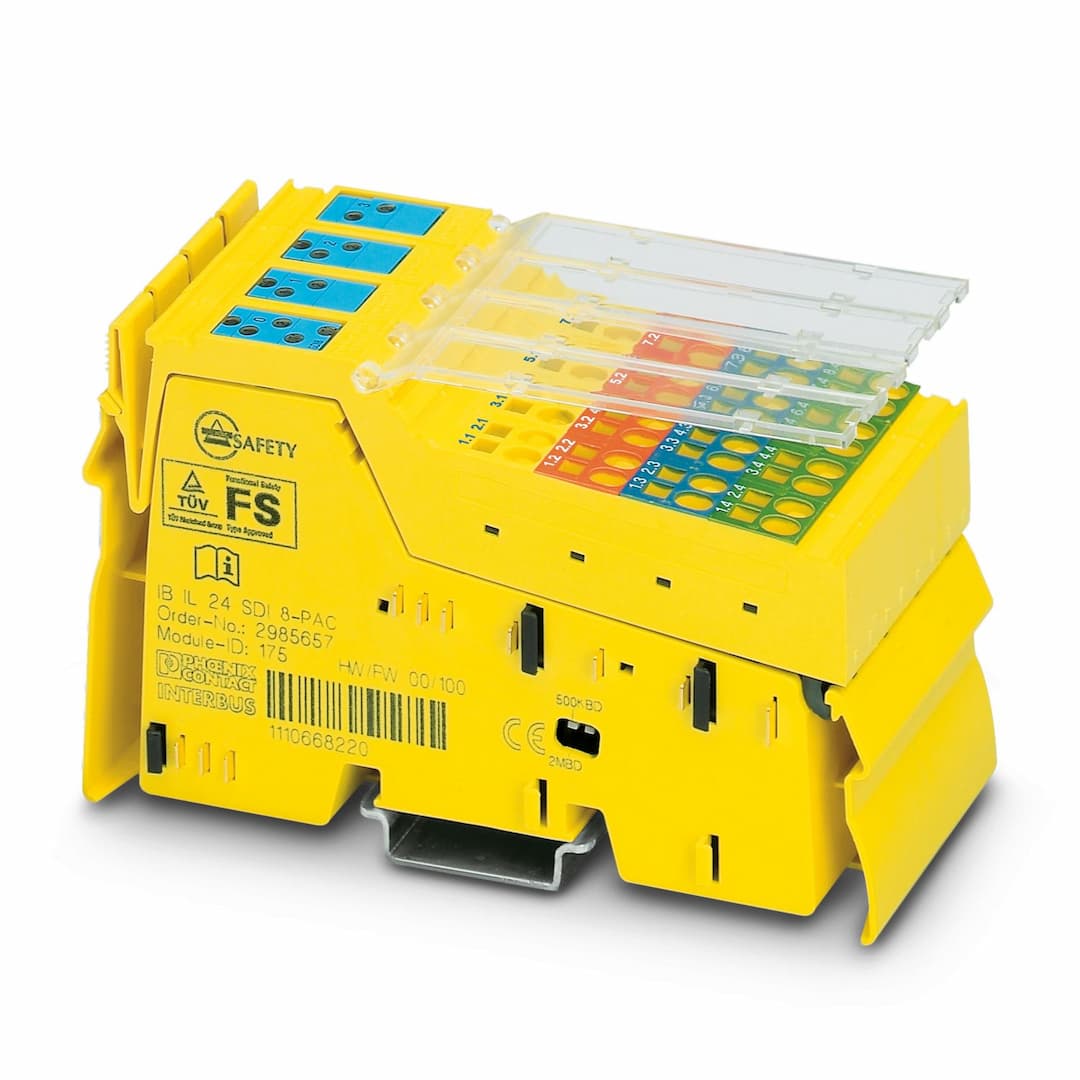

IB IL 24 SDI 8-PAC
Product ID:19582
Updated: 2026/8/1
Key Features
- 1The module offers 8 safe digital inputs for single-channel assignment, ensuring reliable and secure data transmission.
- 2Set the transmission speed to 500 kbaud or 2 Mbaud using a switch, accommodating various system requirements.
- 3Built with IP20 protection, the module is designed for use in SafetyBridge, INTERBUS-Safety, and PROFIsafe systems.
- 4Mounts on DIN rail with 24 V supply (I/O) and functional earth ground, simplifying integration into existing systems.
- 5Meets stringent safety standards with short-circuit and overload protected outputs, ensuring system integrity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | yellow |
| Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
| ID code (dec.) | 175 | ID code (hex) | AF |
| Input name | Digital inputs | Number of inputs | 4 (for 2-channel assignment)
8 (for 1-channel assignment) |
| Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC (parameterizable; see technical data.) | Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC | Typical response time | See technical data |
| Product type | I/O component | Product family | Inline |
| Application | IB-Safety | Type | modular |
| Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor | Maximum power dissipation for nominal condition | 150 W |
| Transmission medium | Copper | Supply voltage | 7.5 V DC (see safety data) |
| Current draw | max. 230 mA (see safety data) | Supply voltage | 24 V DC (see safety data) |
| Supply voltage | 24 V (see safety data) | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 hPa ... 108 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 66 hPa ... 108 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
