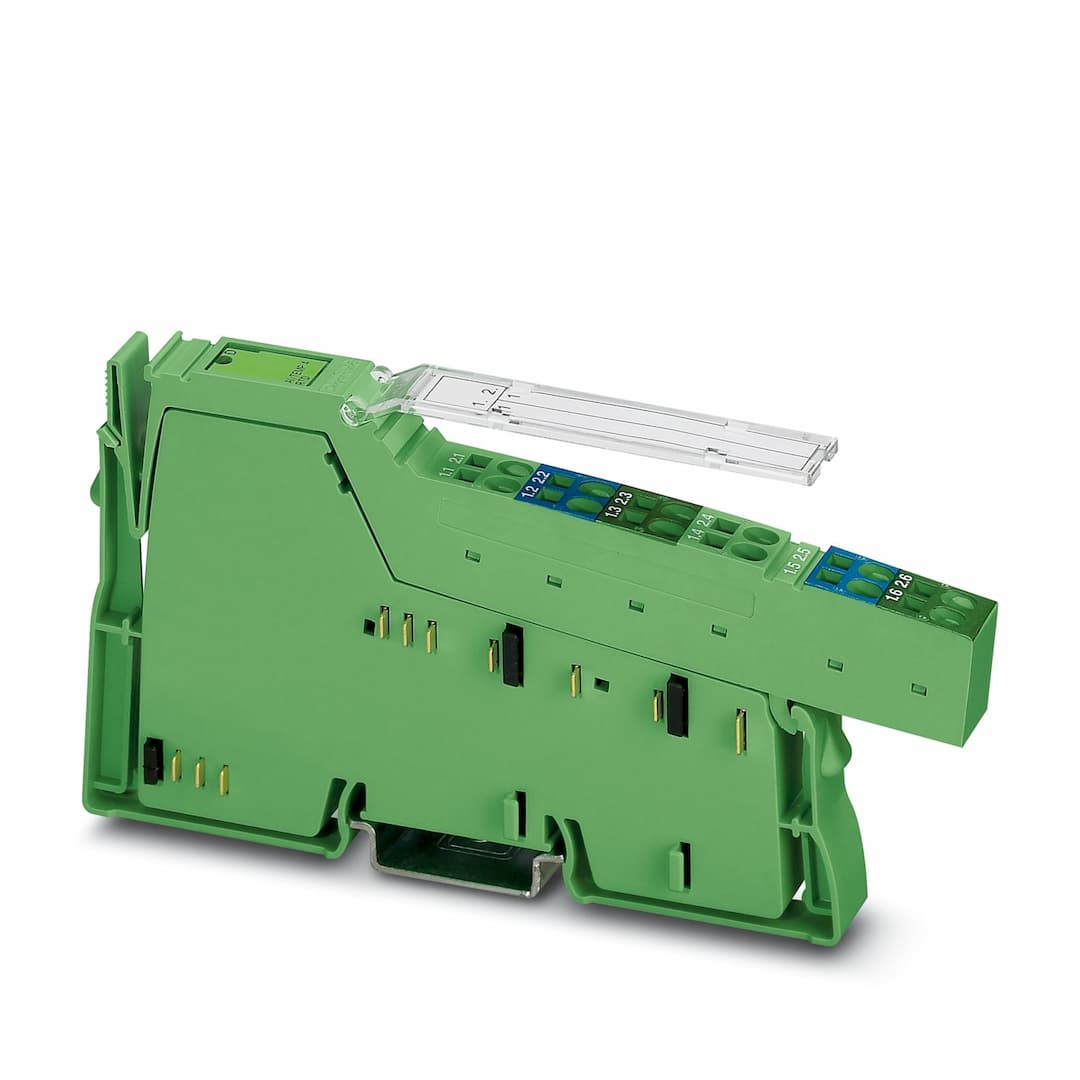

IB IL AI/TEMP 4 RTD-XC-PAC
Product ID:17092
Updated: 2026/7/12
Key Features
- 1Configure each of the four analog inputs independently via the bus system.
- 2Designed to operate under extreme ambient conditions with a temperature range of -40 °C to +70 °C.
- 3Measures temperature with a resolution of 16 bits, providing precise data acquisition.
- 4Supports platinum (Pt), nickel (Ni), copper (Cu), and KTY sensors according to DIN EN 60751 and SAMA standards.
- 5Includes an inline connector and labeling field, ensuring easy integration into your system.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 140.5 mm |
| Depth | 71.5 mm | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Transmission physics | Copper |
| Data formats | IB IL, IB ST, standardized representation, S7 compatible | Filtering | None or mean-value generation over 8 or 32 measured values |
| Limit frequency (3 dB) | 6.6 Hz | Measured value resolution | 16 bits (15 bits + sign bit) |
| Input filter time | 150 ms
1200 ms
4800 ms (adjustable) | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connector and labeling field | Special properties | Extreme conditions version |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Current draw | max. 65 mA | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
