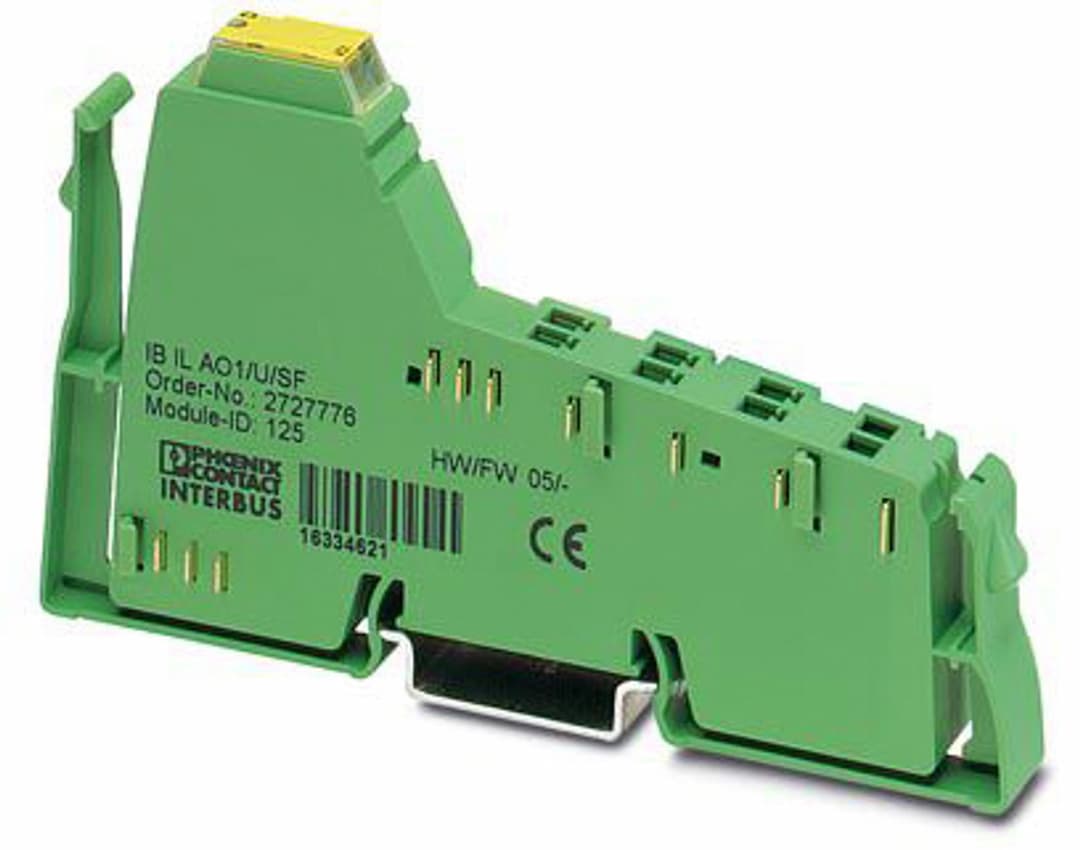

IB IL AO 1/U/SF
Product ID:20062
Updated: 2026/7/31
Key Features
- 1High Precision Analog Output: 16-bit resolution for precise signal representation.
- 2Fast Data Update: Process data update in less than 1 ms for real-time control.
- 3Shielded 2-Conductor Technology: Ensures reliable connection and noise reduction.
- 4Wide Operating Temperature Range: -25°C to 55°C for robust operation in various environments.
- 5DIN Rail Mounting: Easy installation on DIN rail for compact control cabinet integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | ID code (dec.) | 125 |
| ID code (hex) | 7D | Length code (hex) | 01 |
| Length code (dec) | 01 | Input address area | 0 Byte |
| Output address area | 2 Byte | Register length | 16 bit |
| Required parameter data | 4 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 40 mA
typ. 30 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 20 mA
typ. 15 mA |
| Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Output name | Analog outputs |
| Connection technology | 2-conductor (shielded) | Number of outputs | 1 |
| D/A converter resolution | 16 bit | Protective circuit | Transient protection of outputs |
| Representation of output values | 16 bits (15 bits + sign) | DAC resolution | 16 bit |
| Process data update | < 1 ms | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
| Load/output load current output | > 500 Ω | Voltage output signal | 0 V ... 10 V |
| Load/output load voltage output | > 2 kΩ 0.05 % | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | No. of channels | 1 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Transmission physics | Copper | Width | 12.2 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
