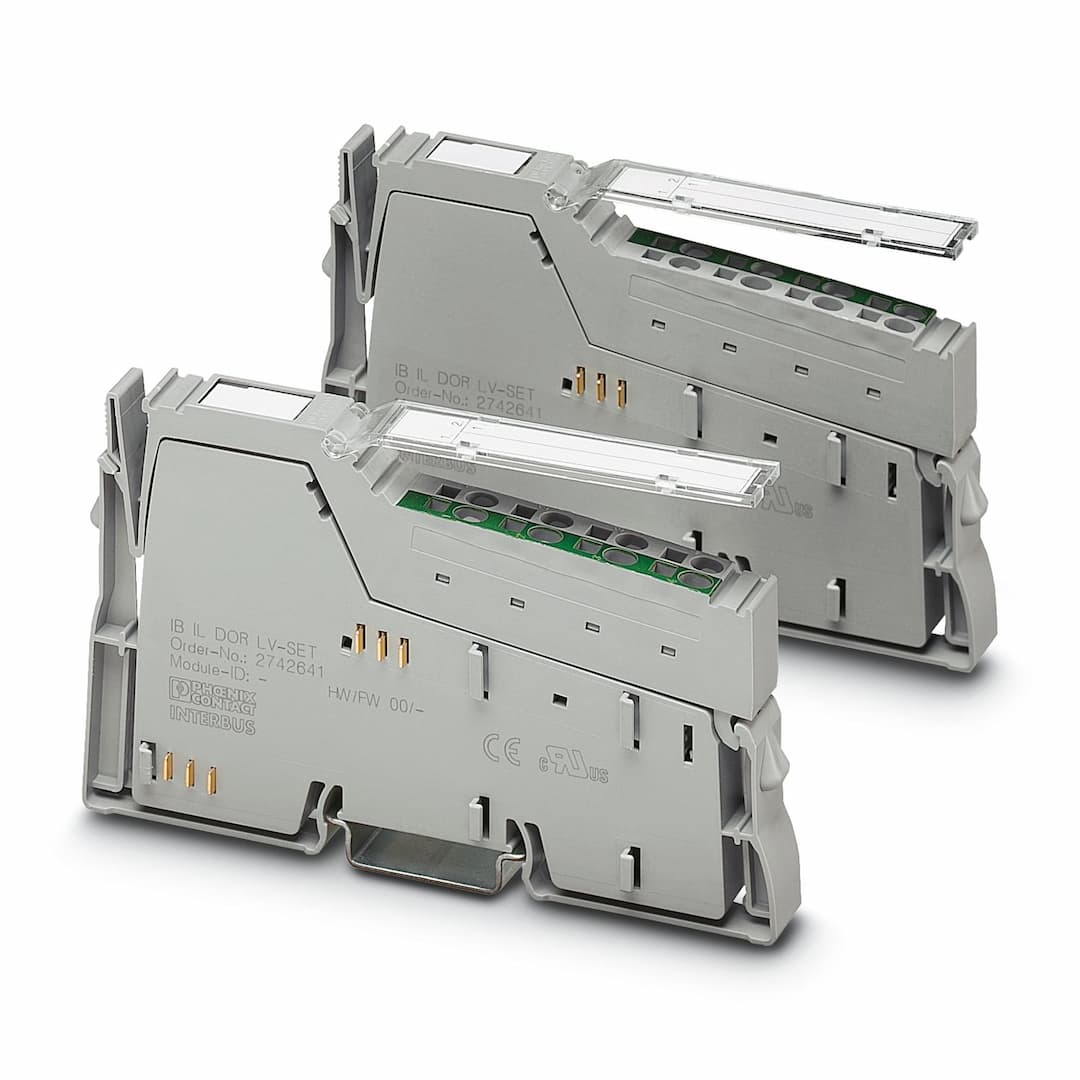

IB IL DOR LV-SET-PAC
Product ID:19247
Updated: 2026/7/12
Key Features
- 1Maximum Flexibility: Designed for use within Inline stations, offering a large selection of I/O terminals, function terminals, bus couplers, and controllers.
- 2Space-Saving Design: Narrow overall width and tailored number of channels save space in the control cabinet.
- 3International Approvals: Meets international safety standards and Ex i modules for a wide range of applications.
- 4Local Bus Extension: Enables local bus extension to the field without additional bus couplers, thanks to the branch terminal.
- 5Comprehensive Approvals: UL Recognized, cUL Recognized, GOST, LR, GL, BV, DNV, ABS, and BSH approvals ensure reliability and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Distance terminal |
| Product family | Inline | Type | modular |
| Article revision | 04 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| ID code (dec.) | none | ID code (hex) | none |
| Register length | 0 Byte | Required parameter data | 0 Byte |
| Required configuration data | 0 Byte | Test section | 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Connection method | Inline data jumper | Width | 24.4 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Color (Housing) | gray (RAL 7042) | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
