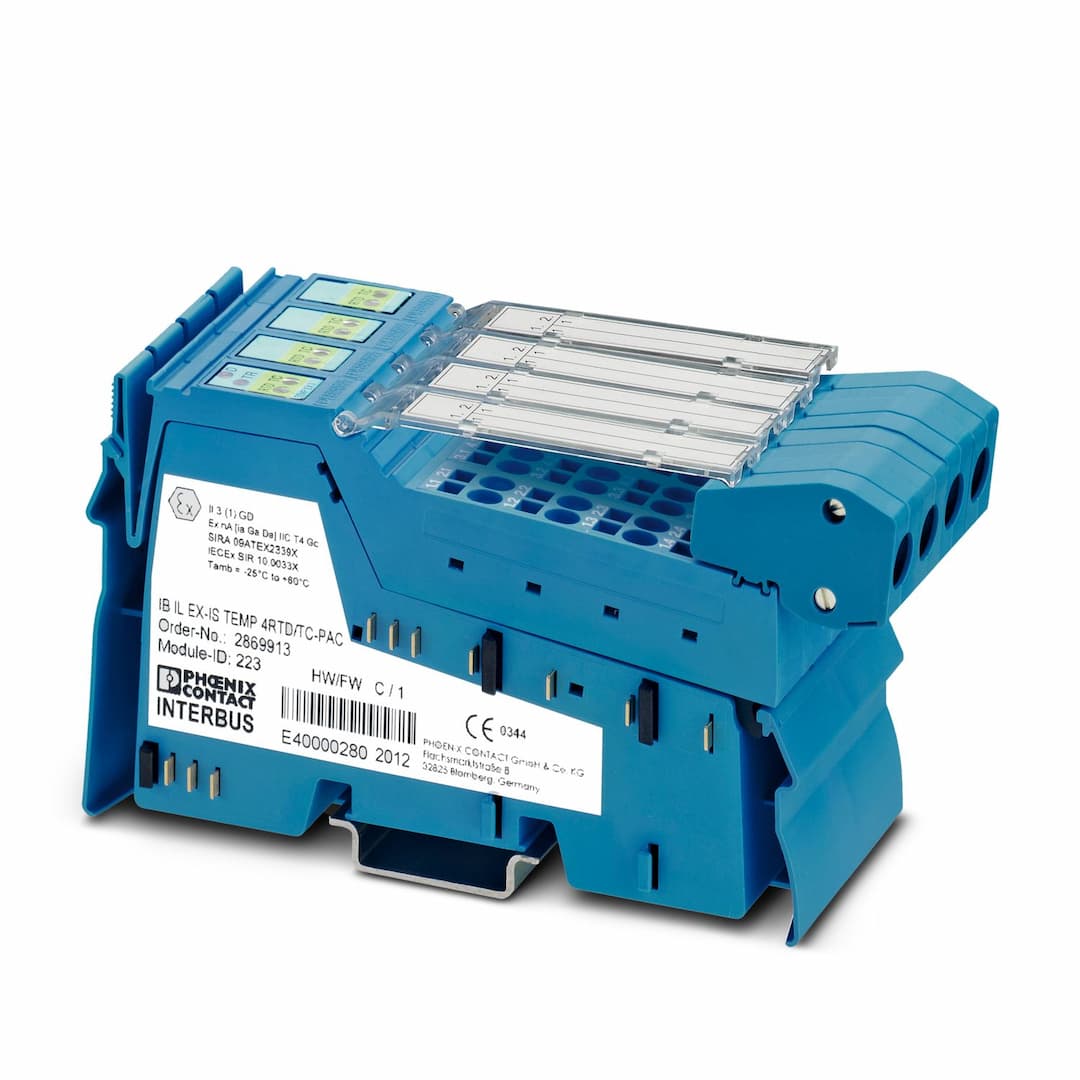

IB IL EX-IS TEMP 4 RTD/TC-PAC
Product ID:18408
Updated: 2026/8/2
Key Features
- 1High Precision Temperature Measurement: The IB IL EX-IS TEMP 4 RTD/TC-PAC offers 16-bit A/D converter resolution for precise temperature measurement.
- 2Robust Design: Designed with an IP20 rating, it ensures reliable operation in harsh environments.
- 3Flexible Connectivity: Equipped with inline shield connectors for 2- and 3-conductor connections, making it versatile for various industrial setups.
- 4Wide Operating Range: Operates between -25°C to 55°C, suitable for a broad range of industrial applications.
- 5Easy Integration: Compatible with RTD and TC sensors, simplifying integration into existing systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 136.8 mm |
| Depth | 71.5 mm | CCCex note | Use in potentially explosive areas is not permitted in China. |
| Color | blue | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Voltage input signal | -15 mV ... 85 mV |
| Number of inputs | 4 | Connection method | Inline shield connector |
| Connection technology | 2-, 3-conductor | A/D converter resolution | 16 bit (15 bit + sign bit) |
| Sensor types (RTD) that can be used | 2 and 3-wire, Pt, Ni (DIN 100, 200, 500, 1000) | Sensor types that can be used (TC) | J, K, E, R, S, T |
| Data formats | IB IL, S7-compatible | Linear resistance measuring range | 0 Ω ... 800 Ω
0 Ω ... 5000 Ω |
| Protective circuit | Polarity protection, surge protection | Product type | I/O component |
| Type | modular
Inline | Article revision | 03 |
| Power consumption | 1.5 W (all channels) | Supply voltage | 5 V DC (via voltage jumper) |
| Current draw | max. 50 mA | Supply voltage | 28 V DC |
| Current draw | max. 80 mA | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | ATEX | II 3(1)GD Ex nA [ia Ga Da] IIC T4 Gc Sira 09ATEX2339X |
| IECEx | Ex nA [ia Ga Da] IIC T4 Gc IECEx SIR 10.0033X | FM approval | Class I, Div. 2, Groups A, B, C, D |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Mounting type | DIN rail mounting |
| Max. output voltage U | max. 5.88 V DC | Max. output current I | max. 95 mA |
| Max. output power P | max. 139 mW | IIC (A, B): Max. external inductivity L | 0.984 mH / 42 µF |
| IIB, [IIIC, IIIB] (C, E, F, G): Max. external inductivity L | 2.9 mH / 999 µF | IIA (D): Max. external inductivity L | 7.8 mH / 999 µF |
Specifications may be subject to change without notice
