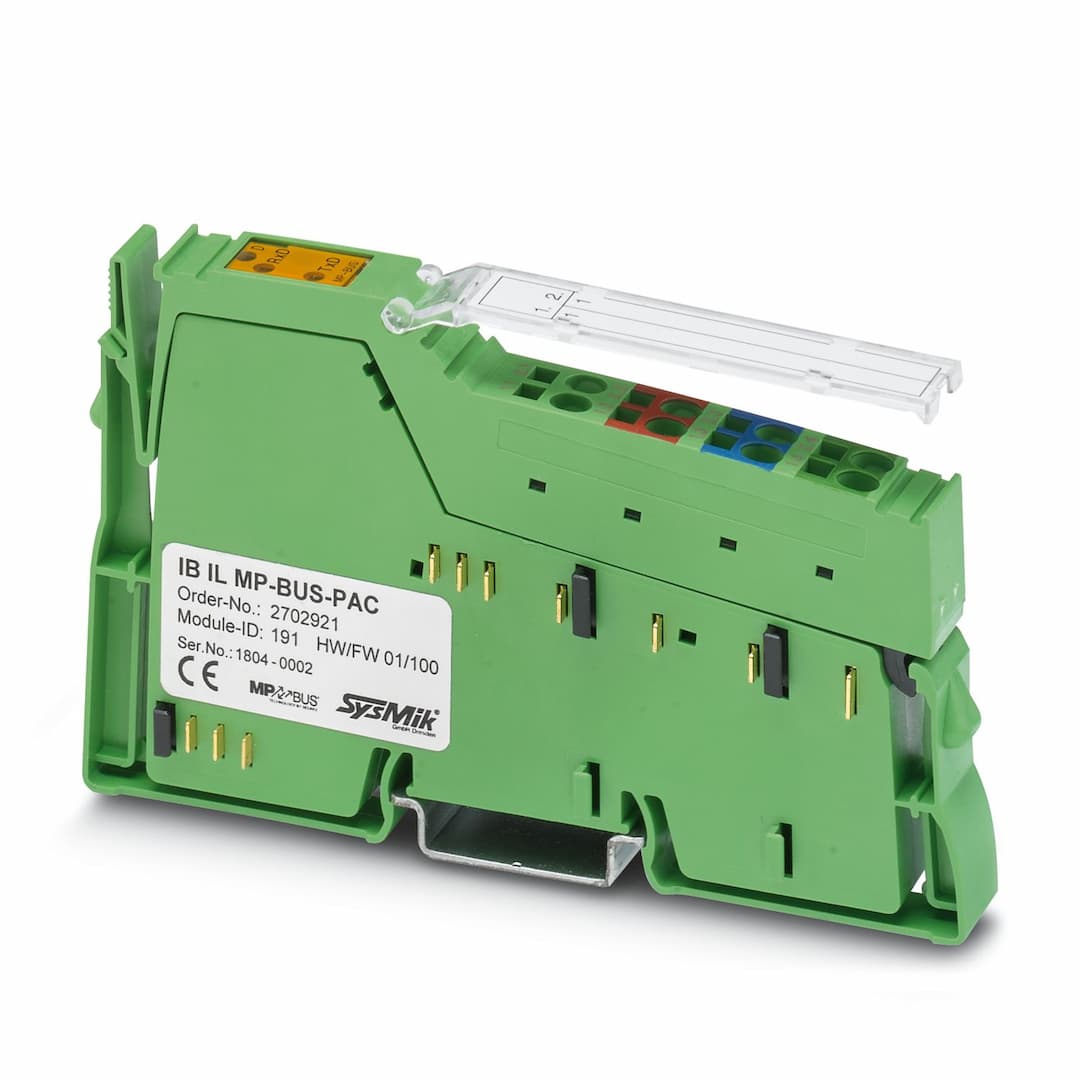

IB IL MP-BUS-PAC
Product ID:21447
Updated: 2026/7/29
Key Features
- 1The IB IL MP-BUS-PAC minimizes wiring needs by integrating multiple devices on a single bus.
- 2Supports transmission speeds of up to 500 kbps for efficient data exchange.
- 3Offers IP20 protection, ensuring reliable operation in various environments.
- 4Compatible with solid and flexible conductors, accommodating different wiring configurations.
- 5Shares a standard installation cable for bus and supply cables, simplifying setup processes.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Connection method | Inline connector | Note on the connection method | Signal connection: 2-wire, 3-wire with supply voltage |
| ID code (dec.) | 191 | ID code (hex) | BF |
| Length code (hex) | 08 | Length code (dec) | 8 |
| Process data channel | 128 bit | Input address area | 16 Byte |
| Output address area | 16 Byte | Register length | 128 bit |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connector and labeling field |
| Operating mode | Process data mode with 8 words | Special properties | for the connection of MP-Bus devices |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 90 mA
typ. 70 mA |
| Power consumption | max. 675 mW
typ. 525 mW | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 20 mA
typ. 8 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 8 A | Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min |
| Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
