IB IL SGI 1/CAL

Product ID:17348
Updated: 2026/4/3

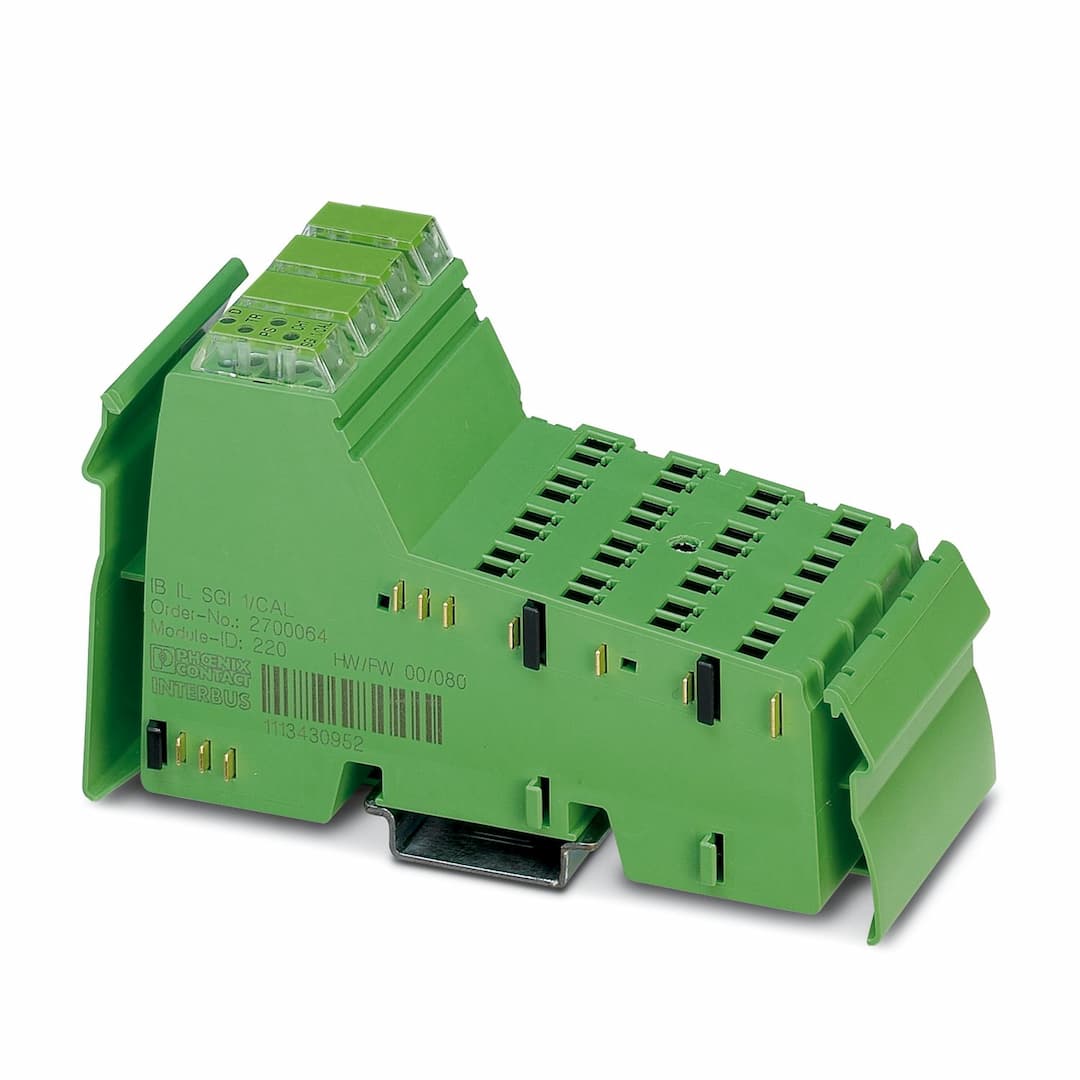

Phoenix Contact IB IL SGI 1/CAL

Key Features

  • 1Single Input for Strain Gauge: Ideal for setting up non-automatic weighing instruments (NAWI) with precise strain gauge input.
  • 2Electronic Evaluation Device: Includes evaluating electronics with EC type approval for reliable measurements.
  • 3Serial Interface for External Displays: Connects seamlessly with external weight displays via RS-485 serial interface.
  • 4Zero Point, Tare, and Standstill Display: Offers comprehensive display options including zero point, tare, and standstill values.
  • 5Parameterization and Calibration: Supports parameterization and calibration using FDT/DTM technology for precise settings.
Product Details
IB IL SGI 1/CAL
Phoenix Contact

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Width
48.8 mm
Height
120 mm
Depth
71.5 mm
Note on dimensions
Dimensions with covering hood
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Color
green
Connection method
Inline data jumper
Transmission speed
500 kbps
Designation
RS-485
Network
Yes
Addressing
Address 0 = Broadcast, alternating display of measured gross/net value and measured tare value Address 1 = Measured gross/net value Address 2 = Measured tare value Address 3 ... 9 = reserved
Termination resistor
120 Ω
Transmission protocol
STX/ETX
Memory type
Measurement protocol memory Alibi memory: non-volatile Flash memory 20 years
ID code (dec.)
220
ID code (hex)
DC
Length code (hex)
02
Length code (dec)
02
Process data channel
32 bit
Input address area
4 Byte
Output address area
4 Byte
Register length
64 bit
Required parameter data
23 Byte
Required configuration data
5 Byte
Description of the input
Input channel for strain gauge
Number of inputs
1
Connection technology
6-wire, twisted pair shielded cable
Bridge difference U
Measuring range specified by selecting the characteristic
Bridge voltage U
5 V
Measured value representation
Process data: status bits and measured value including decimal places of the gross/net display PCP: see PCP; test report meets the requirements of DIN  EN 45501 and OIML  R76
Process data update
typ. 100 ms
Characteristics
±1 mV/V, ±2 mV/V, ±3 mV/V, ±3.33 mV/V, ±4 mV/V, ±5 mV/V
Description
Lock of parameters
Quantity
1 (PS
Logic
PS
Typical response time
< 100 ms
Protective circuit
Short-circuit protection of the voltage outputs; Yes, at least 1 minute through temperature monitoring
Output description
Voltage output
Number of outputs
1
Impedance
> 55 Ω max. 5 kΩ
Output voltage
typ. 5 V ±2 % max. 5 V ±5 %
Output current
max. 90 mA
Maximum output current
max. 90 mA
Product type
I/O component
Type
modular Inline
Operating mode
Process data operation with 2 words, PCP with 2 words
Diagnostics messages
Failure of the power supply at U Failure of or insufficient communications power U I/O error Error message in the process data User error Error message in the process data
Description realtime clock
Second, minute, hour, day, month, year 5 years, timer buffered
Power consumption
typ. 1 W (Device in nominal operation) max. 2 W (Device with maximum load)
Supply voltage
7.5 V DC (via voltage jumper)
Current draw
max. 100 mA typ. 80 mA
Supply voltage
24 V DC (via voltage jumper)
Supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw
max. 50 mA typ. 12 mA (For a typical load of 350 Ω and display) 43 mA (for a maximum load of 55 Ω and display)
Test voltage: Logic/analog I/O (digital isolator)
500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (U
500 V AC, 50 Hz, 1 min
Test voltage: RS-485/analog I/O (isolating distance)
500 V AC, 50 Hz, 1 min
Test voltage: Contacts PS
500 V AC, 50 Hz, 1 min
Test voltage: Functional ground/analog I/O (isolating distance)
500 V AC, 50 Hz, 1 min
Test voltage: Logic/24 V supply (U
500 V AC, 50 Hz, 1 min
Test voltage: RS-485/24 V supply (U
500 V AC, 50 Hz, 1 min
Test voltage: Functional ground/24 V supply (U
500 V AC, 50 Hz, 1 min
Test voltage: Logic/RS-485 (digital isolator)
500 V AC, 50 Hz, 1 min
Test voltage: Functional ground/RS-485 (isolating distance)
500 V AC, 50 Hz, 1 min
Test voltage: Logic/contacts PS
500 V AC, 50 Hz, 1 min
Test voltage: Functional ground/contacts PS
500 V AC, 50 Hz, 1 min
Test voltage: Logic/functional ground (isolating distance)
500 V AC, 50 Hz, 1 min
Connection name
Inline connector
Connection method
Spring-cage connection
Conductor cross section rigid
0.08 mm² ... 1.5 mm²
Conductor cross section flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Connection method
Spring-cage connection
Conductor cross section, rigid
0.08 mm² ... 1.5 mm²
Conductor cross section, flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Connection method
Screw connection
Conductor cross section, rigid
0.14 mm² ... 1.5 mm²
Conductor cross section, flexible
0.14 mm² ... 1 mm²
Conductor cross section AWG
26 ... 16
Stripping length
8 mm
Ambient temperature (operation)
-25 °C ... 55 °C (Type approval according to DIN EN 45501 and OIML R76: -10°C ... 40°C)
Degree of protection
IP20
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Mounting type
DIN rail mounting
