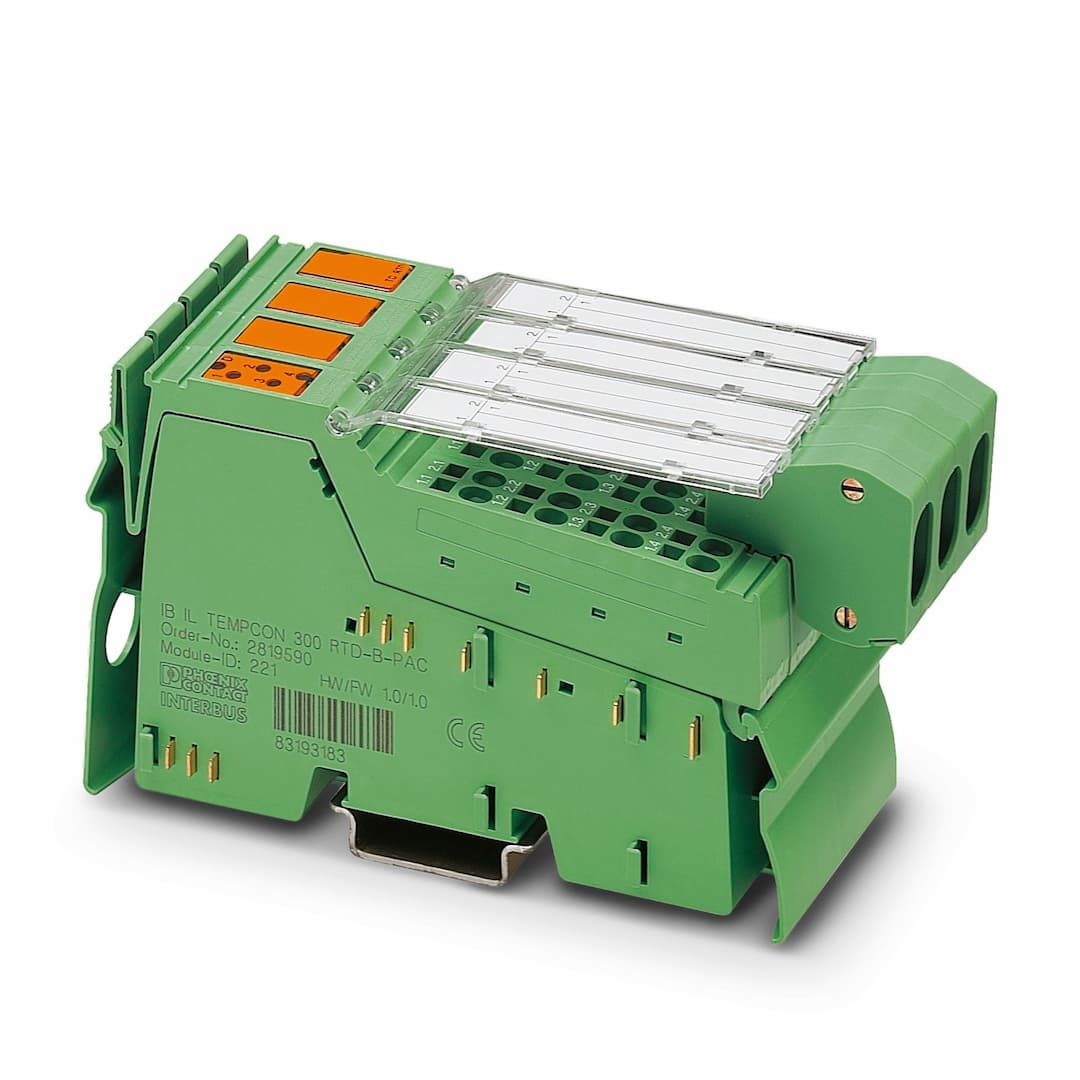

IB IL TEMPCON RTD-PAC
Product ID:17295
Updated: 2026/8/4
Key Features
- 1Precision Temperature Control: Regulate temperatures with high accuracy using 6 inputs and 6 outputs.
- 2Versatile Connectivity: Supports 2 and 3-wire connection methods for various sensor types.
- 3Durable Design: Built with a spring-cage connection and IP20 degree of protection for reliable operation.
- 4Easy Installation: Mounts easily on DIN rail for convenient integration into industrial systems.
- 5Comprehensive Accessories: Includes connector and labeling field for complete setup and organization.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 136.8 mm |
| Depth | 71.5 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Connection method | V.24 | ID code (dec.) | 191 |
| ID code (hex) | BF | Length code (hex) | 02 |
| Length code (dec) | 02 | Process data channel | 32 bit |
| Input address area | 4 Byte | Output address area | 4 Byte |
| Register length | 32 bit | Required parameter data | 1 Byte |
| Required configuration data | 5 Byte | Output voltage | 24 V DC |
| Output current | 70 mA | Product type | I/O component |
| Product family | Inline | Type | modular |
| No. of channels | 6 | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min
Analog inputs/bus logics 500 V AC 50 Hz 1 min
Analog inputs / 24 V supply (I/O) 500 V AC 50 Hz 1 min
Analog inputs/functional ground 500 V AC 50 Hz 1 min |
| Supply voltage | 24 V DC | Communications power U | 7.5 V DC |
| Max. current consumption | 4 A | Typical current consumption | 250 mA |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
