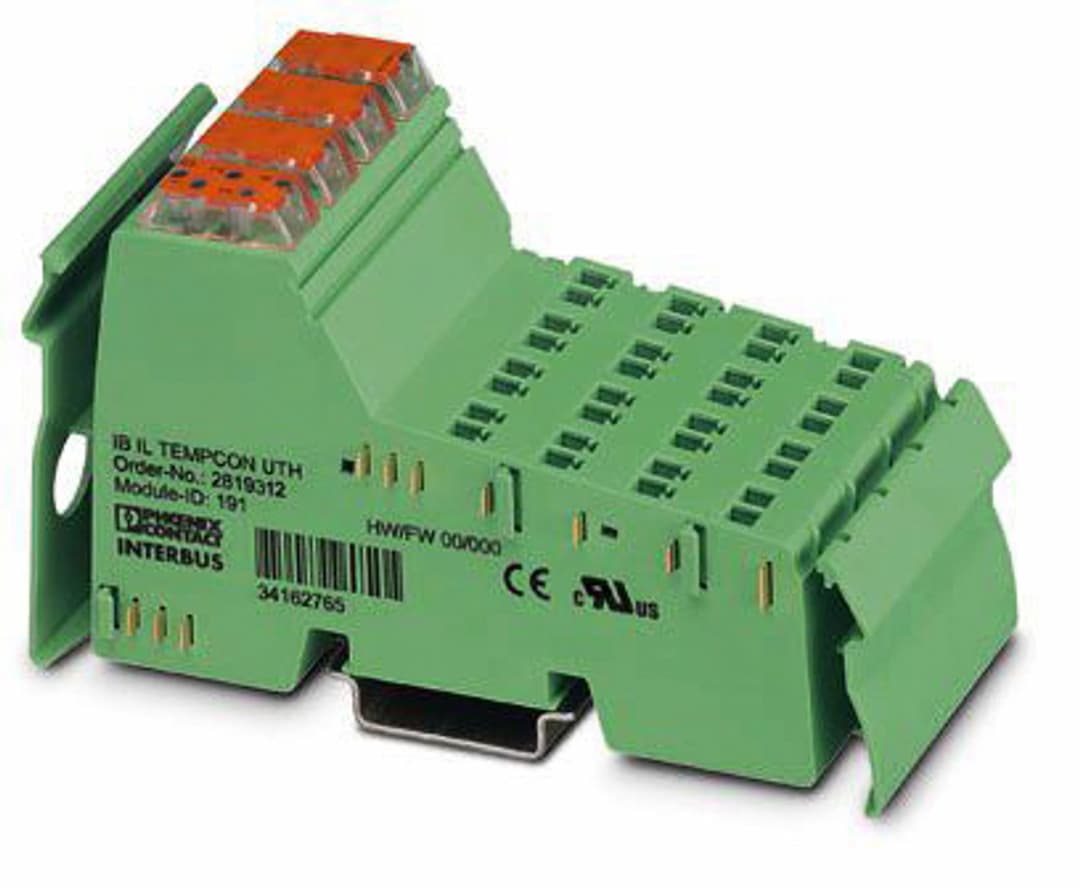

IB IL TEMPCON UTH
Product ID:18995
Updated: 2026/8/2
Key Features
- 1Advanced Temperature Control: Freely parameterizable slave for the Inline installation system.
- 2Expandable to 30 Circuits: Can be extended by up to 30 closed-loop control circuits using additional temperature measurement terminals.
- 3High-Speed Transmission: Transmission speed of 500 kbps ensures efficient data transfer.
- 4Versatile Sensor Compatibility: Supports various thermocouple types (L, J, K, N, S, R, T, C, D, E, B).
- 5Compact Design: Dimensions: 48.8 mm width, 119.8 mm height, 71.5 mm depth, IP20 protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 191 |
| ID code (hex) | BF | Length code (hex) | 02 |
| Length code (dec) | 02 | Process data channel | 32 bit |
| Input address area | 4 Byte | Output address area | 4 Byte |
| Register length | 32 bit | Required parameter data | 1 Byte |
| Output current | 70 mA | Product type | I/O component |
| Product family | Inline | Type | modular |
| No. of channels | 8 | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
Analog inputs/bus logics 500 V AC 50 Hz 1 min
Analog inputs / 24 V supply (I/O) 500 V AC 50 Hz 1 min
Analog inputs/functional ground 500 V AC 50 Hz 1 min |
| Max. current consumption | 4 A | Typical current consumption | 250 mA |
| Connection method | Spring-cage connection | Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
