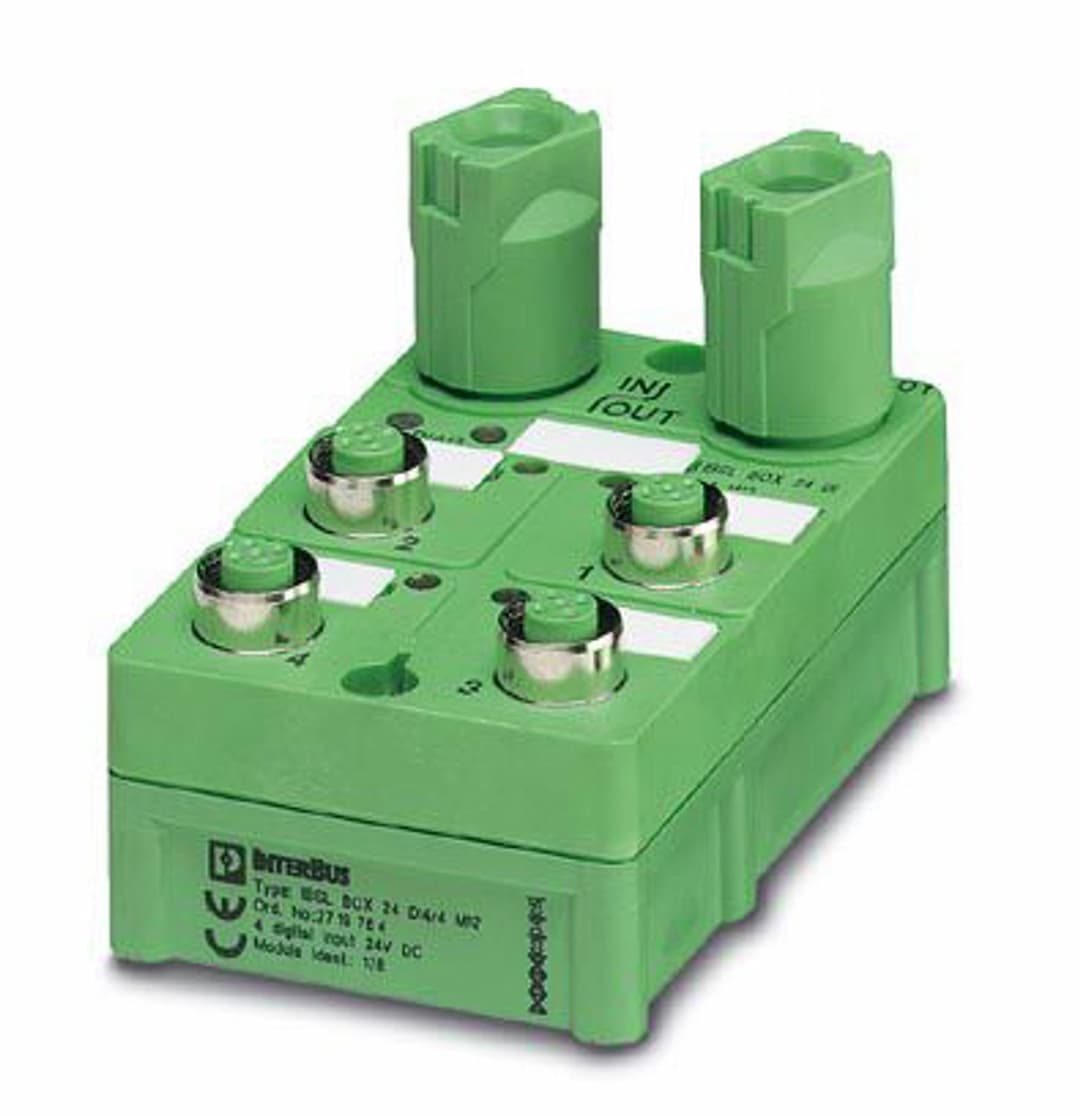

IB L2 BOX 24 DI 4/4 M12-D
Product ID:17372
Updated: 2026/8/4
Key Features
- 1Digital Input Module: 4 digital inputs for versatile connectivity.
- 224 V DC Operation: Compatible with 24 V DC power supply.
- 34-Conductor Connection: Utilizes 4-conductor connection technology for reliability.
- 4IP65/IP67 Protection: Offers robust protection against dust and water.
- 5Cross-Connected Inputs: Enhances functionality with cross-connected inputs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| I/O voltage | 24 V DC (via INTERBUS-Loop 2) | I/O voltage range | 19.2 V DC ... 30 V DC |
| Residual ripple | ± 1.2 V DC | Typical current consumption | 40 mA (from INTERBUS-Loop 2) |
| Number of inputs | 4 | Input voltage | 24 V DC |
| Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 13 V ... 30 V |
| Connection technology | 4-conductor | Typical input current per channel | 3 mA (at 24 V DC) |
| Connection method | QUICKON fast connection | Transmission physics | Copper |
| Width | 62 mm | Height | 60 mm |
| Length | 95 mm |
Specifications may be subject to change without notice
