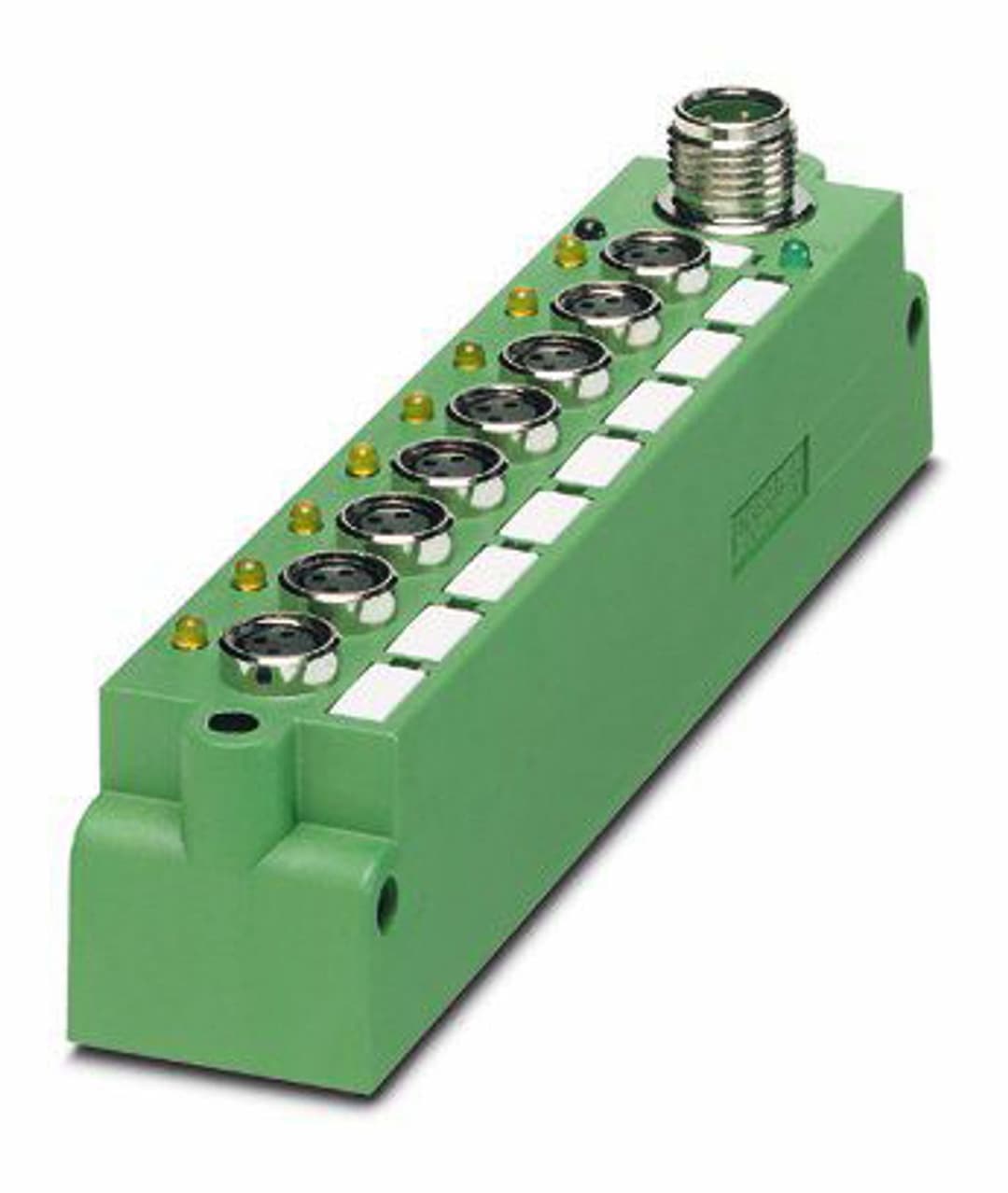

IB L2-M BOX 24 DIO 4/4/8 M8
Product ID:17475
Updated: 2026/8/4
Key Features
- 1IP67 protection ensures the module operates in harsh environments.
- 2Equipped with M8 screw connectors for easy installation.
- 3Designed for continuous operation in industrial settings.
- 4Includes white marking labels for clear identification.
- 5Compatible with 24 V DC power supply.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Supply voltage | 24 V DC (via INTERBUS-Loop 2) | Supply voltage range | 19.2 V ... 30 V |
| Residual ripple | ± 1.2 V | Typical current consumption | 60 mA (from INTERBUS-Loop 2) |
| Number of inputs | 4 | Input voltage | 24 V |
| Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 11 V ... 30 V |
| Connection technology | 3-conductor, M8 screw connector | Typical input current per channel | 3 mA (typical, at 24 V) |
| Number of outputs | 4 | Output voltage | U |
| Protective circuit | Short-circuit and overload protection | Connection method | an M12 plug |
| Width | 26 mm | Height | 26 mm |
| Length | 139 mm | Color | green |
Specifications may be subject to change without notice
