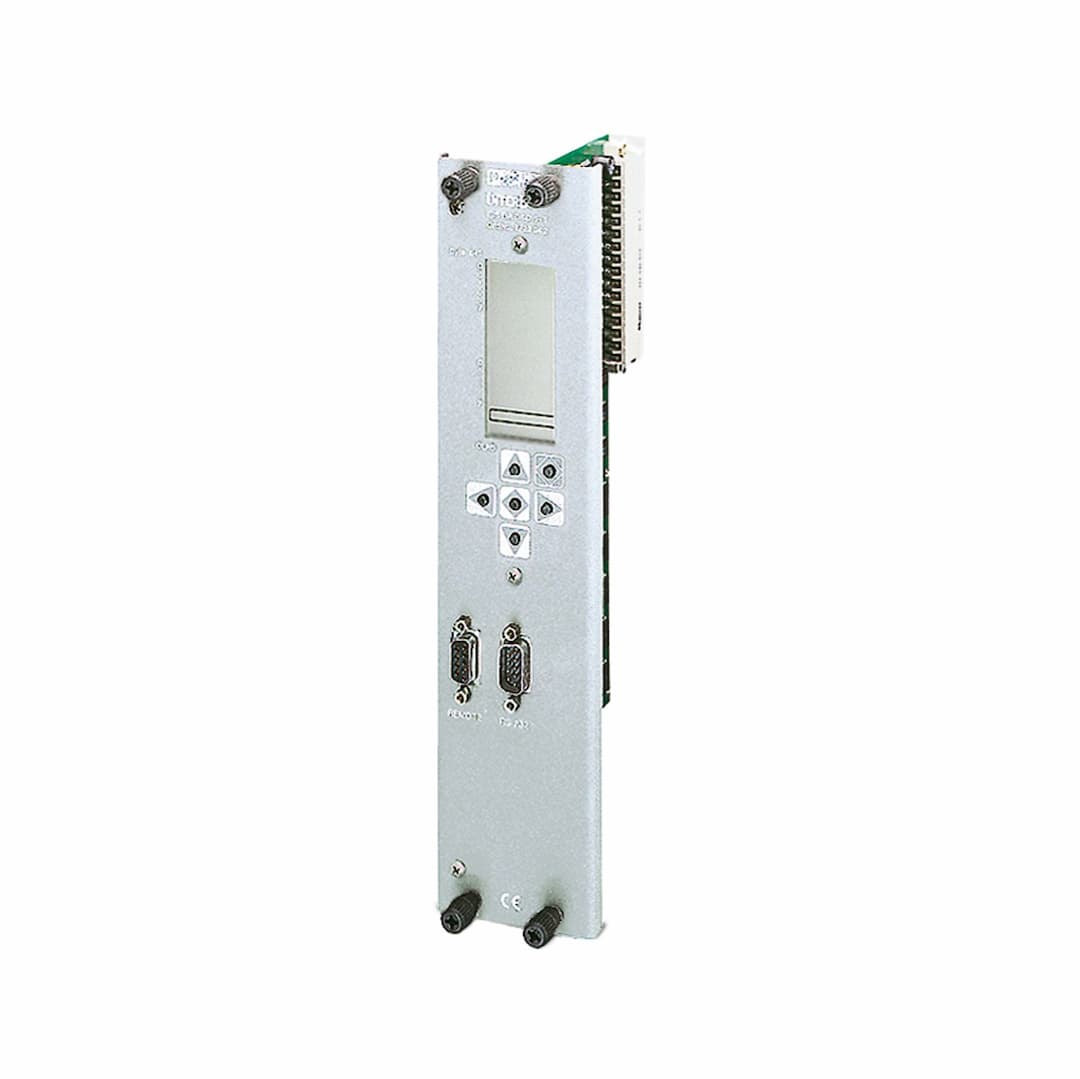

IBS BA DSC/I-T
Product ID:18255
Updated: 2026/8/3
Key Features
- 1Designed for consistent and reliable operation in remote control applications.
- 2Guaranteed for 12 months, ensuring peace of mind with your purchase.
- 3Built with high-quality components to ensure durability and efficiency.
- 4Simple integration into existing systems, minimizing setup time and effort.
- 5Backed by comprehensive technical support for any queries or issues.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | PLC controller board | Set comprises | 2725930 IBS BA DSC SYSKIT
2725927 IBS BA DSC SYSKIT E |
| Format | 2 slots | Occupied areas per board | adjustable |
| IE/OE field | 0 ... 255 inputs and outputs | Number of devices with parameter channel | max. 62 |
| Monitored function | Operating status | Optical representation | Via four-line LCD |
| Local diagnostics | Operating status Via four-line LCD
Error status Via four-line LCD
I/O status Via four-line LCD | Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 12 W | Supply voltage | 12 V DC |
| Supply voltage range | 11 V DC ... 12.8 V DC (including ripple) | Power supply connection | Via Bosch CMOS bus, up to 8 boards can be plugged in |
| Typical current consumption | 1 A | Interrupts | Are not supported |
| Connection method | Bosch CL 300 A, CL 350, CL 400/401, CL 500/501 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
| Connection method | RS-232-C, D-SUB 9-pos. socket strip | Degree of protection | IP20 |
| Mounting type | In the host system |
Specifications may be subject to change without notice
