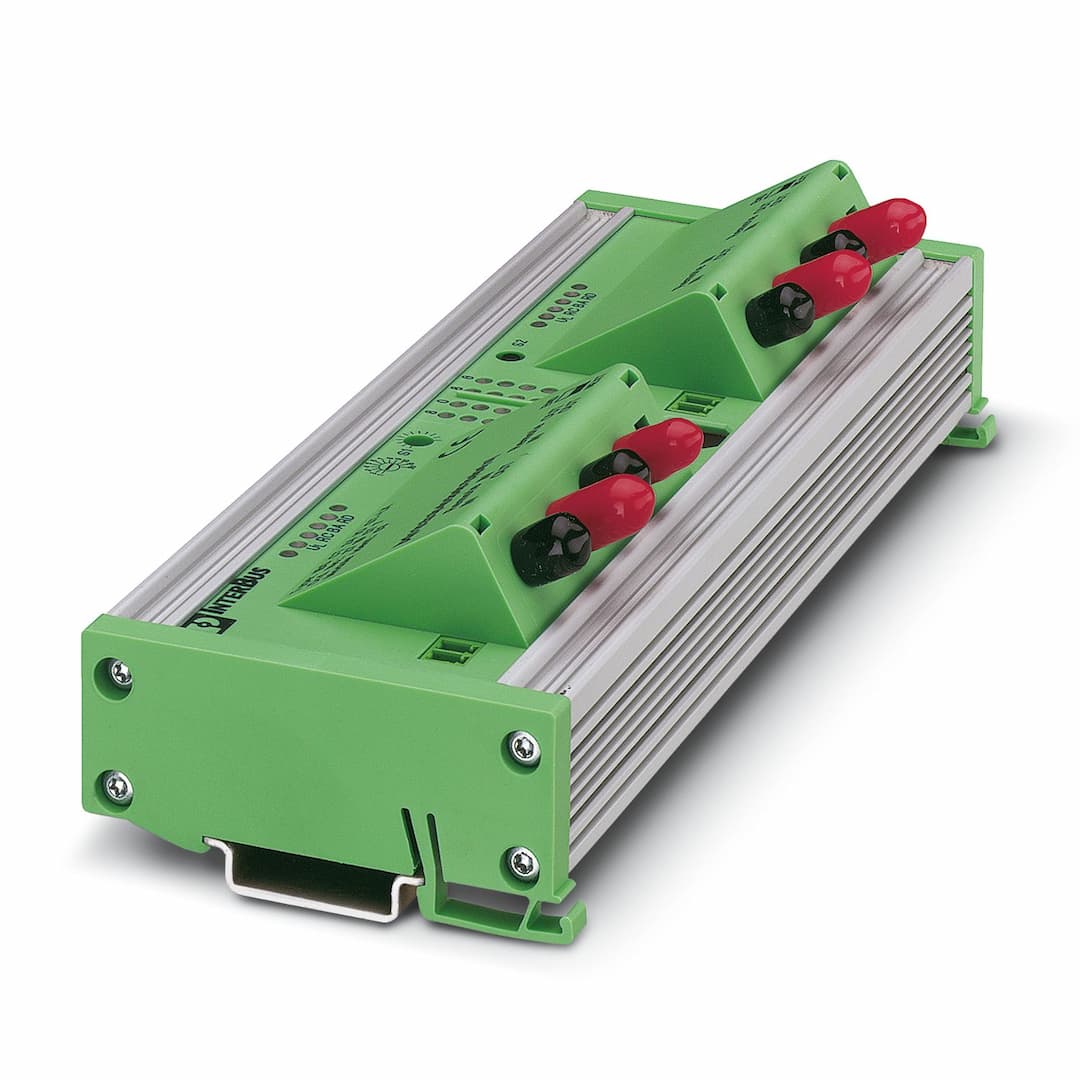

IBS CT 24 IO GT-LK
Product ID:20736
Updated: 2026/7/30
Key Features
- 1Bi-directional data transfer between two INTERBUS systems.
- 2Electrical isolation and redundant 24 V DC power supply.
- 3Diagnostic and status indicators via 16 status LEDs per bus line.
- 4DIN rail mounting for easy installation.
- 5Supports up to 10 words (160 bits) per data cycle with configurable data width.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | Block design | Protective circuit | Surge protection
Reverse polarity protection; Serial diode |
| Power dissipation | 3 W | Supply voltage | 24 V DC |
| Supply voltage range | 20 V ... 30 V (including ripple) | Residual ripple | 3.6 V |
| Typical current consumption | 160 mA | Connection method | F-SMA connector |
| Width | 204 mm | Height | 77 mm |
| Depth | 37 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
