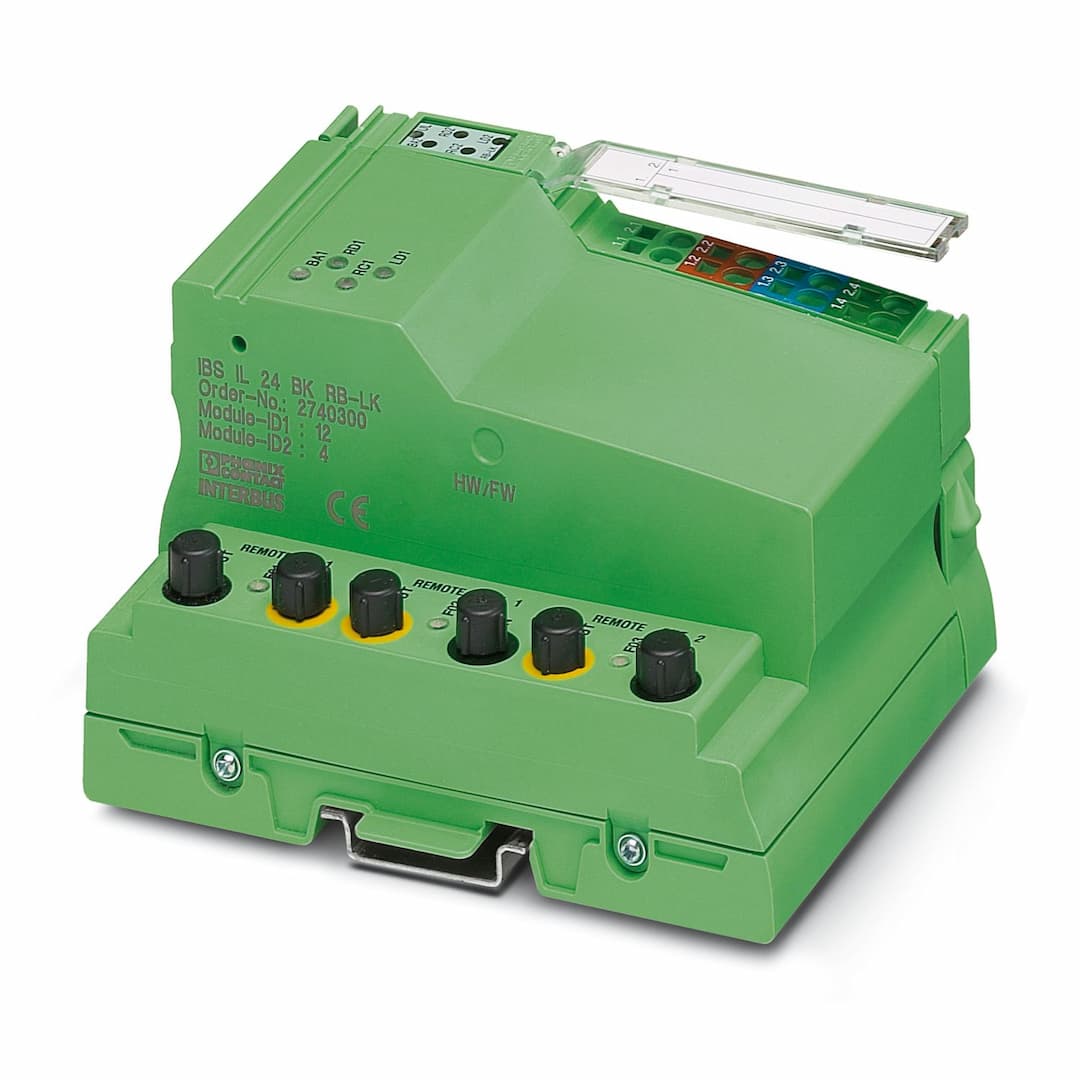

IBS IL 24 BK RB-LK-PAC
Product ID:17895
Updated: 2026/8/4
Key Features
- 1Fiber Optic Technology: Utilizes fiber optic connections for remote bus connections.
- 2Optical Path Diagnostics: Provides optical path diagnostics for enhanced reliability.
- 3High Connectivity: Supports up to 63 local bus devices and 15 branch terminals.
- 4Durable Design: Meets IP20 degree of protection and operates within -25°C to 55°C.
- 5Versatile Power Supply: Offers 24 V DC supply voltage with a range of 19.2 V DC to 30 V DC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 85 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Number of interfaces | 3 |
| Connection method | F-SMA connector | Transmission speed | 500 kbps |
| Transmission physics | FO | Number of interfaces | 1 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Transmission physics | FO | Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | 62 | Number of supported branch terminals with remote bus branch | max. 15 |
| ID code (dec.) | 12 | ID code (hex) | 0C |
| Length code (hex) | 0 | Length code (dec) | 0 |
| Process data channel | 0 bit | Input address area | 0 Byte |
| Register length | 0 bit | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connector and labeling field | Special properties | integrated remote bus branch |
| Article revision | 07 | Maximum power dissipation for nominal condition | 31.2 W |
| Protective circuit | Reverse polarity protection | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.3 A (with max. number of connected I/O terminal blocks)
typ. 120 mA (without connected Inline I/O terminals) |
| Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
