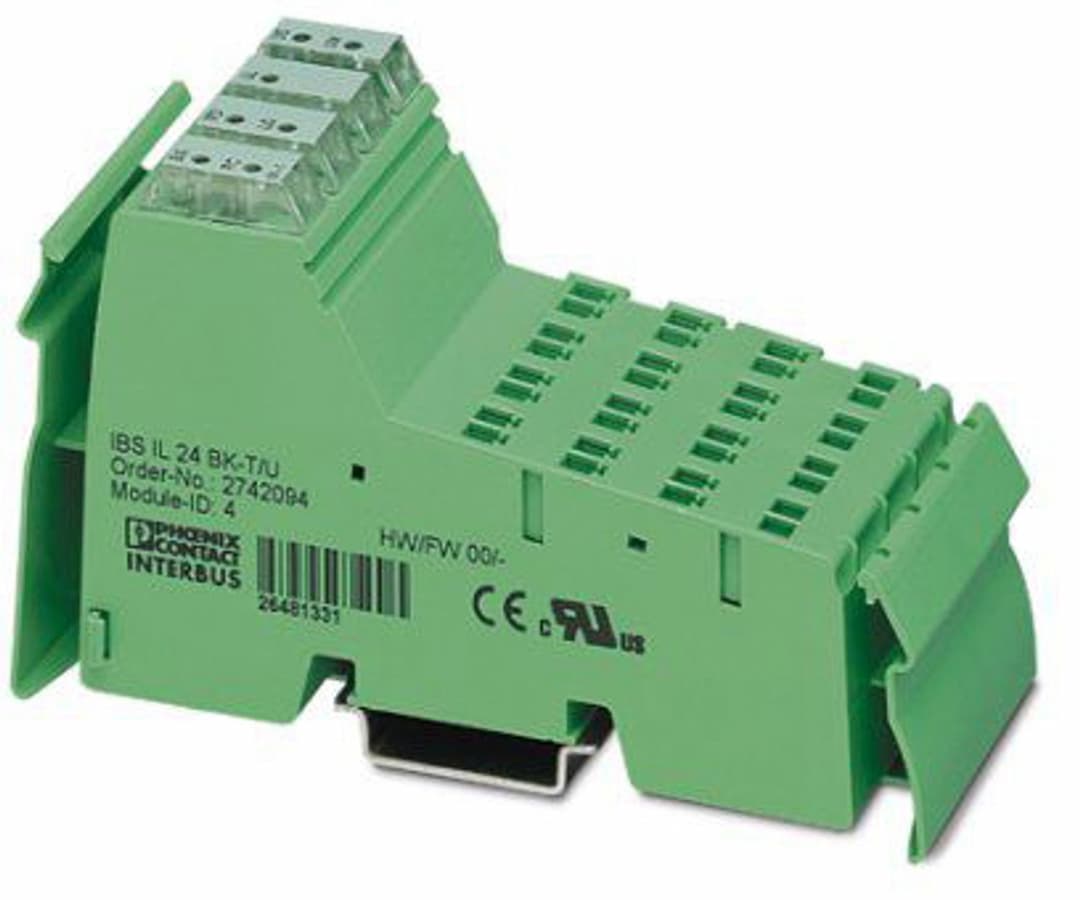

IBS IL 24 BK-T/LC
Product ID:17159
Updated: 2026/8/5
Key Features
- 1Ensures safe operation by isolating logic and I/O areas.
- 2Supports 500 kBit/s transmission speed for efficient data transfer.
- 3Built to withstand harsh industrial environments with a durable housing.
- 4Compatible with various Inline terminals and modules for flexible configurations.
- 5Meets multiple international safety standards including UL, cUL, and ATEX approvals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Transmission speed | 500 kbps | Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | 63 | ID code (hex) | 4 |
| Product type | I/O component | Product family | Inline |
| Type | modular | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 7.5 V DC ±5 % |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
