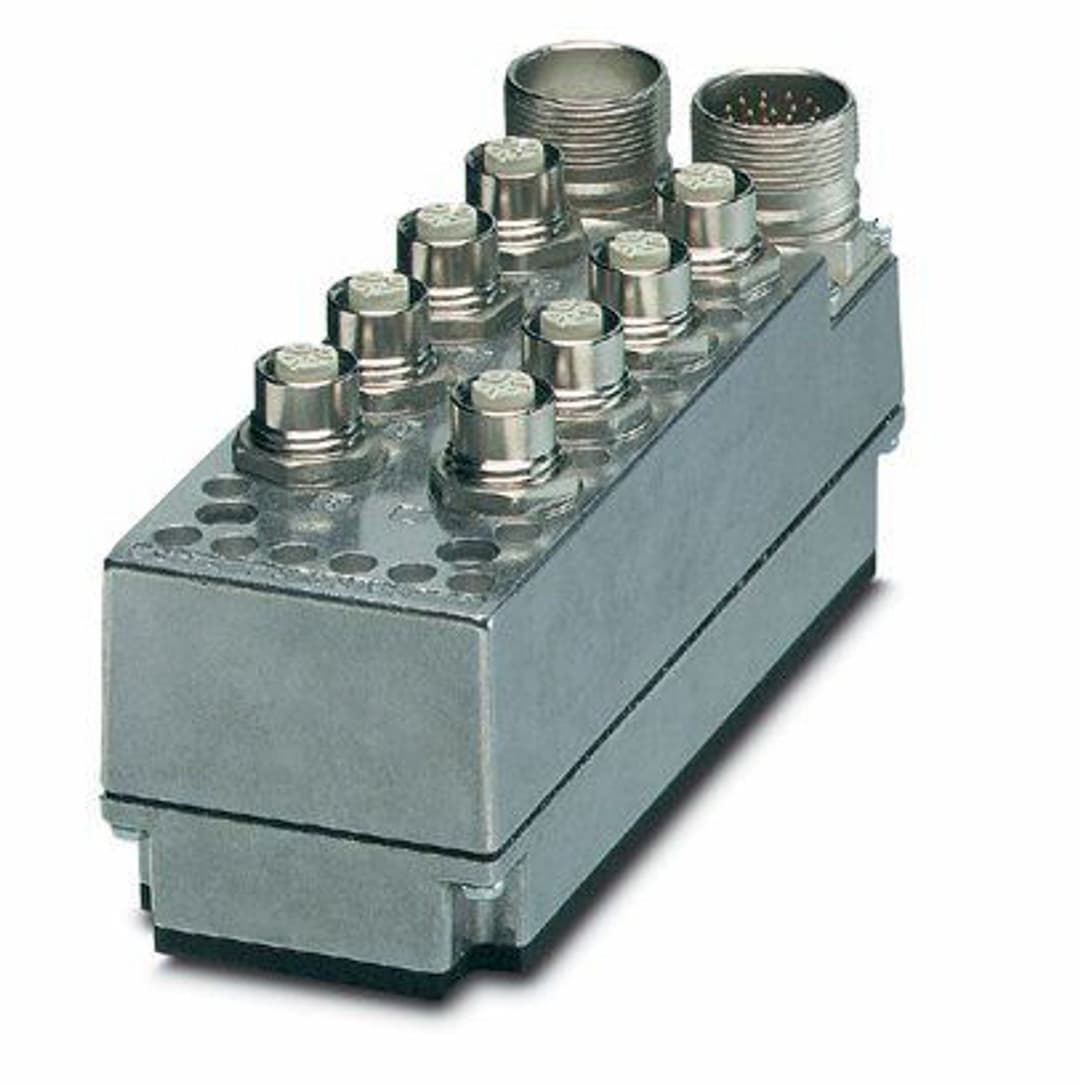

IBS IP CDIO/R 24-8/SF
Product ID:19473
Updated: 2026/8/1
Key Features
- 1IP65 Protection: Durable and resistant to dust and water.
- 2Versatile Connectivity: 8 inputs and 8 outputs, connectable via 4-wire or 3-wire methods.
- 3Robust Design: Metal housing suitable for welding applications and direct mounting on welding transformers.
- 4Electrical Isolation: Ensures safe operation with electrical isolation of I/O and bus logic.
- 5Comprehensive Safety Features: Includes short-circuit protection and polarity reversal protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 54 mm | Height | 150 mm |
| Depth | 62 mm | Transmission speed | 500 Mbps |
| Error messages via the bus | Short-circuit or overload of the initiator power supply
Short-circuit or overload of the output | Number of inputs | 8 |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V ... 5 V |
| Input voltage range "1" signal | 13 V ... 30 V | Protective circuit | Short-circuit protection, polarity reversal protection |
| Connection technology | 4-conductor | Number of outputs | 7 |
| Protective circuit | Short-circuit protection, polarity reversal protection | Product type | I/O component |
| Type | Block design | Supply voltage | 24 V DC |
| Supply voltage range | 18.5 V ... 30.5 V (including ripple) | Residual ripple | 3.6 V |
| Connection method | M17 circular connector | Degree of protection | IP65 |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
