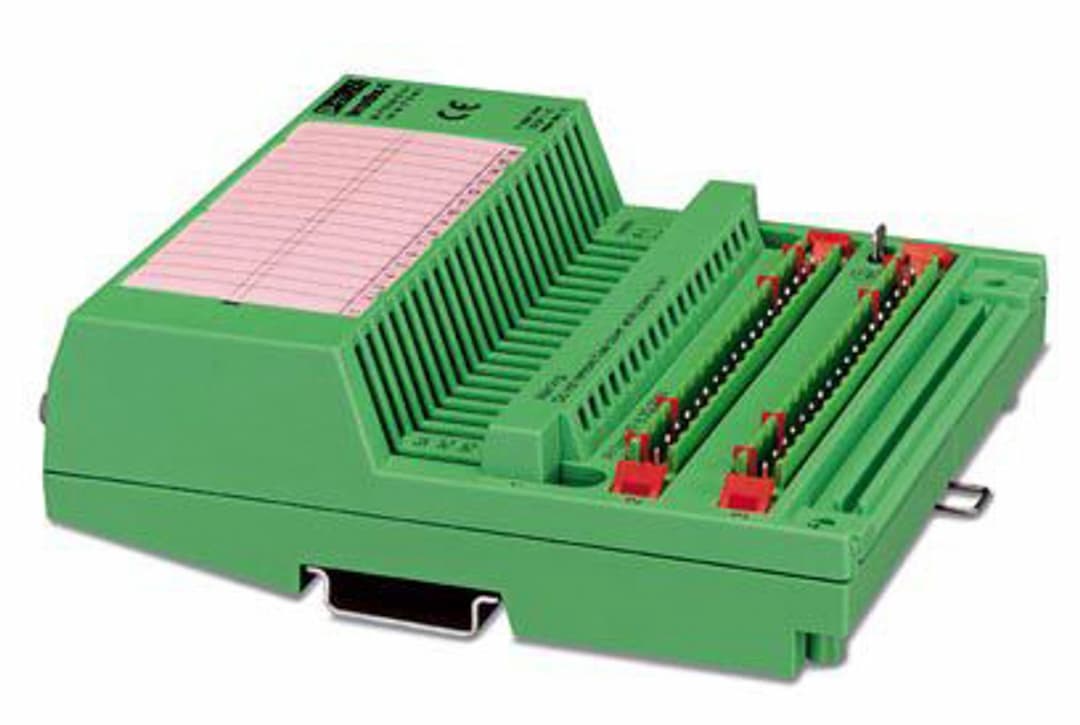

IBS RT120/230 DO 16-T
Product ID:17449
Updated: 2026/8/4
Key Features
- 116 digital outputs for versatile control applications.
- 2Compatible with 24-230 V AC, ensuring broad voltage range.
- 3Compact design with integrated bus terminal function.
- 4Easy installation via COMBICON screw terminals or spring-loaded connectors.
- 5Diagnostic LEDs and bus diagnostic displays for real-time status monitoring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| I/O voltage | 120 V AC (up to 230 V AC) | Typical current consumption | 40 mA at 120 V AC, 30 mA at 230 V AC |
| Number of outputs | 16 | Connection method | D-SUB-9 |
| Width | 125 mm | Height | 44 mm |
| Length | 146 mm | Color | green |
Specifications may be subject to change without notice
