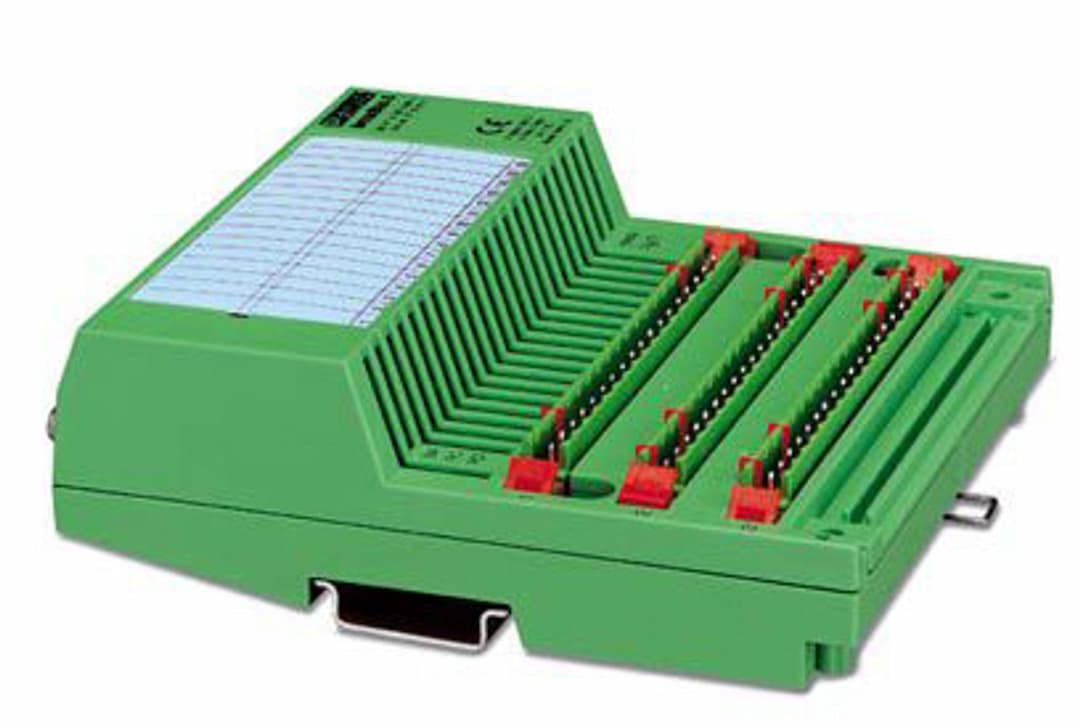

IBS RT230 DI 16-T
Product ID:20709
Updated: 2026/8/6
Key Features
- 1Compact design for easy installation in control cabinets and distribution boxes.
- 2Digital input module with 16 inputs in 24 V DC, 120 V AC, and 230 V AC versions.
- 3Integrated bus terminal function for a highly compact structure.
- 4Secure connection via COMBICON screw terminals or spring-loaded connectors.
- 5Status LEDs and bus diagnostic displays for real-time monitoring of the unit's status.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Power dissipation | 7 W | I/O voltage | 230 V AC |
| I/O voltage range | 108 V DC ... 132 V DC | Typical current consumption | 30 mA |
| Number of inputs | 16 | Input voltage | 230 V AC |
| Input voltage range "0" signal | 0 V AC ... 40 V AC | Input voltage range "1" signal | 164 V AC ... 253 V AC |
| Connection technology | 3-conductor (4-conductor as an option) | Typical input current per channel | 6 mA (at 230 V AC) |
| Length | 146 mm |
Specifications may be subject to change without notice
