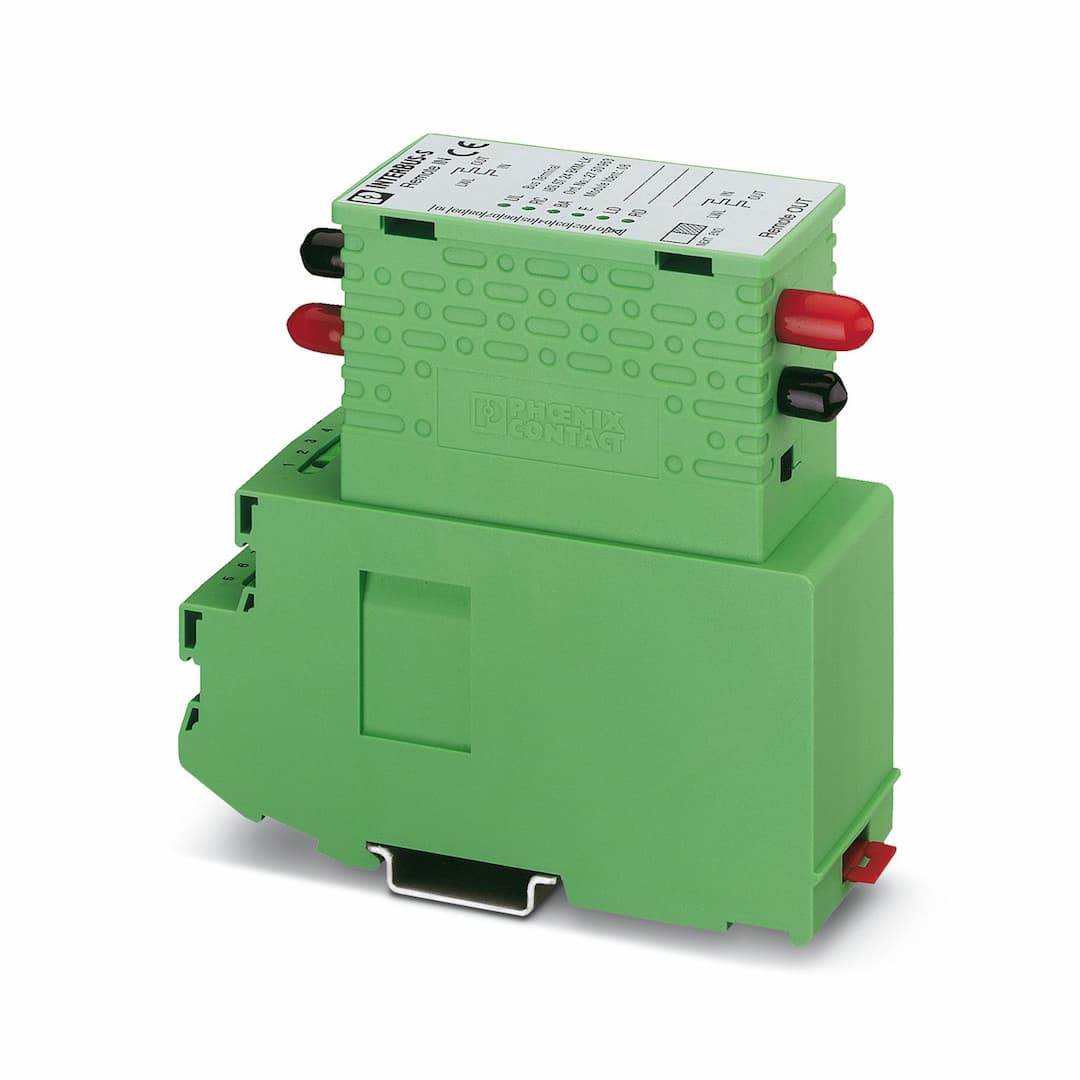

IBS ST 24 BKM-LK
Product ID:17492
Updated: 2026/8/4
Key Features
- 1Optical Fiber F-SMA Connector: Connects devices via high-speed optical fiber.
- 2IP20 Protection: Ensures safe operation in industrial environments.
- 3Automatic Interface Detection: Simplifies setup with automatic detection.
- 4Electrical Isolation: Protects against electrical shocks and faults.
- 5Diagnostic and Status Indicators: Easy monitoring with built-in diagnostics and status indicators.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44 mm | Height | 117 mm |
| Length | 116 mm | Connection method | 4x F-SMA connector |
| Transmission speed | 500 kbps | Connection method | ST local bus connector |
| Transmission speed | 500 kbps | Product type | I/O component |
| Product family | Smart Terminal ST | Type | modular |
| Test section | Between supply voltage and ST local bus 500 V AC 50 Hz 1 min | I/O voltage | 24 V DC |
| I/O voltage range | 20 V DC ... 30 V DC | Residual ripple | ± 1.2 V |
| Max. current consumption | 300 mA (for max. terminal configuration)
500 mA (of all I/O modules max.) | Typical current consumption | 70 mA (without connected ST I/O modules) |
| Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
