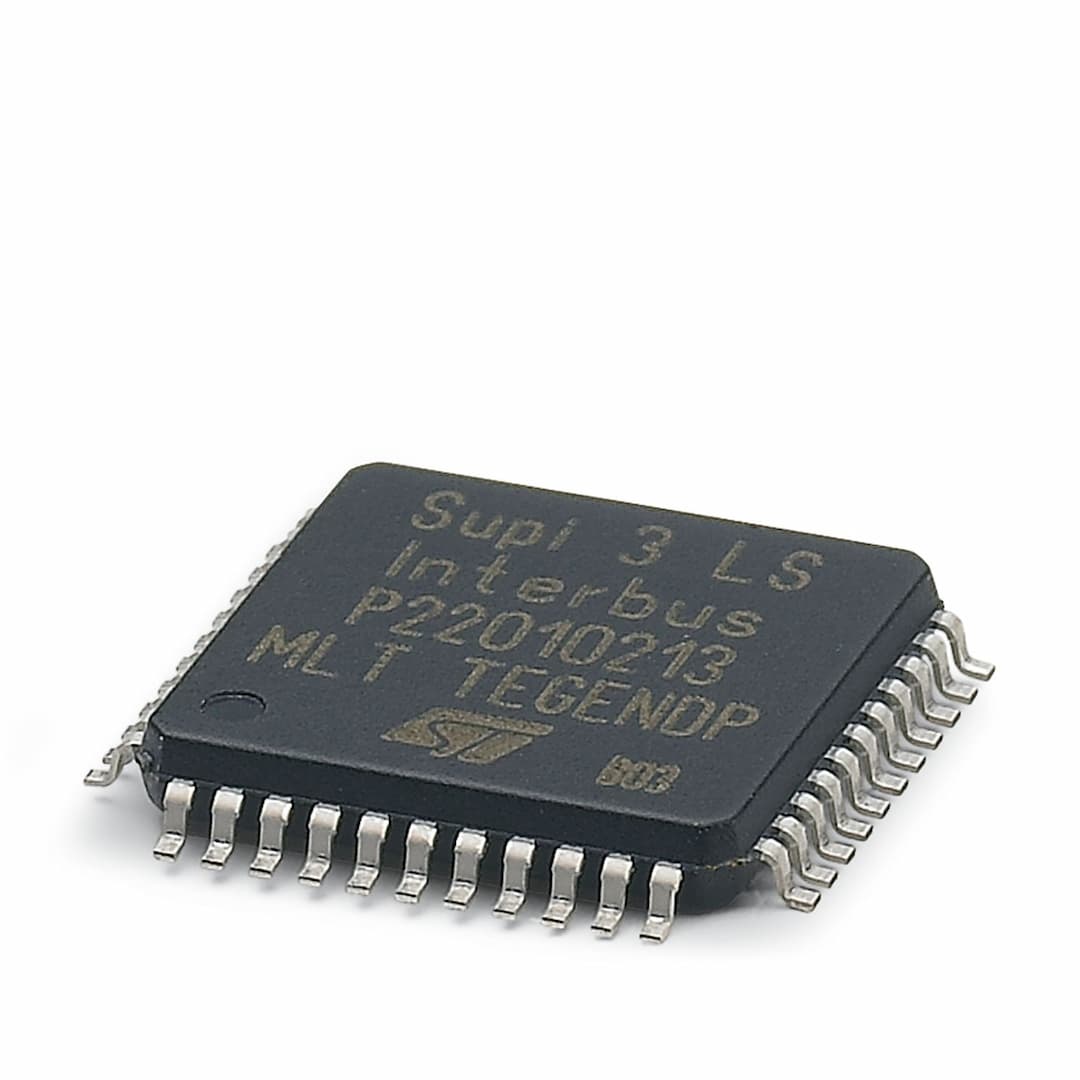

IBS SUPI 3 LS
Product ID:20979
Updated: 2026/7/12
Key Features
- 1Advanced Digital I/O Interfaces: Supports MFP interface, digital I/O (2-8 IN/OUT, 16 IN/16OUT), SPI master interface, and serial microprocessor interface.
- 2Robust Ambient Temperature Operation: Operates from -40 °C to 85 °C with up to 75% humidity, ensuring reliable performance in harsh environments.
- 3Compact Design: Measuring 12 mm in width, depth, and length, making it suitable for space-constrained industrial applications.
- 4Low Power Consumption: Consumes only 40 mA without analog control, reducing power costs and heat generation.
- 5Compliance with EU and China RoHS: Meets EU RoHS and China RoHS standards, ensuring environmentally friendly use and compliance with regulatory requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Protocol chip |
| Type | TQFP 44 | Internal data length | 32-bit internal, external expansion possible |
| IC power supply voltage | 5 V DC ±10 % (DC) | Typical current consumption | 40 mA |
| Connection method | Remote bus/local bus | Width | 12 mm |
| Depth | 12 mm | Length | 12 mm |
| Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) |
| Ambient temperature (storage/transport) | 5 °C ... 30 °C (at max. 60 %) |
Specifications may be subject to change without notice
