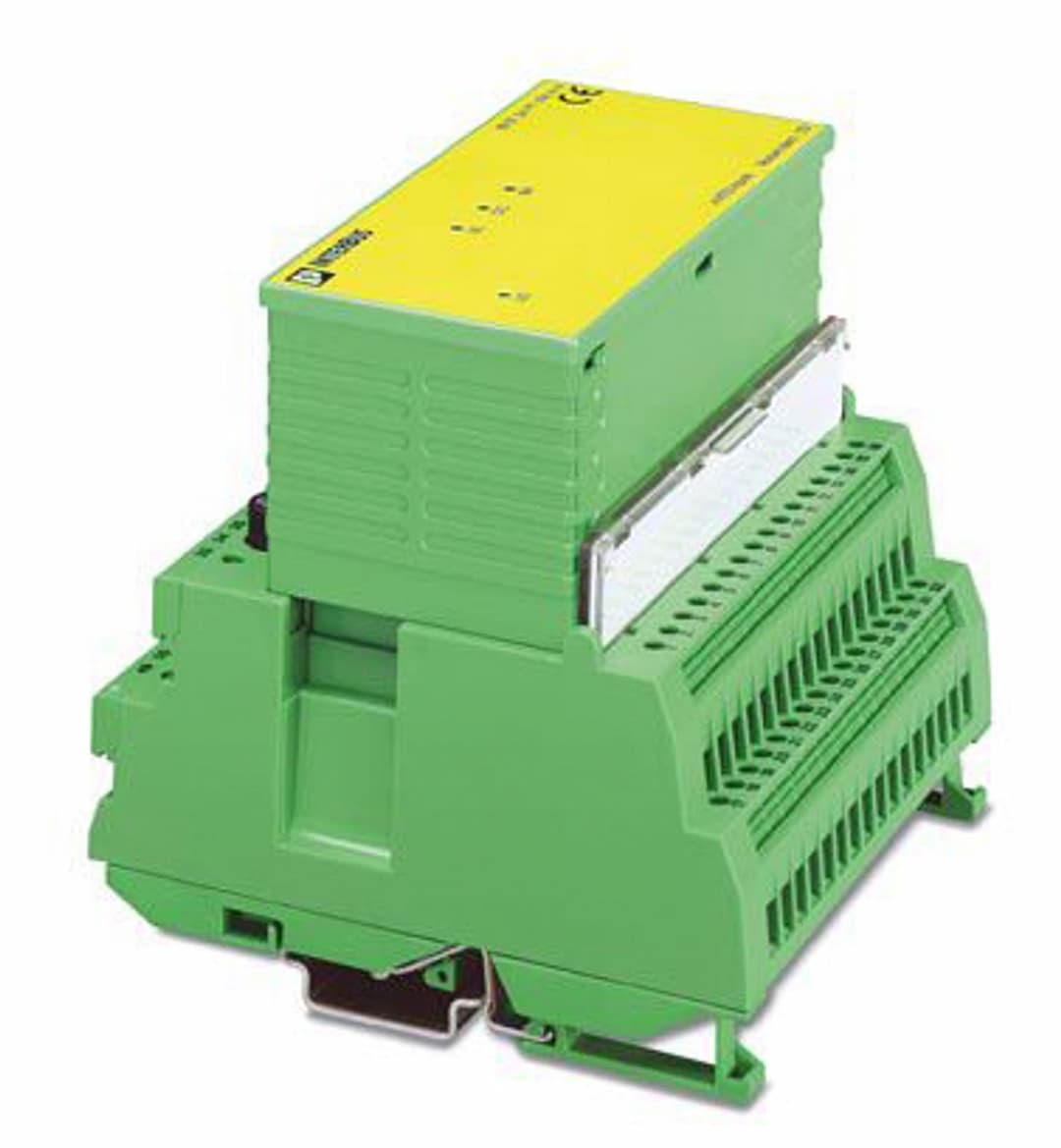

IB ST 24 UTH 8
Product ID:20472
Updated: 2026/7/31
Key Features
- 1High-Performance Analog Input Module: The IB ST 24 UTH 8 offers 8 analog inputs for precise data collection in industrial settings.
- 2Durable Design: Built with IP20 protection, ensuring reliable operation in harsh environments.
- 3Easy Installation: Features a terminal part with screw connection for straightforward integration.
- 4Versatile Connectivity: Supports 2-conductor connection, suitable for various industrial configurations.
- 5Comprehensive Compatibility: Compatible with INTERBUS-ST systems, enhancing system integration capabilities.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 118 mm | Height | 117 mm |
| Length | 116 mm | Connection method | ST local bus connector |
| Transmission speed | 500 kbps | Transmission length | 116 mm |
| Product type | I/O component | Product family | Smart Terminal ST |
| Type | modular | No. of channels | 8 |
| Test section | Bus/Inputs 500 V AC 50 Hz 1 min
Supply voltage/inputs 500 V AC 50 Hz 1 min
Supply voltage/Ground conductor 500 V AC 50 Hz 1 min
I/O voltage/Ground conductor 500 V AC 50 Hz 1 min | Communications power U | 9 V DC (from the ST local bus) |
| I/O voltage | 24 V DC | I/O voltage range | 18.5 V DC ... 30.2 V DC |
| Residual ripple | ± 1.2 V DC | Max. current consumption | 135 mA (from the ST local bus)
85 mA (to U |
| Typical current consumption | 110 mA (from the ST local bus)
35 mA (to U | Connection name | Terminal block |
| Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
