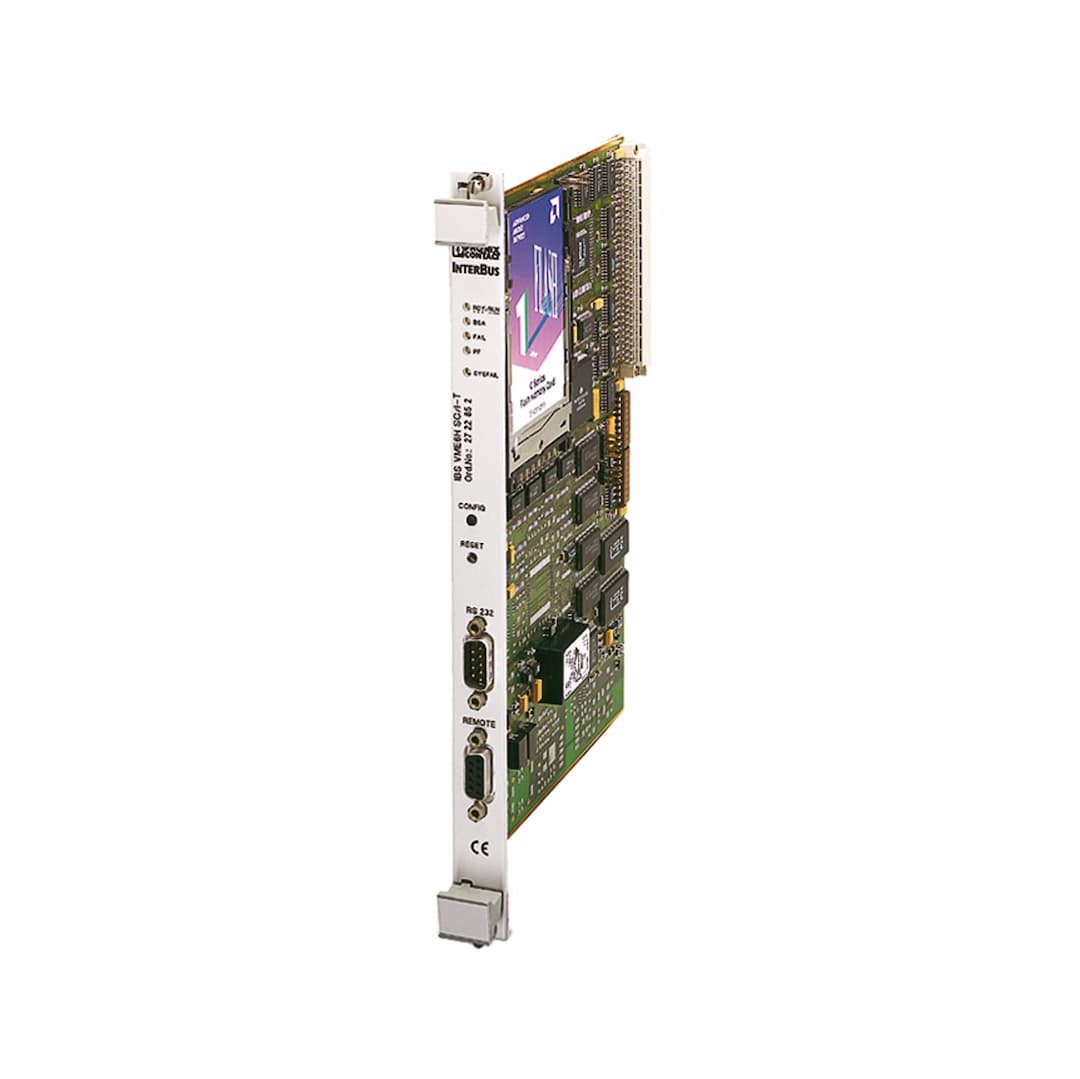

IBS VME6H SC/I-T
Product ID:18875
Updated: 2026/8/2
Key Features
- 1Electrical Isolation: Ensures safe and reliable operation in harsh environments.
- 2High-Performance Interface: Supports 6 HE-VME bus systems with robust connectivity options.
- 3Versatile Connectivity: Features a 9-pos. D-SUB female connector and optional optical fiber interface.
- 4Advanced Diagnostics: Includes local diagnostics with 3 LEDs for real-time monitoring.
- 5Compliance and Safety: Meets CUL standards and is environmentally friendly with China RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | PLC controller board | Format | 6 rack units, 1 slot |
| Data storage system | MPM, base address adjustable | Number of devices with parameter channel | max. 62 |
| Monitored function | Operating status | Optical representation | 3 LEDs |
| Local diagnostics | Operating status 3 LEDs
Error status 2 LEDs | Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 3 W | Supply voltage | 5 V DC |
| Supply voltage range | 4.9 V DC ... 5.3 V DC | Residual ripple | 0.1 V |
| Typical current consumption | 590 mA | Connection method | Via VMEbus connector P1 |
| Interrupts | Level 1-7, vector 0 - 255 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
| Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) |
| Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
