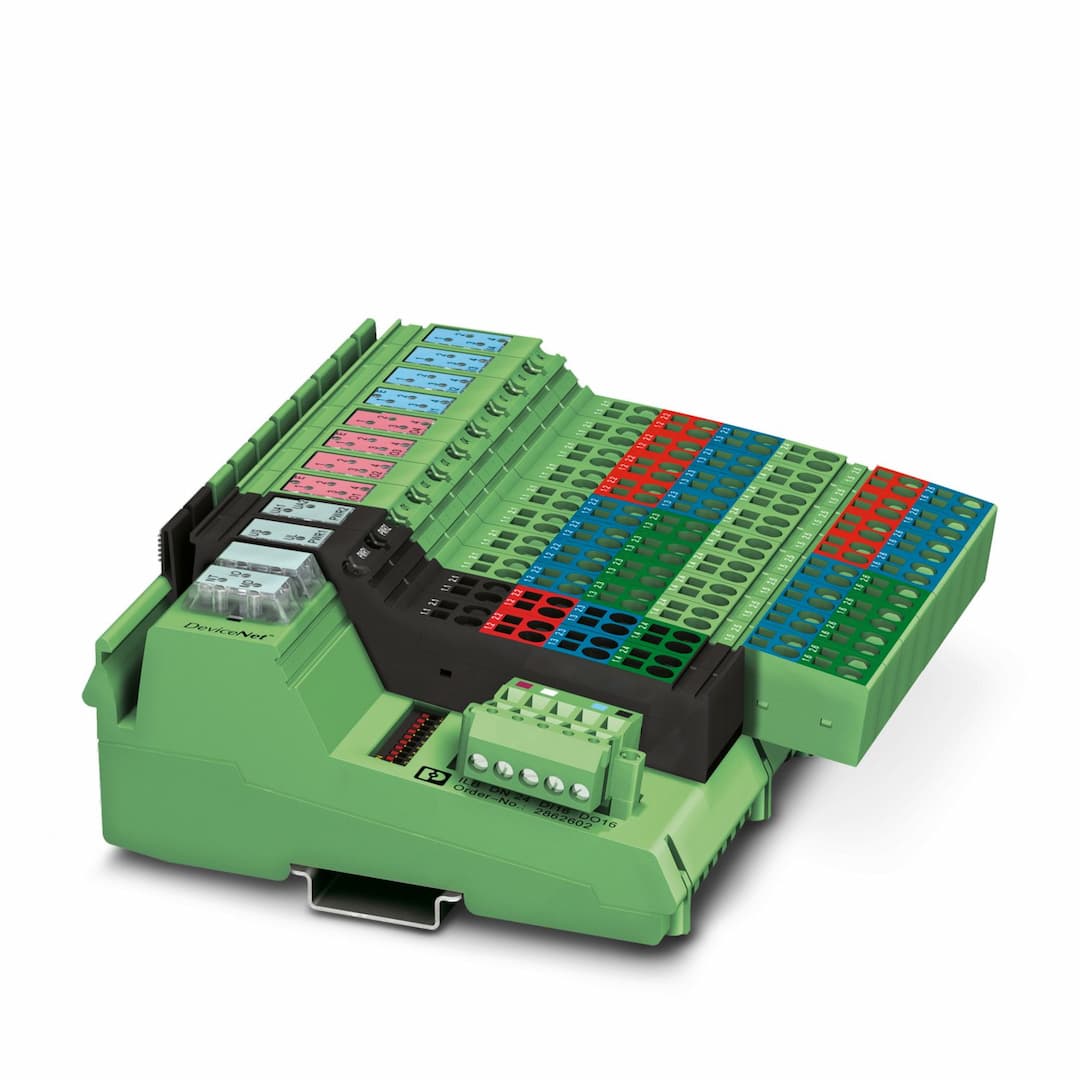

ILB DN 24 DI16 DO16
Product ID:18189
Updated: 2026/8/3
Key Features
- 1High-Performance Digital I/O Module: The ILB DN 24 DI16 DO16 offers 16 digital inputs and 16 digital outputs, each with a 24 V DC supply and 500 mA current capacity.
- 2DeviceNet Interface Compatibility: Designed for seamless integration with DeviceNet systems, ensuring efficient data transmission and control.
- 3Durable Construction: Built with a robust IP20 degree of protection, suitable for harsh industrial environments.
- 4Easy Installation: Mounts on DIN rail or NS 35/7,5, making it easy to integrate into existing control systems.
- 5Reliable Connectivity: Features TWIN COMBICON connectors for secure and reliable connections in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 156 mm | Height | 141 mm |
| Depth | 57 mm | Note on dimensions | Specfications with connectors |
| Note on application | Only for industrial use | No. of channels | 1 |
| Connection method | TWIN COMBICON | Number of positions | 10 |
| Transmission speed | 125 kbps ... 500 kbps | Input name | Digital inputs |
| Description of the input | EN 61131-2 type 1 | Number of inputs | 16 |
| Connection method | Spring-cage connection | Connection technology | 3-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Nominal input current at U | 5 mA | Total sensor current | max. 2 A |
| Typical response time | approx. 500 µs | Protective circuit | Short-circuit protection, overload protection of the sensor supply |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 3-conductor | Number of outputs | 16 |
| Protective circuit | Short-circuit and overload protection | Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA | Maximum output current per module / terminal block | 8 A |
| Maximum output current per module | 8 A | Nominal output voltage | 24 V DC |
| Nominal load, inductive | 12 VA | Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W | Product type | I/O component |
| Product family | Inline | Type | Block design
Inline |
| Scope of delivery | including Inline connector | No. of channels | 32 |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 25 mA | Current draw | 2 A |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
| Current draw | 25 mA | Current draw | 2 A |
| Test voltage: I/Os / logic | 500 V AC, 50 Hz, 1 min | Test voltage: I/Os / FE | 500 V AC, 50 Hz, 1 min |
| Test voltage: Logic/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) | Noise emission | Industrial environment |
| Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
