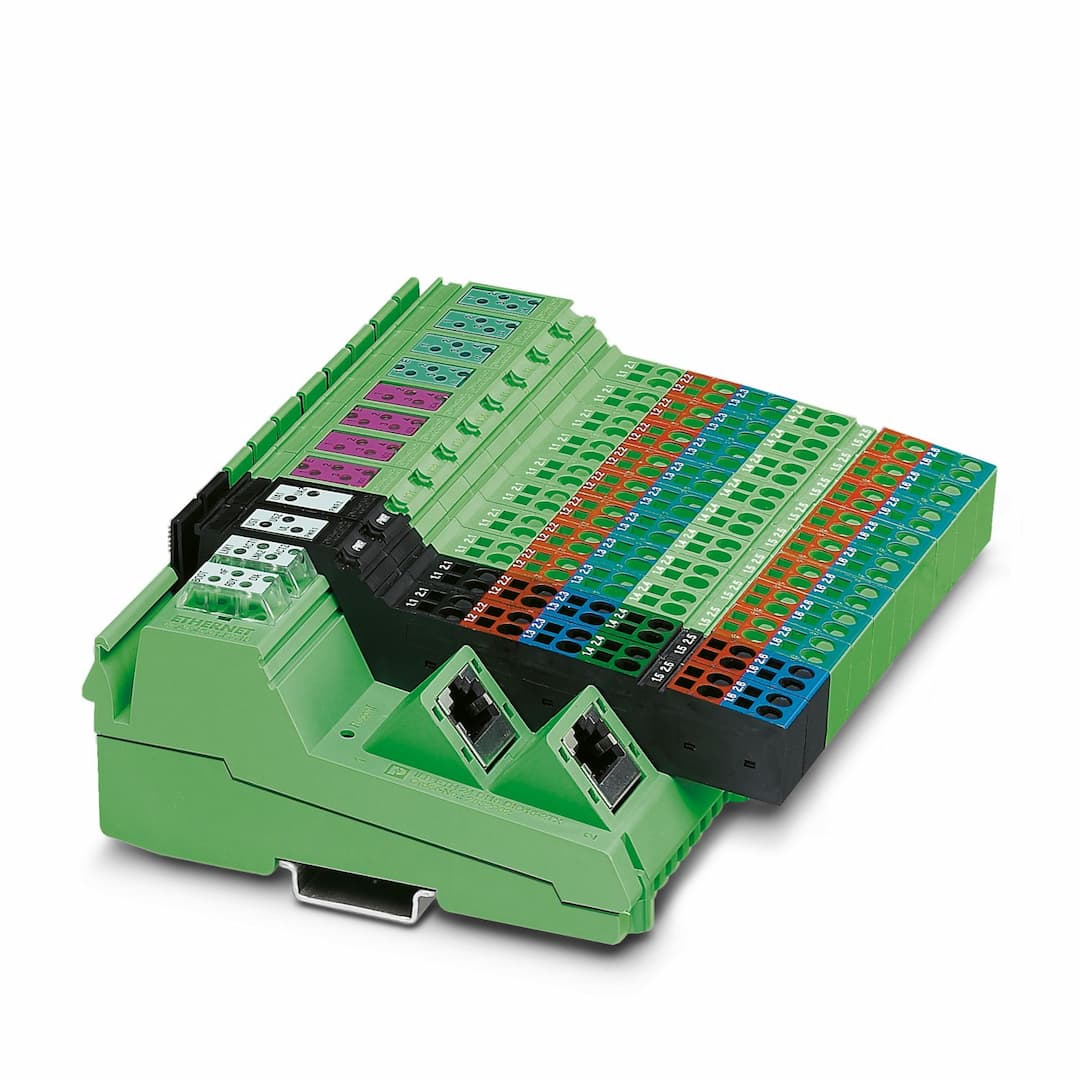

ILB PN 24 DI16 DIO16-2TX
Product ID:18645
Updated: 2026/4/5
Key Features
- 1High-Performance PROFINET Connectivity: Seamlessly integrate with industrial networks using the PROFINET protocol.
- 2Robust Digital Inputs/Outputs: 16/32 digital inputs and 16 freely adjustable outputs for versatile control.
- 324 V DC Power Supply: Reliable operation with a 24 V DC power supply, suitable for industrial environments.
- 4Compact Design: Angled 45° RJ45 sockets and DIN rail mounting for space-efficient installation.
- 5Enhanced Safety Features: Short-circuit and overload protection for digital outputs, ensuring safe operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 156 mm | Height | 141 mm |
| Depth | 57 mm | Note on dimensions | Specfications with connectors |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | No. of channels | 2 |
| Connection method | RJ45 jack | Transmission speed | 10/100 Mbps (with auto negotiation) |
| Transmission physics | Copper | Device function | PROFINET device |
| Specification | Version 1.1 | Update rate | min. 1 ms |
| Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
| Number of inputs | 32 (16 fixed and 16 freely selectable) | Connection method | Spring-cage connection |
| Connection technology | 3-conductor | Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input voltage U | 24 V DC | Typical response time | approx. 500 µs |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply | Output name | Digital outputs |
| Connection method | Spring-cage connection | Connection technology | 2-conductor |
| Number of outputs | 16 | Protective circuit | Short-circuit and overload protection |
| Maximum output current per channel | 500 mA | Nominal output voltage | 24 V DC |
| Nominal load, inductive | 12 VA (1.2 H, 50 Ω) | Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W (48 Ω) | Product type | I/O component |
| Product family | Inline | Type | Block design
Inline |
| Scope of delivery | including Inline connector | No. of channels | 32 |
| Diagnostics messages | Short-circuit or overload of the digital outputs Message in the diagnostics register
Short-circuit, sensor supply Message in the diagnostics register
Undervoltage Power supply for sensors Message in the diagnostics register | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 70 mA |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
| Current draw | 70 mA | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | max. 85 % (non-condensing) |
| Noise emission | Industrial environment | Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
