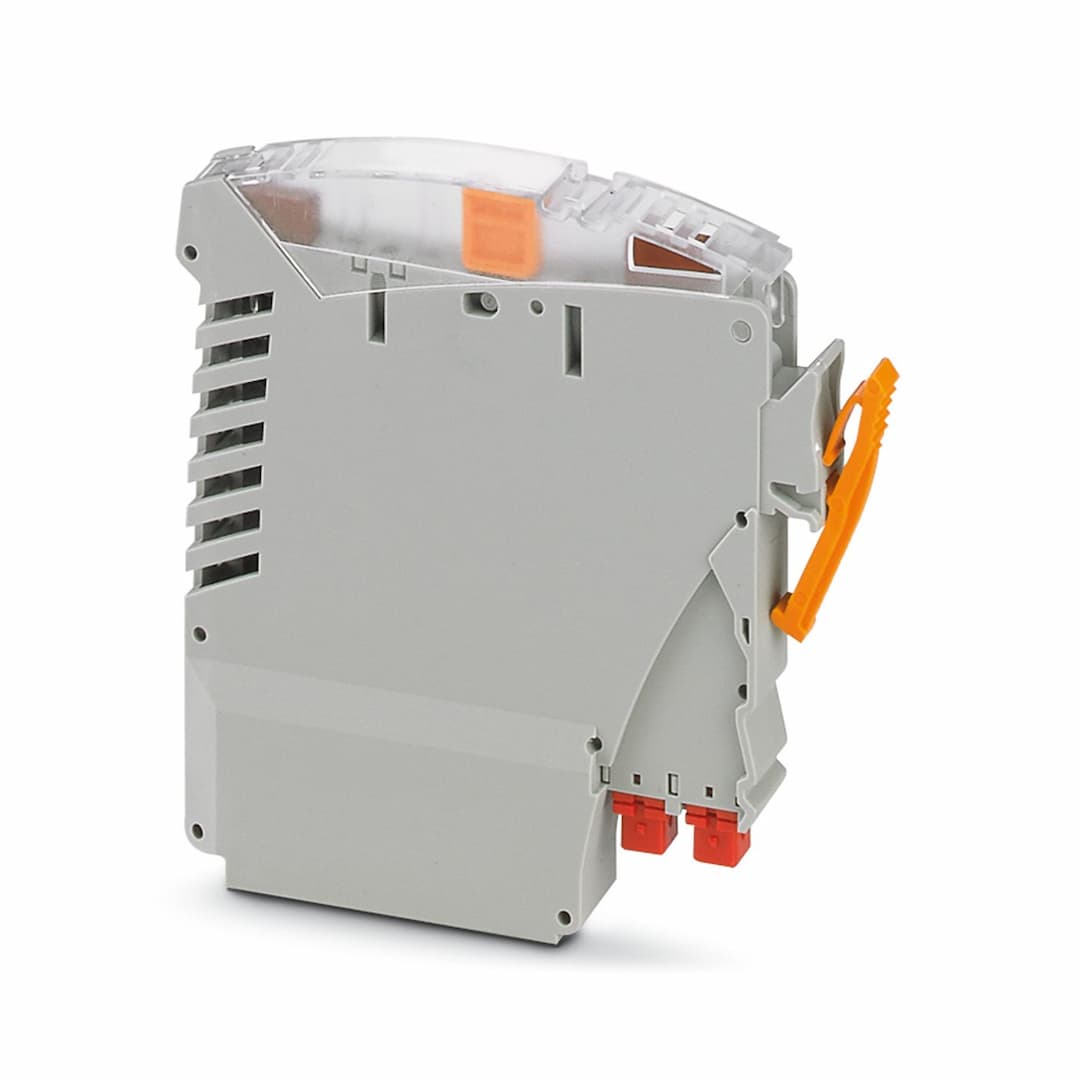

IOA AI/AO/BFI/DS/0.5A/EX
Product ID:17483
Updated: 2026/7/12
Key Features
- 1Designed with robust components to ensure continuous operation in harsh environments.
- 2Supports a wide range of input/output signals including digital, analog, and specialized formats.
- 3Utilizes cutting-edge technology for precise and efficient signal processing.
- 4Compact and plug-in mounting type for easy integration into existing systems.
- 5Meets IEC 60664 and DIN EN 50178 standards for safety and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VIP I/O-Marshalling |
| No. of channels | 1 | Operating mode | 100% operating factor |
| Article revision | 09 | Overvoltage category | II |
| Pollution degree | 2 | Max. operating voltage U | 30 V |
| Max. permissible current | 500 mA (fuse limited) | Nominal voltage U | 24 V DC |
| Max. current carrying capacity per branch | 500 mA (fuse limited) | Nominal supply voltage | 24 V DC |
| Continuous load current | 500 mA | Connection method | Pin strip |
| Number of connections | 1 | Number of positions | 13 |
| Input voltage U | 30 V | Input current I | 500 mA |
| Inductance Li | 0 mH | Capacitance Ci | 0 µF |
| Max. output voltage U | U | Max. output current I | I |
| Max. output power P | P | Status display | no |
| Status display present | Yes, if the fuse fails | Width | 10.3 mm |
| Height | 64.2 mm | Depth | 72.9 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) | Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | CSANe 21ATEX4128X | Identification | Ex nA IIC T4 Gc |
| Certificate | IECEx CSAE 21.0004X | Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | PxCIF23UKEX2906598X | Identification | Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, IIC T4 |
| Identification | Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, AEx nA IIC T4 Gc
Ex nA IIC T4 Gc | Standards/regulations | IEC 60664
DIN EN 50178 |
| Mounting position | any |
Specifications may be subject to change without notice
