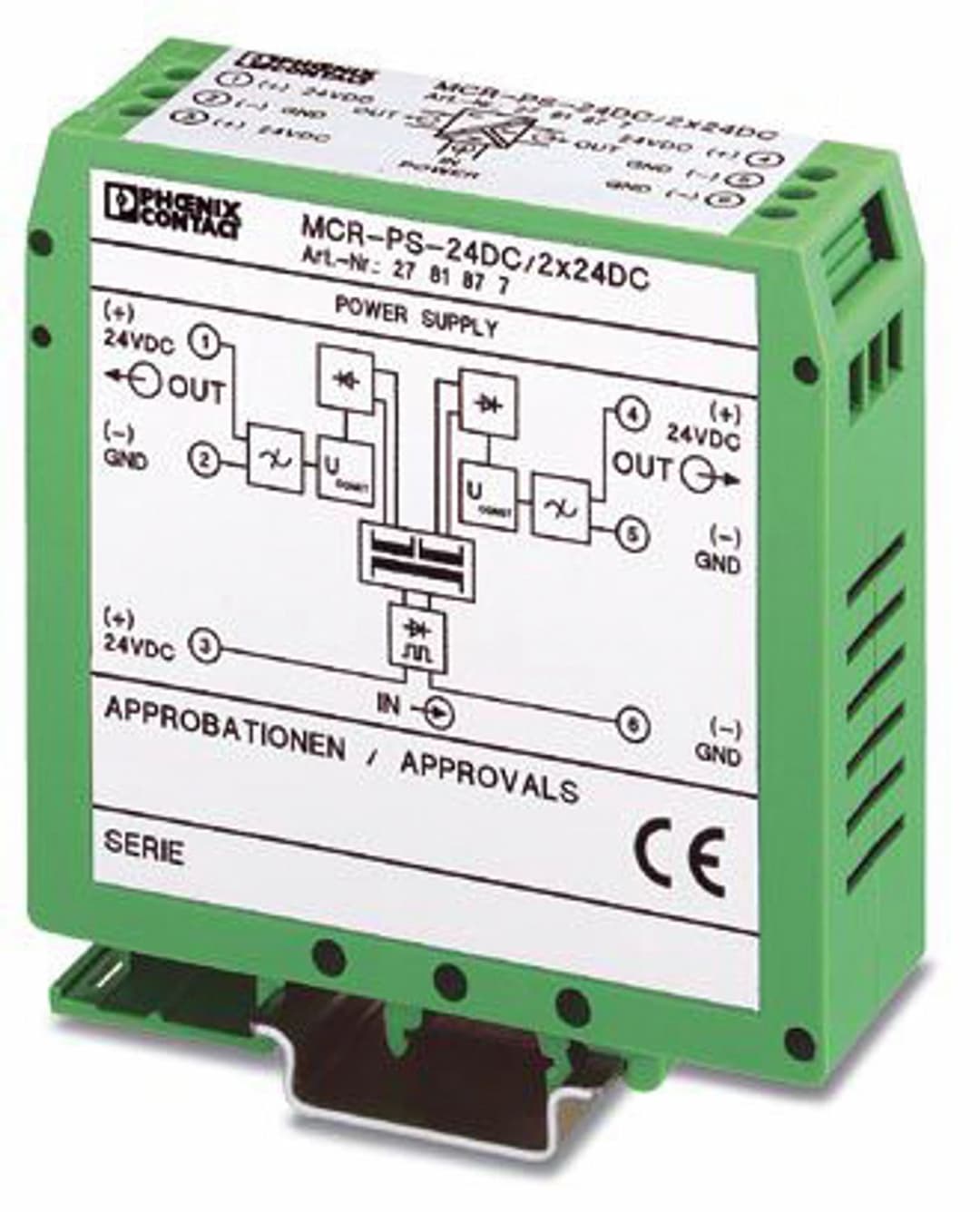

MCR-PS- 24DC/2X24DC
Product ID:23596
Updated: 2026/7/26
Key Features
- 1Ensures electrical safety by isolating the input and output.
- 2Operates with input voltage 21.6V DC to 26.4V DC, providing flexibility.
- 3Delivers 2x30mA per output, meeting high current demands.
- 4Maintains a residual ripple of ≤50mVPP for stable output voltage.
- 5Measures 25mm x 85.5mm x 79mm, making it space-efficient.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 24 V DC ±10 % | Nominal input voltage range | 24 V DC |
| Input voltage range | 21.6 V DC ... 26.4 V DC | Wide-range input | yes |
| Voltage type of supply voltage | DC | Current consumption | approx. 100 mA |
| Nominal output voltage | 24 V DC (2x) | Nominal output current (I | 30 mA (2x) |
| Residual ripple | ≤ 50 mV | Short-circuit-proof | yes |
| Output power | 1.5 W | Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm | Screw thread | M3 |
| Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
| Number of phases | 1.00 | Test voltage output/output | 1.5 kV AC |
| Test voltage input/output | 2.5 kV AC | Product type | DC/DC converters |
| Operating mode | 100% operating factor | Width | 25 mm |
| Height | 85.5 mm | Depth | 79 mm |
| Assembly note | any | Mounting position | any |
| With protective coating | no | Housing material | Plastic |
| Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
| Standards/regulations | IEC 664
IEC 664 A
DIN VDE 0110-1 |
