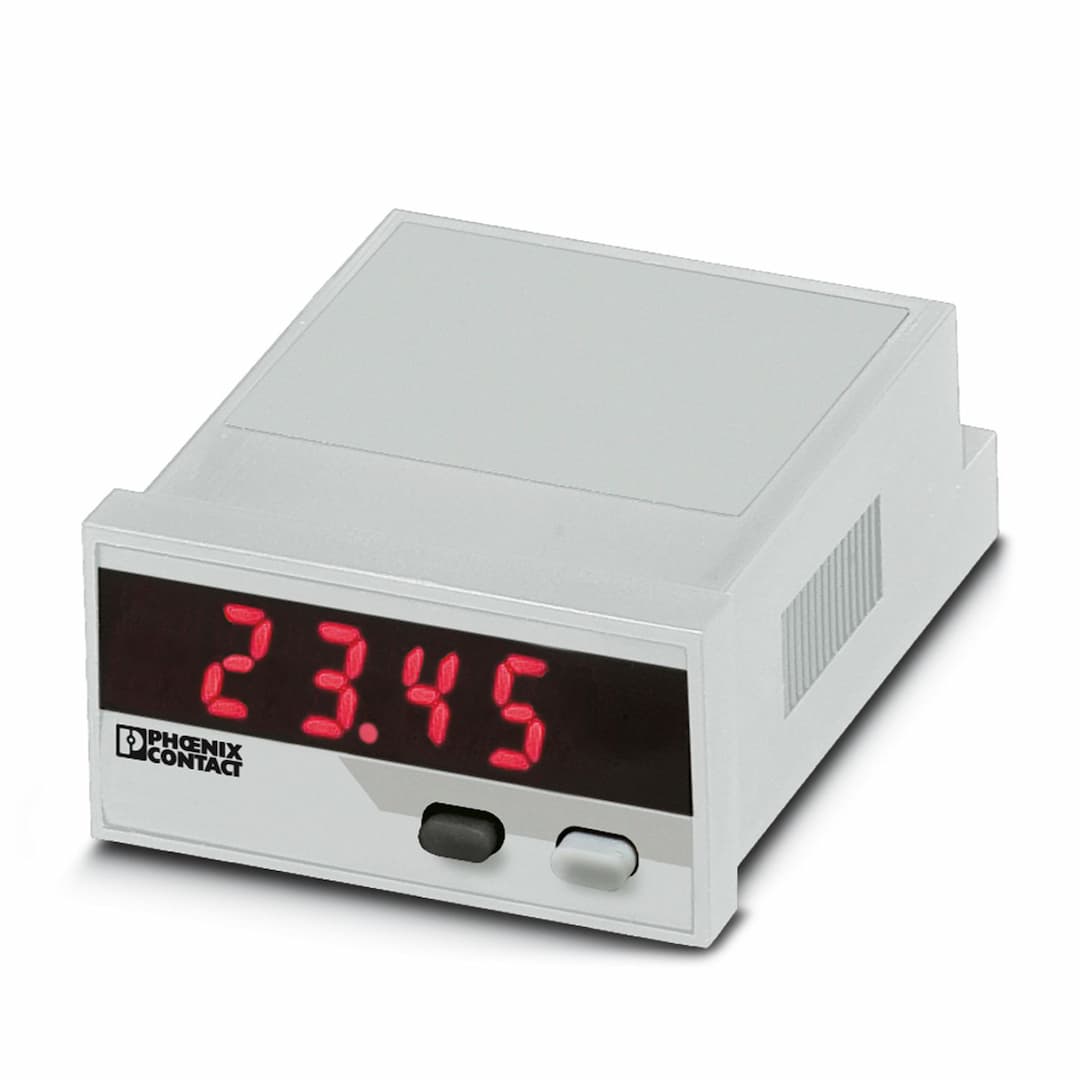

MCR-SL-D-SPA-UI
Product ID:22001
Updated: 2026/7/12
Key Features
- 1Automatic setpoint definition with hold function and 20 interpolation points.
- 2Manual setpoint definition via direct input for precise control.
- 3Flexible adjustable signal ranges of 0-12 V or 0-24 mA.
- 4Data backup in the event of power failure for reliability.
- 5Electrical isolation between output and supply for safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Digital displays | Configuration | Keyboard |
| Article revision | 03 | Configuration | Keyboard |
| Maximum power dissipation for nominal condition | 0.8 W (20 mA, 500 Ω) | Test voltage output/power supply | 500 V AC (50 Hz, 60 s) |
| Maximum temperature coefficient | 0.02 %/K | Maximum transmission error | < 0.2 % ((full-scale) at rated voltage) |
| Supply voltage range | 10 V DC ... 30 V DC | Power consumption | 1 W (With 24 mA/12 V) |
| Display | 7-segment, 8 mm, red | Number of positions displayed | 4.00 |
| Switching level "1" signal | 4 V DC ... 30 V DC | Switching level "0" signal | 0 V DC ... 2 V DC |
| Measuring rate | 0.1s | Voltage output signal | 0 V ... 12 V |
| Current output signal | 0 mA ... 24 mA | Load/output load voltage output | ≥ 2 kΩ |
| Load/output load current output | ≤ 500 Ω (up to 20 mA)
≤ 400 Ω (> 20 mA) | Ripple | ≤ 10 mV |
| Number of positions displayed | 4 | Display | 7-segment LED; 8 mm; red |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 26 ... 16 |
| Width | 48 mm | Height | 24 mm |
| Depth | 68 mm | Housing material | Macrolon 2405 |
| Degree of protection | IP65 (Front) | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Certificate | CE-compliant |
| Identification | UL 863 | Noise immunity | EN 61000-6-2
EN 61000-4-2 |
| Noise emission | EN 55011 / class B | Mounting type | Panel mount |
Specifications may be subject to change without notice
