MCR-SL-D-U-I
Product ID:19650
Updated: 2026/7/12
Key Features

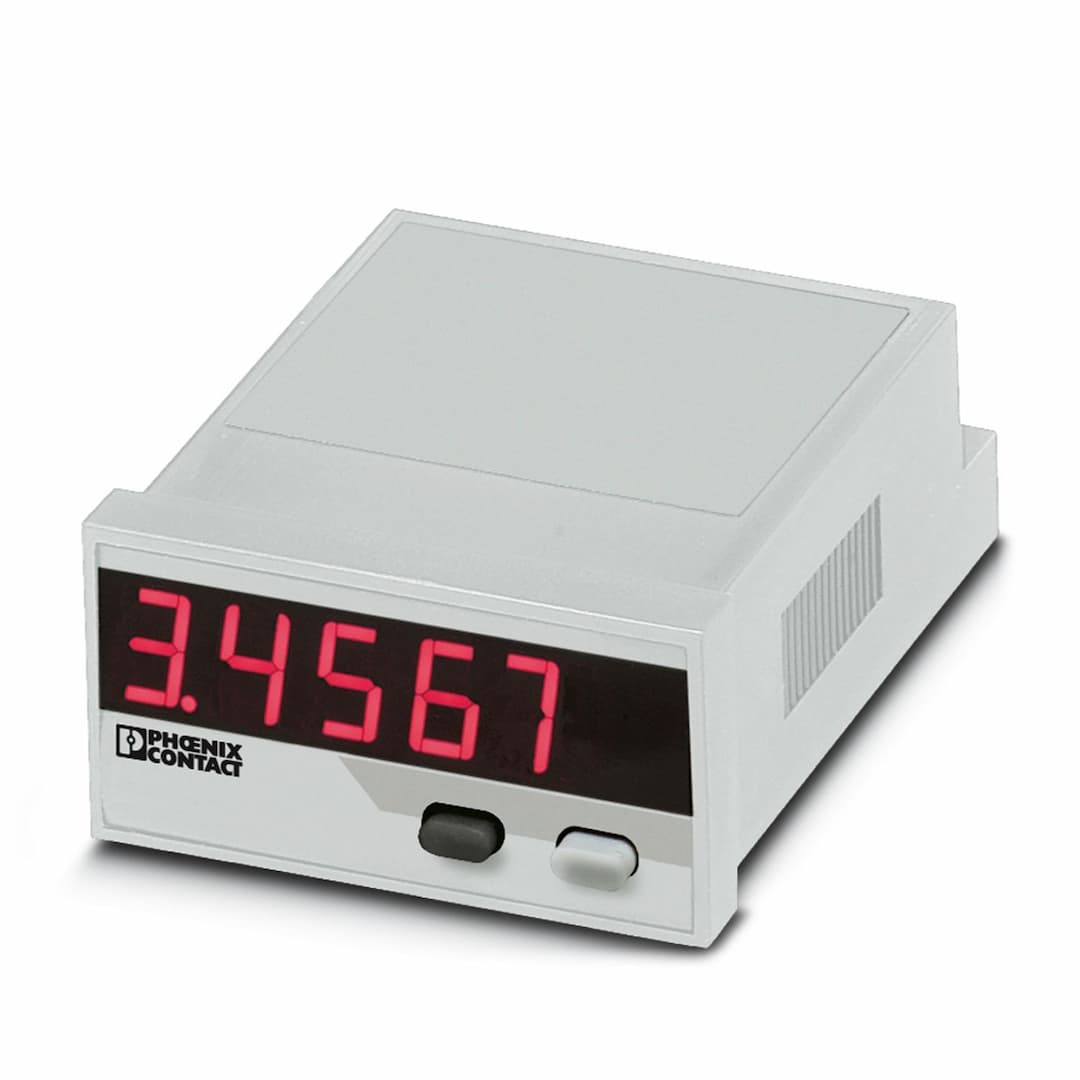

- 1Compact design: 48 x 24 mm display with 8 mm LED, 7-segment display.
- 2Versatile input: Measures 0 to 10 V and 0 to 20 mA standard analog signals.
- 3Electrical isolation: Ensures safe operation in various environments.
- 4Programmable display: Freely programmable decimal point display for customization.
- 5Durable construction: Made from Macrolon 2405, with IP65 protection against dust and water.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Digital displays | Configuration | Keyboard |
| Article revision | 03 | Configuration | Keyboard |
| Maximum power dissipation for nominal condition | 1.46 W | Test voltage input/power supply | 500 V |
| Maximum temperature coefficient | < 0.07 %/K | Maximum transmission error | ± 0.1 % (of final value) |
| Supply voltage range | 10 V DC ... 30 V DC | Max. current consumption | 50 mA |
| Power consumption | ≤ 1.5 W | Voltage input signal | 0 V ... 10 V
2 V ... 10 V |
| Max. voltage input signal | 30 V DC | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
| Max. current input signal | 50 mA | Switching level "1" signal | 4 V DC ... 30 V DC |
| Switching level "0" signal | 0 V DC ... 2 V DC | Input resistance of voltage input | > 1 MΩ |
| Input resistance current input | approx. 100 Ω with 5 mA / approx. 70 Ω with 20 mA | Resolution inputs (voltage) | 1 mV |
| Resolution inputs (current) | 2 µA | System hum suppression | Digital filtering 50/60 Hz |
| Input latch signal | Display stop | Measuring rate | 0.1s |
| D/A converter resolution | 14 bit | Number of positions displayed | 5 |
| Display | 7-segment LED; 8 mm; red | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 | Width | 48 mm |
| Height | 24 mm | Depth | 68 mm |
| Housing material | Macrolon 2405 | Degree of protection | IP65 (Front) |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Certificate | CE-compliant | Identification | UL 863 |
| Noise immunity | EN 61000-6-2
EN 61000-4-2 | Noise emission | EN 55011 / class B |
| Mounting type | Panel mount |
Specifications may be subject to change without notice
