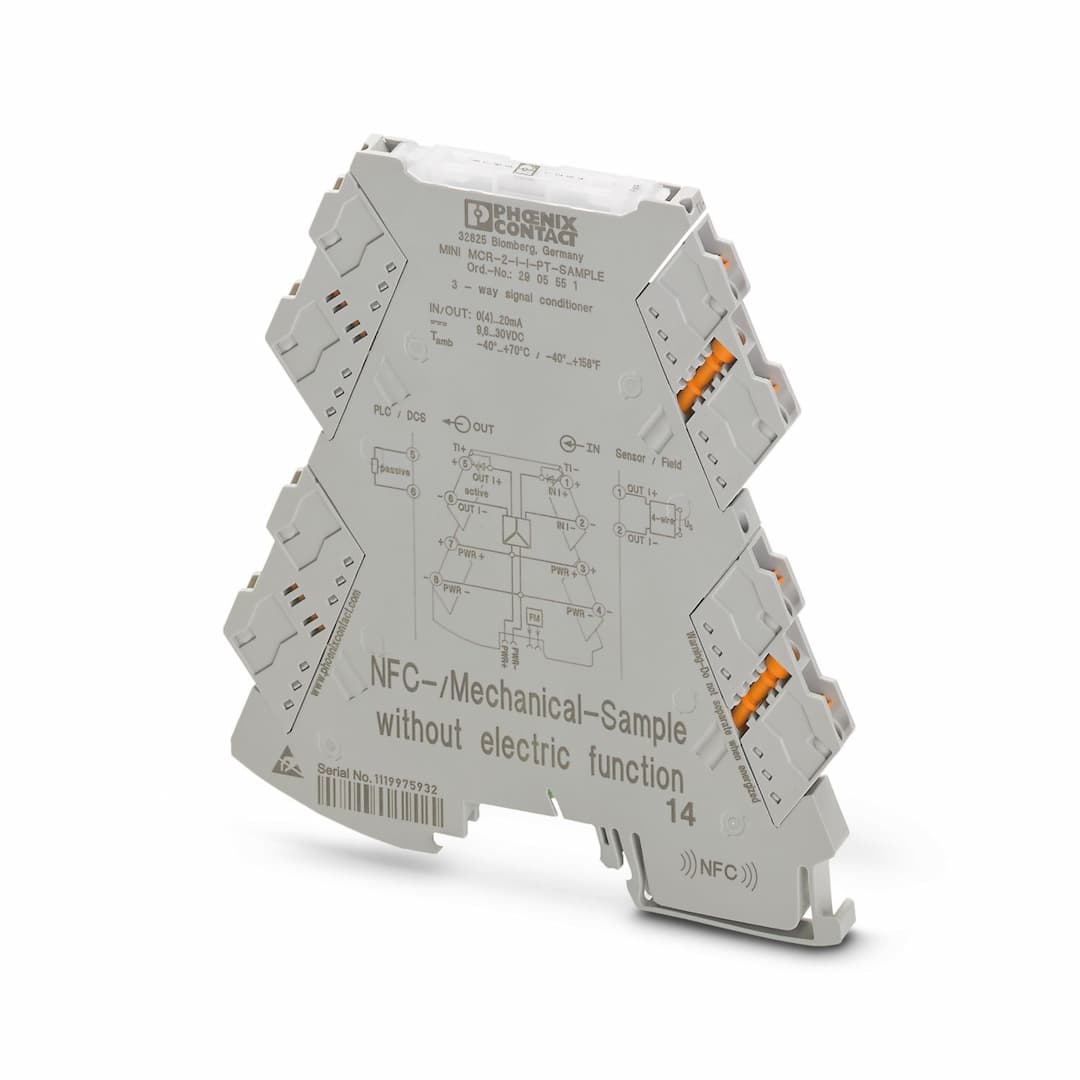

MINI MCR-2-I-I-PT-SAMPLE
Product ID:18521
Updated: 2026/8/2
Key Features
- 1Explore the NFC/mechanical sample of the MINI MCR-2-I-I-PT signal conditioner, perfect for testing and demonstration.
- 2Features a 3-way signal conditioner with plug-in connection technology for electrical isolation of analog signals.
- 3This sample is non-functional, designed for mechanical and NFC testing without any electrical function.
- 4Perfect for prototyping and testing purposes, ensuring compatibility with the full MINI MCR-2-I-I-PT model.
- 5Includes a detailed 3D view for thorough inspection and understanding of the signal conditioner's design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Sample without function | Article revision | 06 |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 (flexible) | Width | 6.2 mm |
| Height | 109.81 mm | Depth | 119.2 mm |
| Color | gray (RAL 7042) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
